BOLT TORQUE
Exceptions To The Chart Above:
M12 x 100 Round Head Square Neck Bolt (20 ft-lb) (Securing Antenna to AZ/EL Cap)
M6 x 20 Hex Head Bolt (4 ft-lb) (Securing Clamp to Junction Block)
M6 x 30 Hex Head Bolt (4 ft-lb) (Securing Side Feed Legs to Junction Block and Antenna)
DIN Class 5.6
M6 M8 M12 M16 M20 M22
5 N-m 15 N-m 51 N-m 125 N-m 168 N-m 230 N-m
4 ft-lb 11 ft-lb 32 ft-lb 38 ft-lb 92 ft-lb 124 ft-lb
DIN Class 8.8
M8 M12 M16
24 N-m 90 N-m 203 N-m
18 ft-lb 66 ft-lb 150 ft-lb

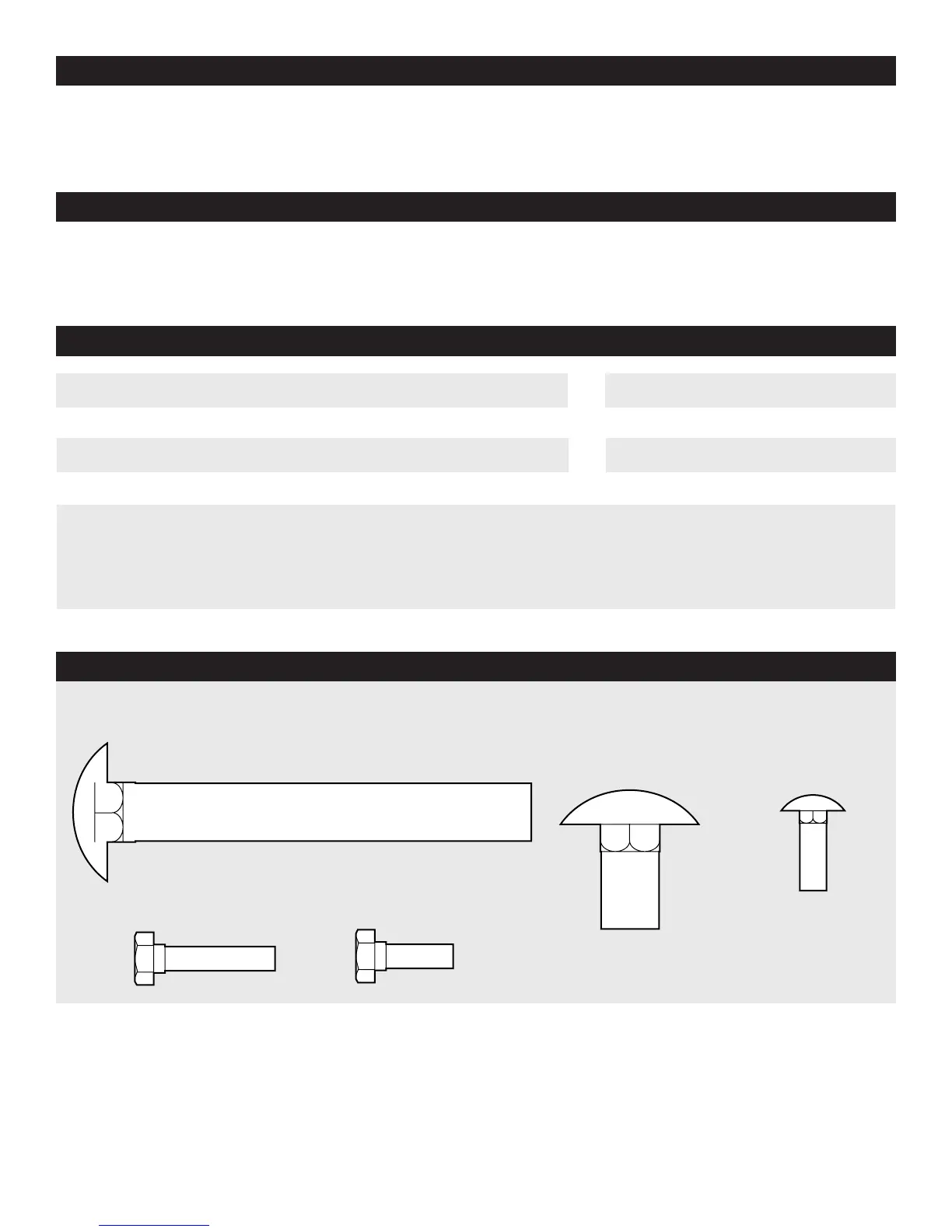

HARDWARE SORTER
ITEM 2
M12 x 100 mm
Round Head
Square Neck Bolt
ITEM 17
M12 x 25 mm
Round Head
Square Neck Bolt
ITEM 38
M6 x 20 mm
Round Head
Square Neck Screw
ITEM 26
M6 x 20 mm
Hex Head
Cap Screw
ITEM 31
M6 x 30 mm
Hex Head
Cap Screw
Note: Hardware illustrations are actual size.
Place hardware on top of illustration to identify.
Shipping cartons should be unpacked and contents checked for damaged or missing parts. Should there be any parts
that are damaged or missing, contact Skyware Global at the location on the front of this manual.
UNPACKING AND INSPECTION
This manual covers the assembly and installation of the Skyware Global 1.8 m SMC offset antenna system. Read this
manual thoroughly before beginning assembly. For best results in the assembly process, perform each step in the same
sequence as listed in this manual.
