6
FEED & FEED LEGS INSTALLATION
Refer to Manufacturer’s Instructions packed with feed to as-
semble and install feed assembly.
Insert bottom feed leg (33) into clamp (39) and align hole in
feed leg with alignment pin inside clamp. Install bottom feed
leg (33) with clamp (39) onto bottom edge of antenna, se-
curing with two M6 x 20mm round head square neck bolts,
lock washers and hex nuts (35, 36 and 38). Do not tighten.
NOTE: Bottom feed leg is the one with open
round ends on both ends and a lance on one
end and alignment hole in opposite end. Insert
end with hole into bottom feed leg clamp (39).
Install side feed legs (30) to sides of antenna (37) as shown
in Figure 1.2. Secure with M6 x 20mm hex bolt, lock
washer and hex nut (34, 35 and 36). Do not tighten.
Insert one side feed leg (30) into junction block (29) and
secure with M6 x 30mm hex bolt and flat washer (31 and
32). Do not tighten.
Insert bottom feed leg (33) into junction block (29) until
lance on leg is engaged.
Insert opposite side feed leg (30) into junction block (29)
and secure with M6 x 30mm hex bolt and flat washer (31
and 32).
IMPORTANT: Tighten and torque hardware
securing side feed legs and bottom feed leg
to junction block and antenna to 4 ft-lbs (5.4
N-m).
Refer to Manufacturer’s Instructions to assemble and install
feed assembly.
Use bottom feed leg as conduit and route coaxial cable up
thru leg. Leave approximately 12” of length beyond junction
block. Install “F” connector onto cable for assembly to LNB.
NOTE: OTHER FEED ASSEMBLIES MAY USE DIF-
FERENT FEED LEGS. REFER TO SUPPLEMENTAL
INSTRUCTIONS PACKED WITH THE FEED LEGS.
PARTS AND HARDWARE
FIG. 3.2 - KU FEED SUPPORT LEGS
NO. DESCRIPTION QTY.
28 CLAMP 1
29 JUNCTION BLOCK 1
30 SIDE FEED LEG 2
31 HEX HD BOLT M6 X 30mm 2
32 FLAT WASHER,1/4” x 3/4” O.D., S.S. 2
33 BOTTOM FEED LEG 1
34 HEX BOLT M6 x 20mm 2
35 LOCK WASHER, M6, S.S. 4
36 HEX NUT, M6, S.S. 4
NO. DESCRIPTION QTY.
38 RD HD-SQ NK BOLT, M6 x 20mm, S.S. 2
39 CLAMP, BOTTOM FEED LEG 1
*
*
*Supplied with Feed Assembly

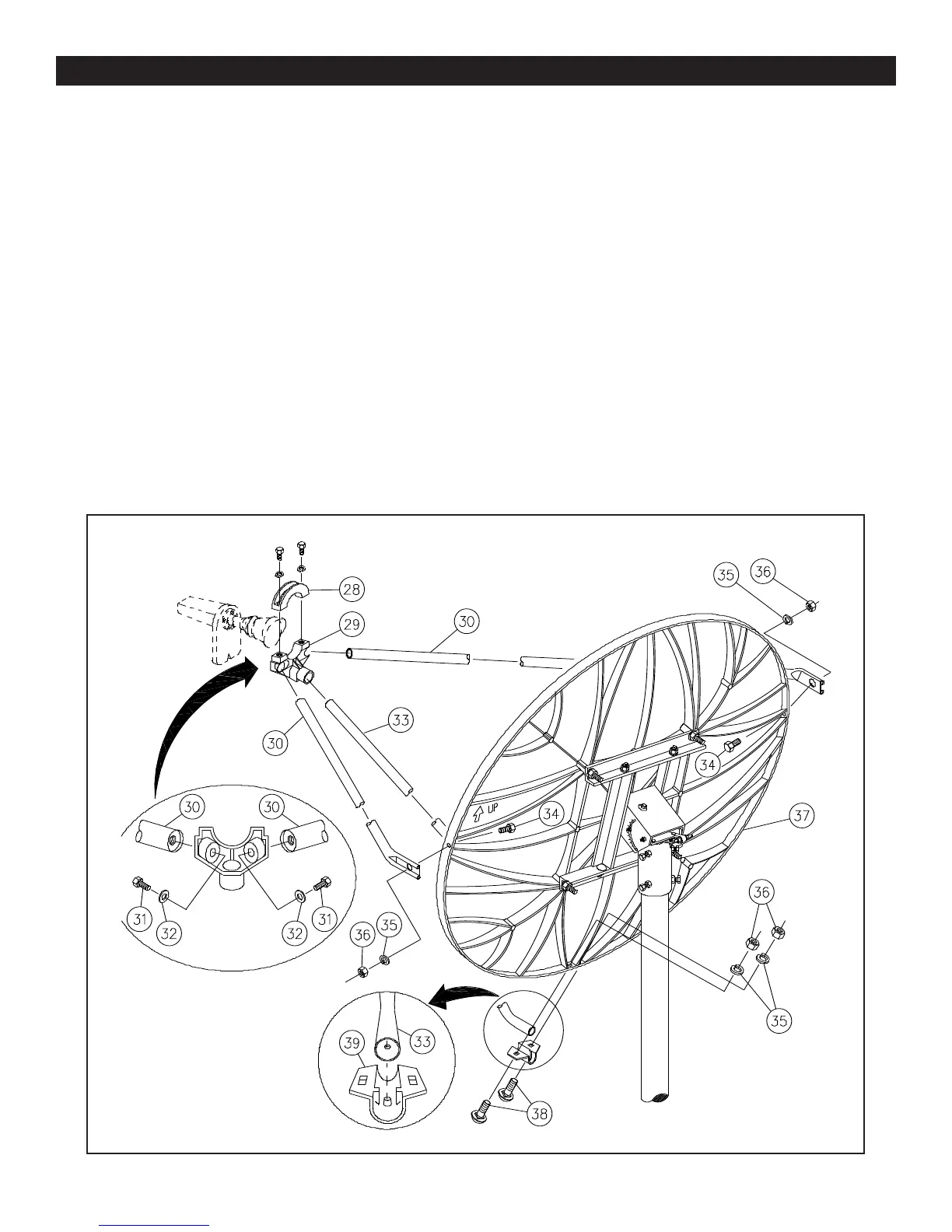

FIG. 1.2 - INSTALLING FEED AND FEED SUPPORT LEGS TO ANTENNA
