Skyware Global 180 - GROUNDING; TYPICAL ELECTRICAL GROUNDING FOR ANTENNA GROUND POLE; GROUNDING FEED CABLES

GROUNDING
ALL INSTALLATIONS TO CONFORM TO
THE LATEST ISSUE OF THE
NATIONAL ELECTRIC CODE.
8
Ground pole, antenna mount assembly and feed cables must be grounded in accordance with current National Electric Code
and local electric codes to protect from surges due to nearby lightning strikes.
Clamps that provide a solid connection between ground wire and ground source should be used.
GROUNDING
ALL INSTALLATIONS TO CONFORM TO
THE LATEST ISSUE OF THE
NATIONAL ELECTRIC CODE.
Ground pole, antenna mount assembly and feed cables must be grounded in accordance with current National Electric
Code and local electric codes to protect from surges due to nearby lightning strikes.
Clamps that provide a solid connection between ground wire and ground source should be used.
GROUND WIRE
(Typical #10 AWG Copper, #8 Aluminum)
Refer to NEC Section 810 and local electric
codes for the specific area requirements.
¹⁄₄" - 20 UNC x ⁵⁄₈"
HEX HEAD, TYPE "D" POINT,
SELF TAPPING SCREW
GROUND LUG
¹⁄₄" EXTERNAL TOOTH
LOCK WASHER
Drill hole through one wall with
⁷⁄₃₂" (5.5mm) Dia. twist drill.
Apply sealant here, after
assembly, to improve
corrosion resistance.
GROUND POLE
REF
10"-12"
38"
APPROX.

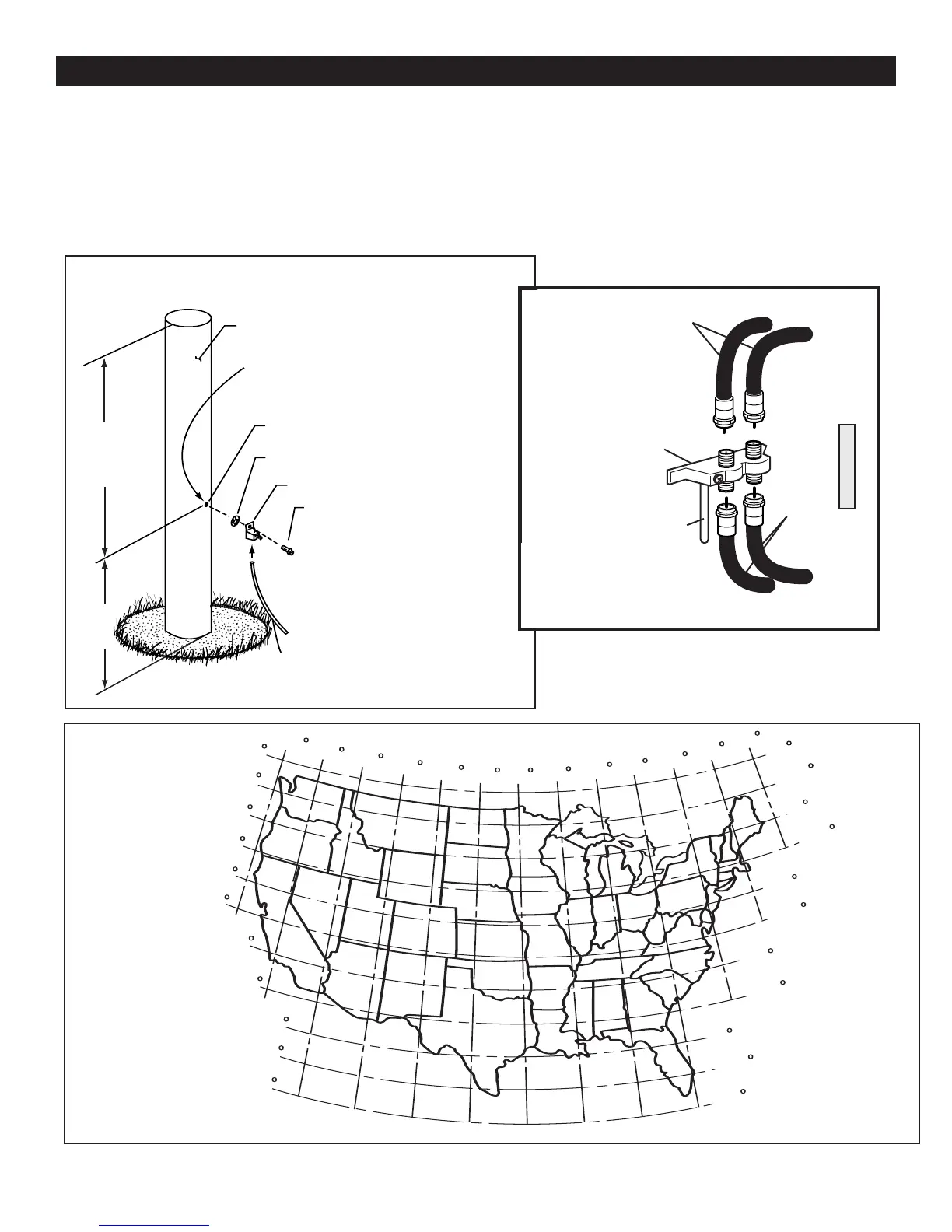

TYPICAL ELECTRICAL GROUNDING
FOR ANTENNA GROUND POLE
50
125
120
115
110
105
100
95
90
85
80
75
70
65
50
47.5
45
42.5
40
37.5
35
32.5
30
27.5
25
47.5
45
42.5
40
37.5
35
32.5
30
27.5
25
LATITUDE/LONGITUDE CHART
GROUNDING FEED CABLES
Ground Wire
(NEC Section
810-20)
Ground Block
(NEC Section
810-20)
Coaxial Cables (To Receiver)
Coaxial
Cables
(From LNB)
GROUNDING FEED CABLES
GROUNDING
8
ALL INSTALLATIONS TO CONFORM TO
THE LATEST ISSUE OF THE
NATIONAL ELECTRIC CODE.
Ground pole, antenna mount assembly and feed cables must be grounded in accordance with current National Electric
Code and local electric codes to protect from surges due to nearby lightning strikes.
Clamps that provide a solid connection between ground wire and ground source should be used.
GROUND WIRE
(Typical #10 AWG Copper, #8 Aluminum)
Refer to NEC Section 810 and local electric
codes for the specific area requirements.
¹⁄₄" - 20 UNC x ⁵⁄₈"
HEX HEAD, TYPE "D" POINT,
SELF TAPPING SCREW
GROUND LUG
¹⁄₄" EXTERNAL TOOTH
LOCK WASHER
Drill hole through one wall with
⁷⁄₃₂" (5.5mm) Dia. twist drill.
Apply sealant here, after
assembly, to improve
corrosion resistance.
GROUND POLE
REF
10"-12"
38"
APPROX.
TYPICAL ELECTRICAL GROUNDING
FOR ANTENNA GROUND POLE
50
125
120
115
110
105
100
95
90
85
80
75
70
65
50
47.5
45
42.5
40
37.5
35
32.5
30
27.5
25
47.5
45
42.5
40
37.5
35
32.5
30
27.5
25
LATITUDE/LONGITUDE CHART
GROUNDING FEED CABLES
