Slinex ML-17HD - Description

Wire colors
1
2
3
4
5
6
7
8
ML-17HD
5 6
Red
Black
Yellow
White
Blue
Green
Brown
Red & white
Power, +12 V
Ground (GND)
Video
Audio
N.O. relay contact
COM. relay contact
N.C. relay contact
Video camera power, +12 V

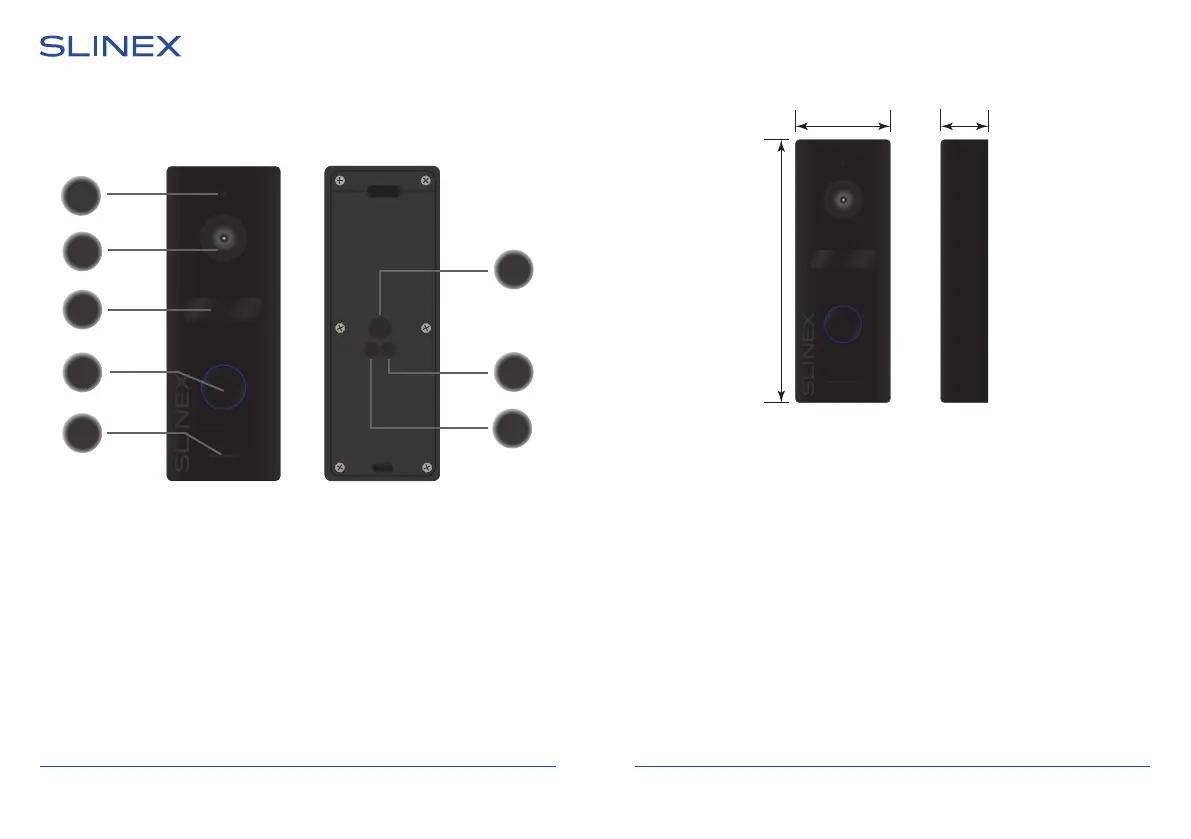

3. Description
Microphone
Video camera
Night infrared backlight
Call button
Speaker
Communication cable
Video camera mode button
Speaker volume potentiometer
133 мм
48 мм
21 мм
5
1
2
3
7
8
4
6
