Sloan ESD601A - Page 5

QUICK CONNECT
SPOUT HOSE LENGTH
SENSOR CABLE LENGTH
DECK
MOUNTED
MODELS
24”
(610 mm)
28”
(711 mm)
WALL
MOUNTED
MODELS
36”
(914 mm)
36”
(914 mm)
5

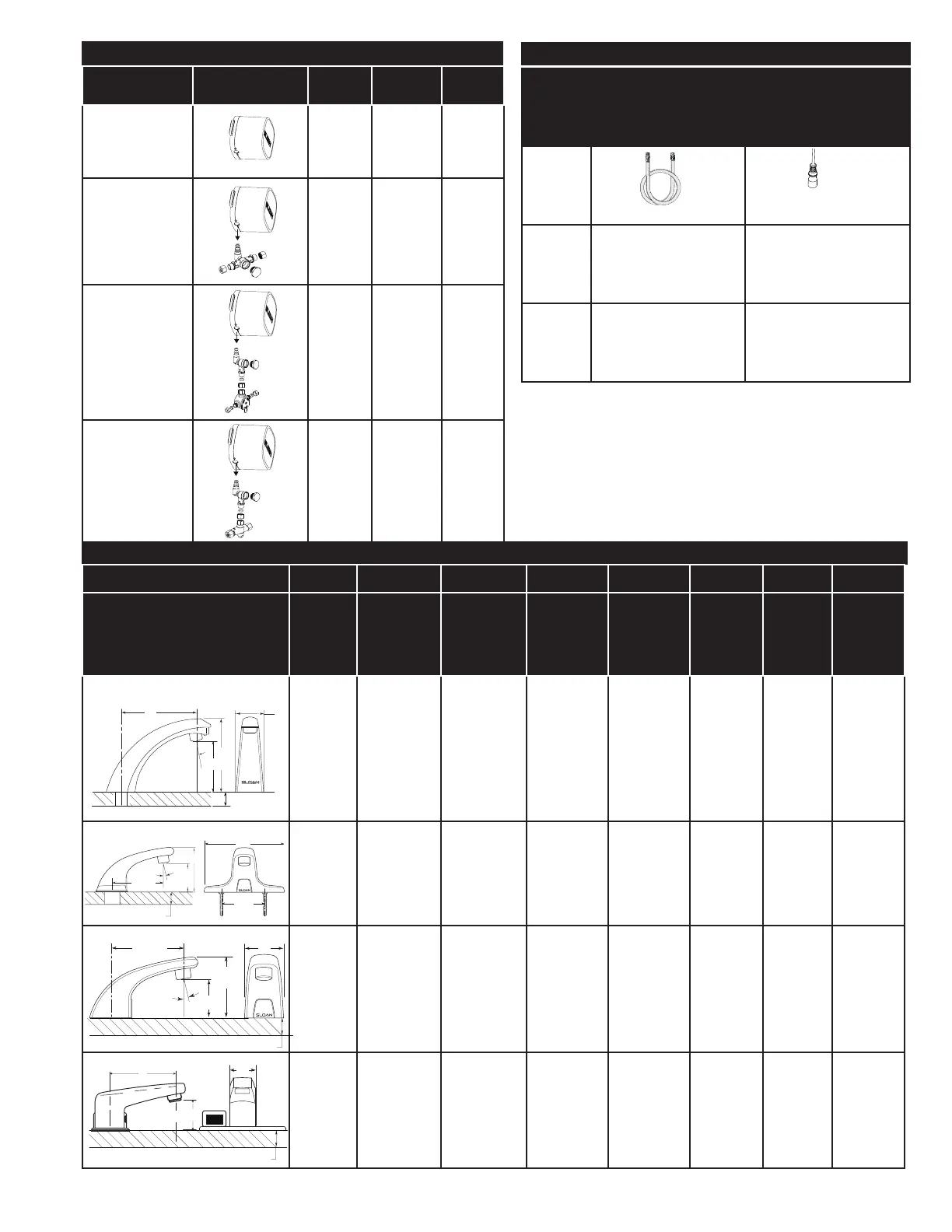

DECK MOUNTED FAUCET MODEL ROUGH-IN DIMENSIONS (WITHOUT TRIMPLATE)
A B C D E F F G H
FAUCET
MODEL
MOUNTING
HEIGHT 1
(DECK TO TOP
OF SPOUT)
HEIGHT 1
(DECK TO
CENTER OF
SPRAYHEAD)
PROJECTION 1
(CENTERLINE
OF FAUCET
TO END OF
SPOUT
PROJECTION 2
(CENTERLINE
OF FAUCET
TO CENTER OF
SPRAYHEAD)
WIDTH
(OF FAUCET)
SPRAY
ANGLE
(DEGREES)
MAX.
DECK
THICKNESS
ETF-80/EBF-85
ETF-880/EBF-187
Single
Hole
5 3/4”
(146 mm)
4 1/4”
(108 mm)
6 1/2”
(165 mm)
5 1/8”
(130 mm)
2”
(51 mm)
12°
1 1/2”
(38 mm)
ETF-600/EBF-650
4”
Centerset
3 5/8”
(92 mm)
2 3/16”
(56 mm)
4 1/2”
(114 mm)
4 1/2”
(114 mm)
6 5/16”
(160 mm)
12°
3/4”
(19 mm)
ETF-610/EBF-625
Single
3 1/2”
(89 mm)
2 1/12”
(64 mm)
4 1/2”
(114 mm)
4 1/2”
(114 mm)
2 3/16”
(56 mm)
12°
3/4”
(19 mm)
ETF-660/EBF-665
4”
Centerset
3 3/4”
(95 mm)
2 1/4”
(57 mm)
5 1/4”
(133 mm)
5 1/4”
(133 mm)
1 1/2”
(38 mm)
6°
3/4”
(19 mm)
H
G
A
B
C
E
F
H
G
B
C
E
F
H
C
E
F
B
C
B
E
F
G
H
BELOW DECK CONTROL ROUGH-IN DIMENSIONS
OPTIMA
CONTROL BOX
MODEL IMAGE HEIGHT WIDTH DEPTH
OPTIMA
CONTROL BOX
5”
(127 mm)
6”
(163 mm)
4 1/2”
(115 mm)
OPTIMA
CONTROL BOX
WITH DOUBLE
INLET FILTER TEE
6 1/4”
(159 mm)
6”
(153 mm)
4 1/2”
(115 mm)
OPTIMA
CONTROL BOX
WITH SINGLE
INLET FILTER
TEE AND BDM
(MIX60)
10 1/8”
(258 mm)
6”
(153 mm)
4 1/2”
(115 mm)
OPTIMA
CONTROL BOX
WITH SINGLE
INLET FILTER
TEE AND BDT
(MIX135)
10 3/4”
(274 mm)
6”
(153 mm)
4 1/2”
(115 mm)
QUICK CONNECT HOSE/SENSOR CABLE LENGTHS
SPOUT
HOSE
SENSOR
CABLE
