Introduction
The detector works based on detecting human body’s infrared
spectrum. When human moves within the scope (within 5 meters),
the detector receives the signal and inputs it into microprocessor
after magnication. Microprocessor continues to sample infrared
signal and send wireless signal to wireless control panel after
calculating, thus to form a security system. The product can be
applied in balconies, windows, doors and corridors etc.
Features
Accurate Detection
Digital dual-core fuzzy logic infrared control processing technology
Effectively identify interference signals from body movement signals
through intelligent analysis
Compact Design
Small in size, not much space occupation
Flexible Installation
Ceiling mounted or wall mounted for option
Energy-saving
Featured power-saving mode enables 1 year standby

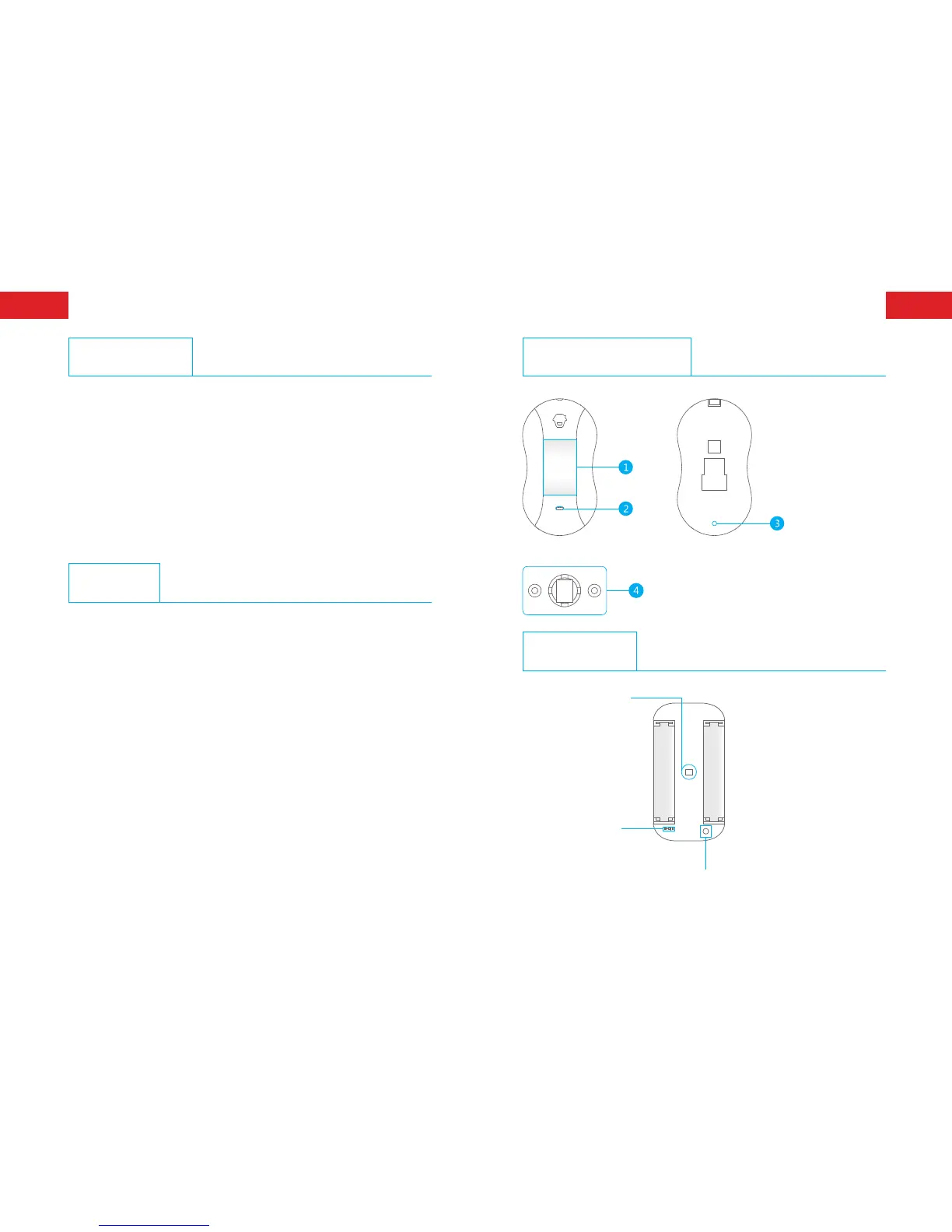

Product Overview
1. Detection Lens
2. LED Indicator
3. Test Button
4. Bracket
PCB Layout
AAA LR03 1.5V
AAA LR03 1.
5V
Infrared sensor
LED ON/OFF
Tamper switch
To Next Page
