Power supply connection

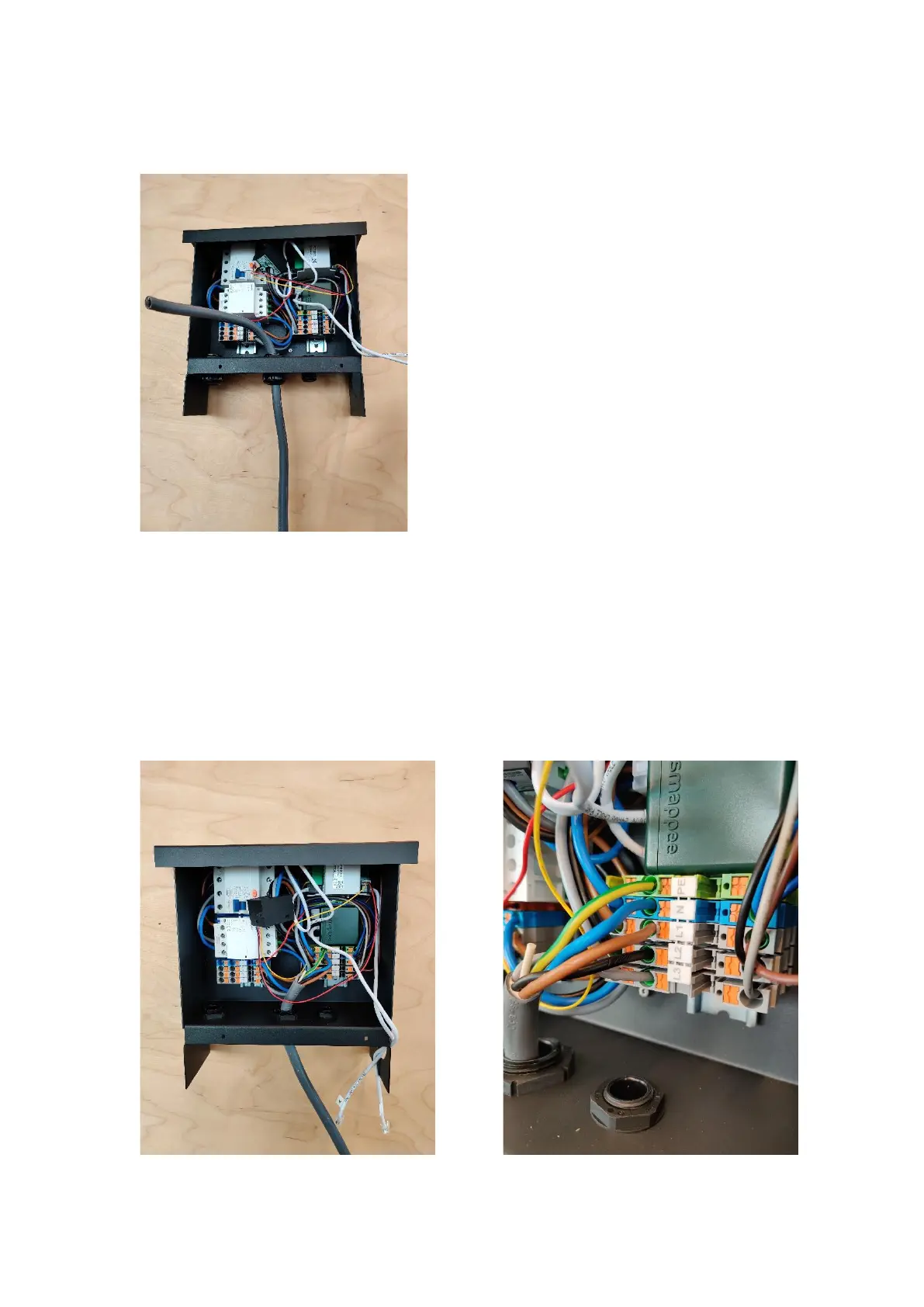

a. Slide the power cable through the middle cable gland.
b. Cut the power supply cables to adequate length and add the ferrules to each conductor if
stranded cables are used.
c. Measure the resistance of the grounding circuit and make sure that it is within acceptable limits.
If necessary, install a grounding point closer to the charging station.
d. Connect each supply cable to the terminal block. If you have a single-phase power supply, only
the L1 and N will need to be connected.
