Smappee EV Wall - Page 23

Smappee EV Wall – Installation manual - English
23

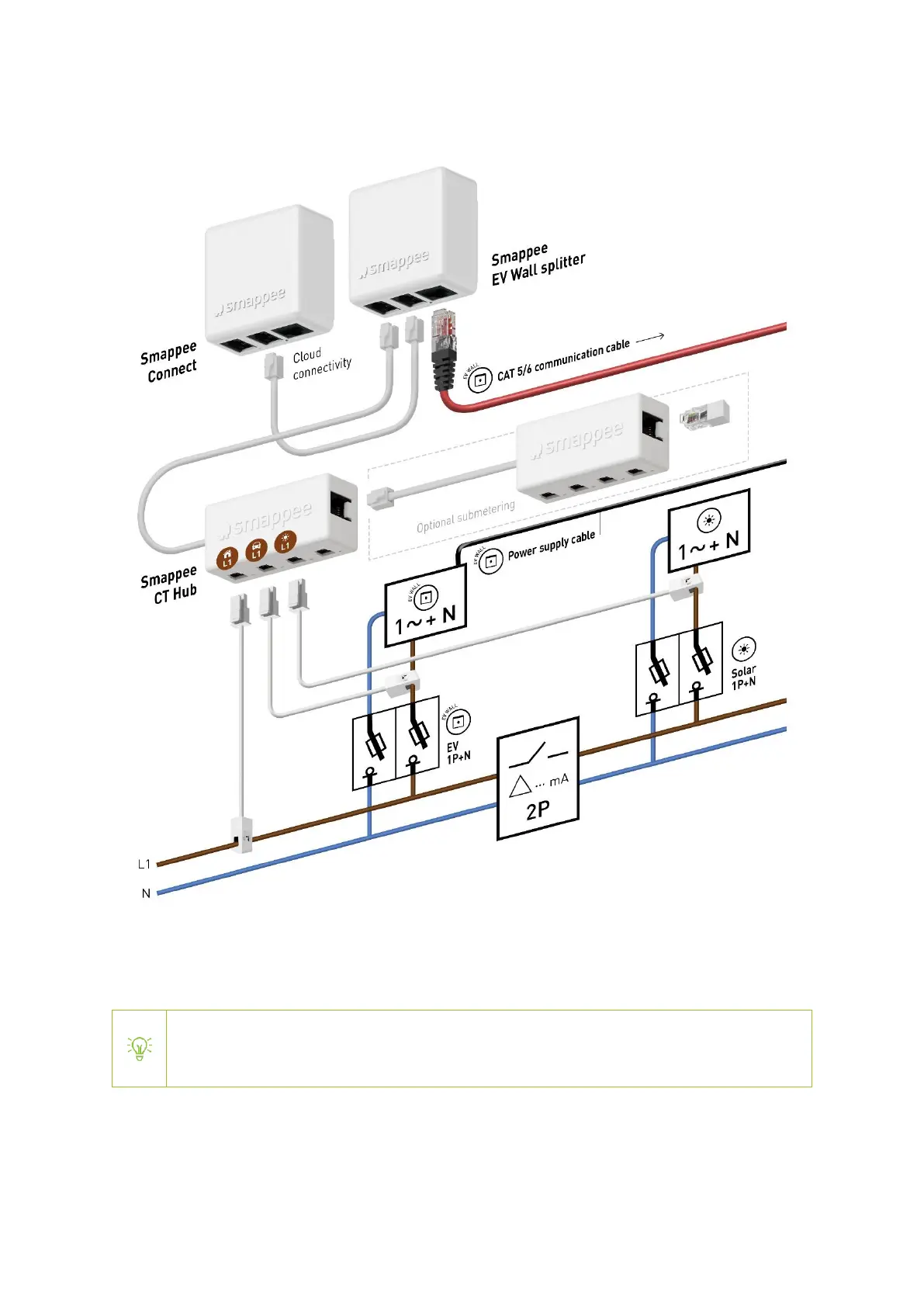

Connection diagram EV Wall – 1-phase (1P+N)
If you have purchased a three-phase version of the EV Wall, it is possible to connect it to a
single-phase installation. In this case, you must still respect the stickers and connect it as
shown in the three-phase diagram on the next page, but without L2 and L3.
