VHX-7000-H Controller User Manual V1.0 Page 5 / 24 © 2023 Smart-e (UK) Ltd

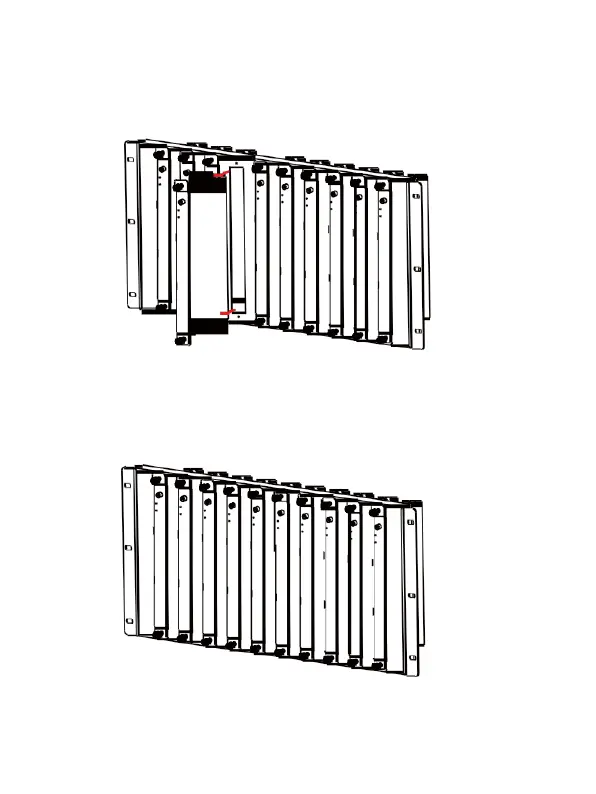

Step 2: Insert the Controller with mounting ears into a 6U rack (up to
10 units can be installed vertically), as shown in the figure below:
Step 3: Use screws to fix mounting ears on the rack to complete
the mounting, as shown in the figure below:
