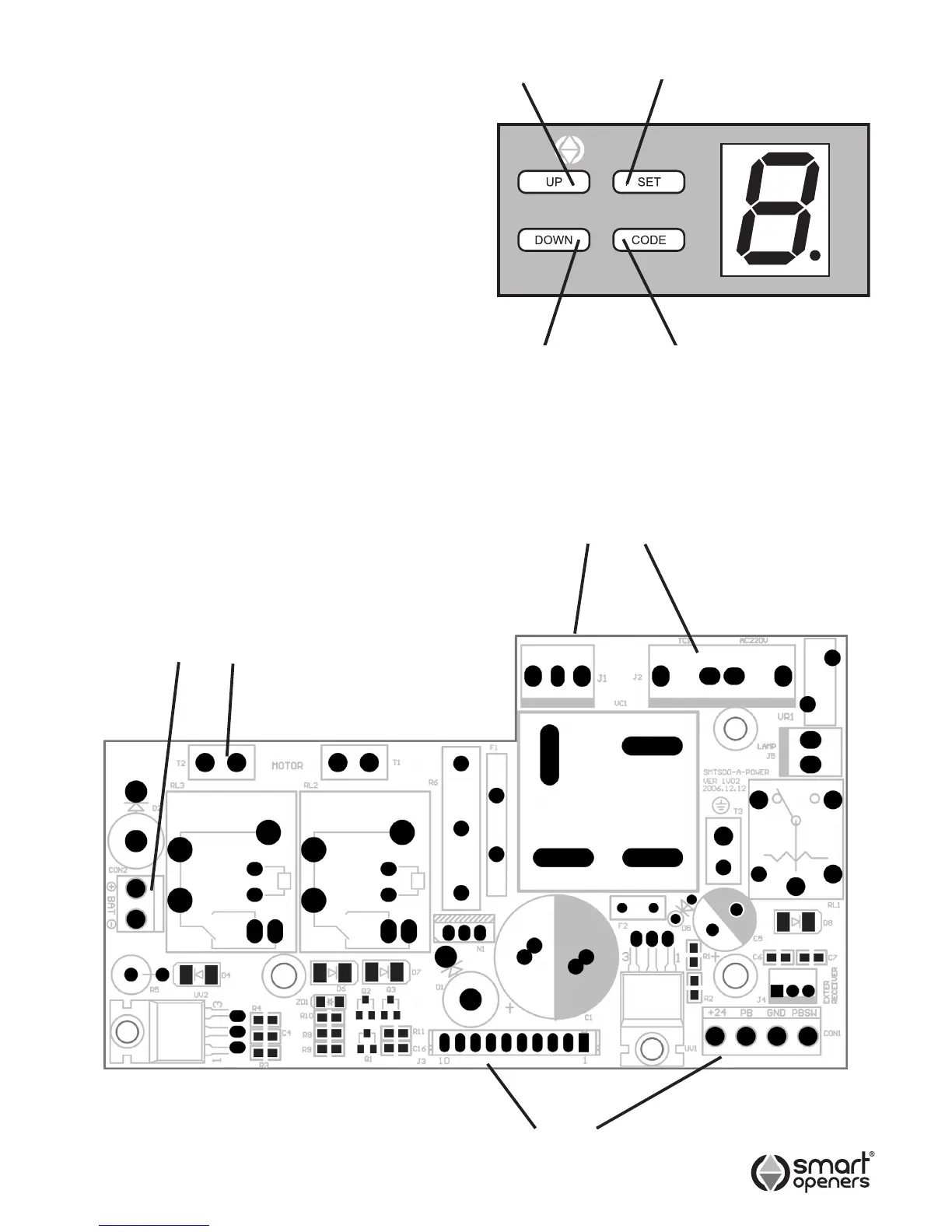

1 (UP button) Limit mode set.
2 (DOWN button) Reversing sensitivity set
3 (SET Button) Conrm set
4 (CODE Button) Transmitter code set
Circuit Board Connectors
5 Coupling for connecting the backup battery.
6 Coupling for connecting the motor.
7 Coupling for the power transformer.
8 Terminal for connection of power input, run lamp and
transformer.
9 Terminal connector to control board.
10 Terminal for connection of photo beam or push button.
5 6
7 8
9 10
1 3
2 4
