SMART 453 2016 User Manual

R
the tail-end of a lorry
R
slanted posts
Only use the image from the reversing
camera as a guide. You may otherwise
damage your vehicle and/or the object.

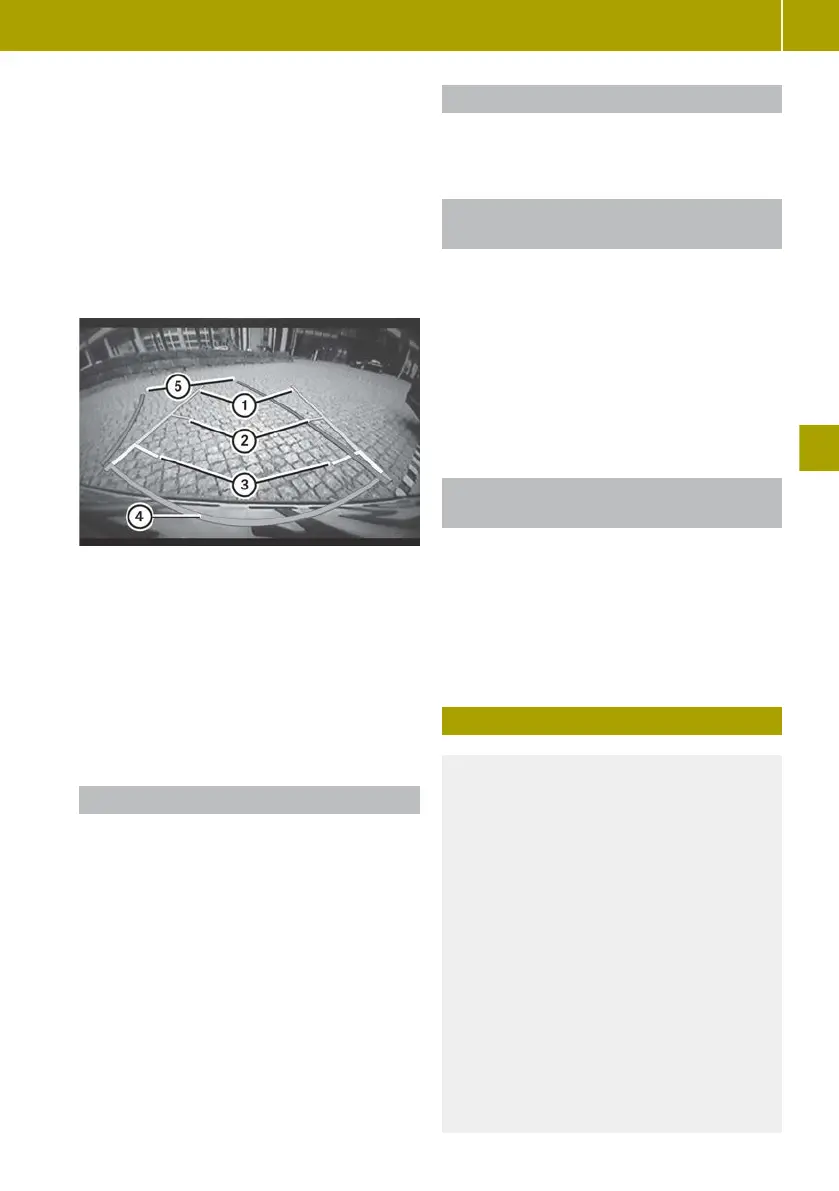

Guide lines
in different colours show the dis-
tance of obstacles from the rear of the vehi-
cle. Static guide lines do not change when the
steering wheel is turned. Dynamic guide
lines change depending on the position of
the steering wheel.
:
Static: vehicle width including exterior
mirrors
;
Green, static: approx. 1.50 m
=
Yellow, static: approx. 0.7 m
?
Red, static: approx. 0.3 m
A
Blue, dynamic: vehicle width including
exterior mirrors
The distance specifications only apply to
objects that are at ground level.
Activating the reversing camera
The ignition must be switched on to use the
reversing camera.
X
In the smart Media-System, select Vehi‐
cle> Settings> Rear camera> Rear cam‐
era view settings > Rear camera view.
X
Confirm with Done.
X
Engage reverse gear.
The
area
behind the vehicle is shown with
guide lines in the smart Media-System
display.
Switching off the reversing camera
After driving
forwards briefly, the reversing
camera will turn itself off.
Adjusting the reversing camera set-
tings
X
In the smart Media-System, select Vehicle
> Settings > Rear camera > Rear camera
view settings.
X
To select the desired settings:
R
Switch Rear camera view on or off.
R
Switch Static guidelines on or off.
R
Switch Dynamic guidelines on or off.
X
Confirm with Done.
Adjusting reversing camera display
settings
X
In the smart Media-System, select Vehicle
> Settings > Rear camera > Image
settings.
X
Adjust the values for Brightness, Satura‐
tion and Contrast.
X
Confirm the display settings with Done.
Locking the vehicle
G
WARNING
If children are left unsupervised in the
vehicle, they could:
R
open doors, thereby endangering other
persons or road users
R
get out and be struck by oncoming traffic
R
operate vehicle equipment and become
trapped, for example
In addition, the children could also set the
vehicle in motion, for example, if they:
R
release the parking brake
R
shift the automatic transmission out of
park position P or shift manual trans-
mission into neutral
R
start the engine
Locking the vehicle
87
>> Parking and getting out.
