SMART Series 451 - Brake pedal module

Brakes
70
Chassis
Introduction of the smart fortwo, Model Series 451
P40.10-2711-00

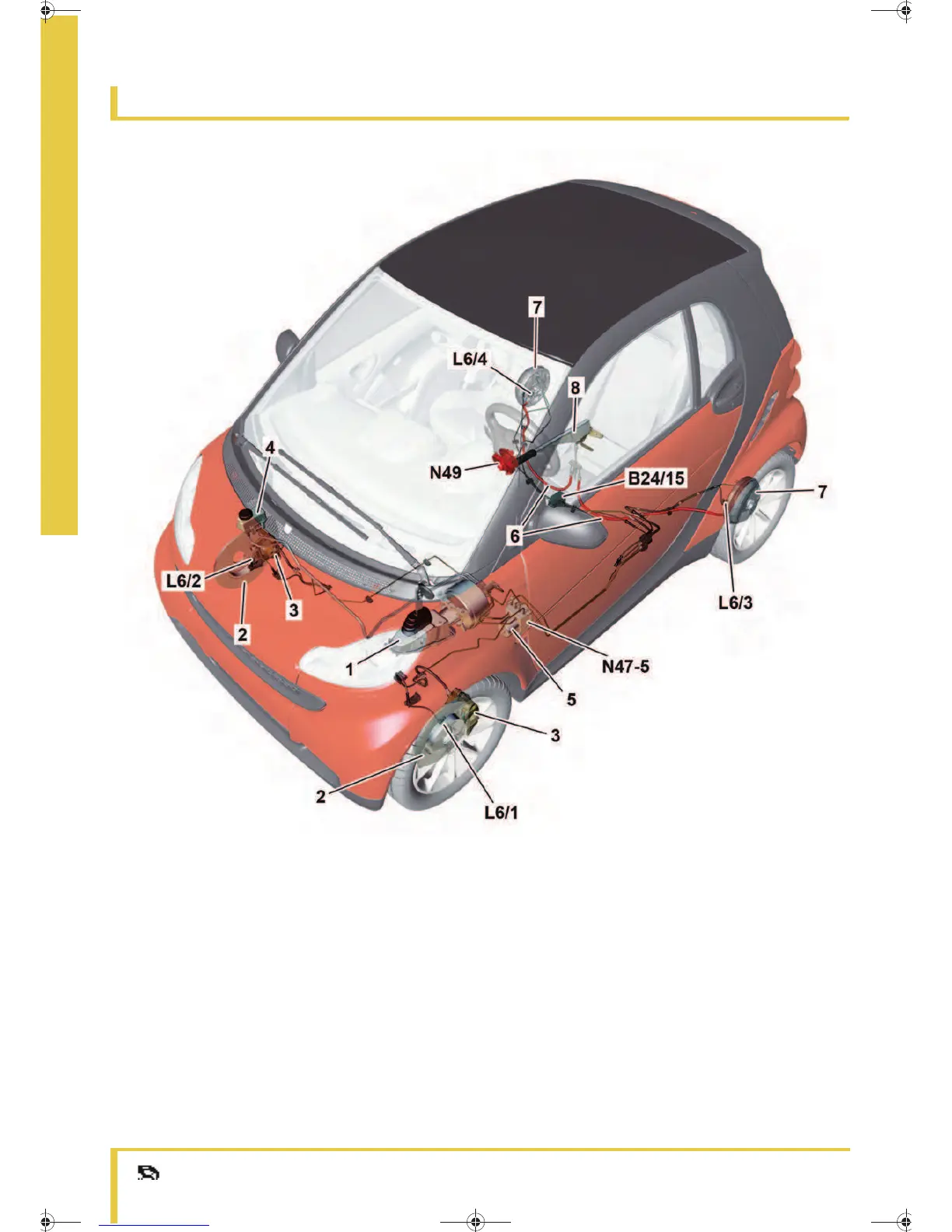

Brake system
1 Brake pedal module
2 Brake disk
3 Brake caliper
4 Expansion reservoir
5 ESP unit
6 Hand brake cables
7 Drum brake (consisting of: anchor plate, wheel
brake cylinder, brake shoe, springs and brake
drum)
8 Hand brake lever
B24/15 Yaw rate, lateral and longitudinal accelera-
tion sensor
L6/1 Left front rpm sensor
L6/2 Right front rpm sensor
L6/3 Left rear rpm sensor
L6/4 Right rear rpm sensor
N47-5 ESP control unit
N49 Steering angle sensor
