Brake pedal module
The brake pedal module is located on the underfloor
and consists of the following assemblies:
• Pedals
• Carrier
• Brake booster
• Master brake cylinder
Pedals
The pedals consist of:
• Pedal head
• Perforated boot
• Pedal assembly seal
• Housing
• Linkage rod
• Brake pedal module cover
• Seal for brake pedal module cover
• Brake light switch

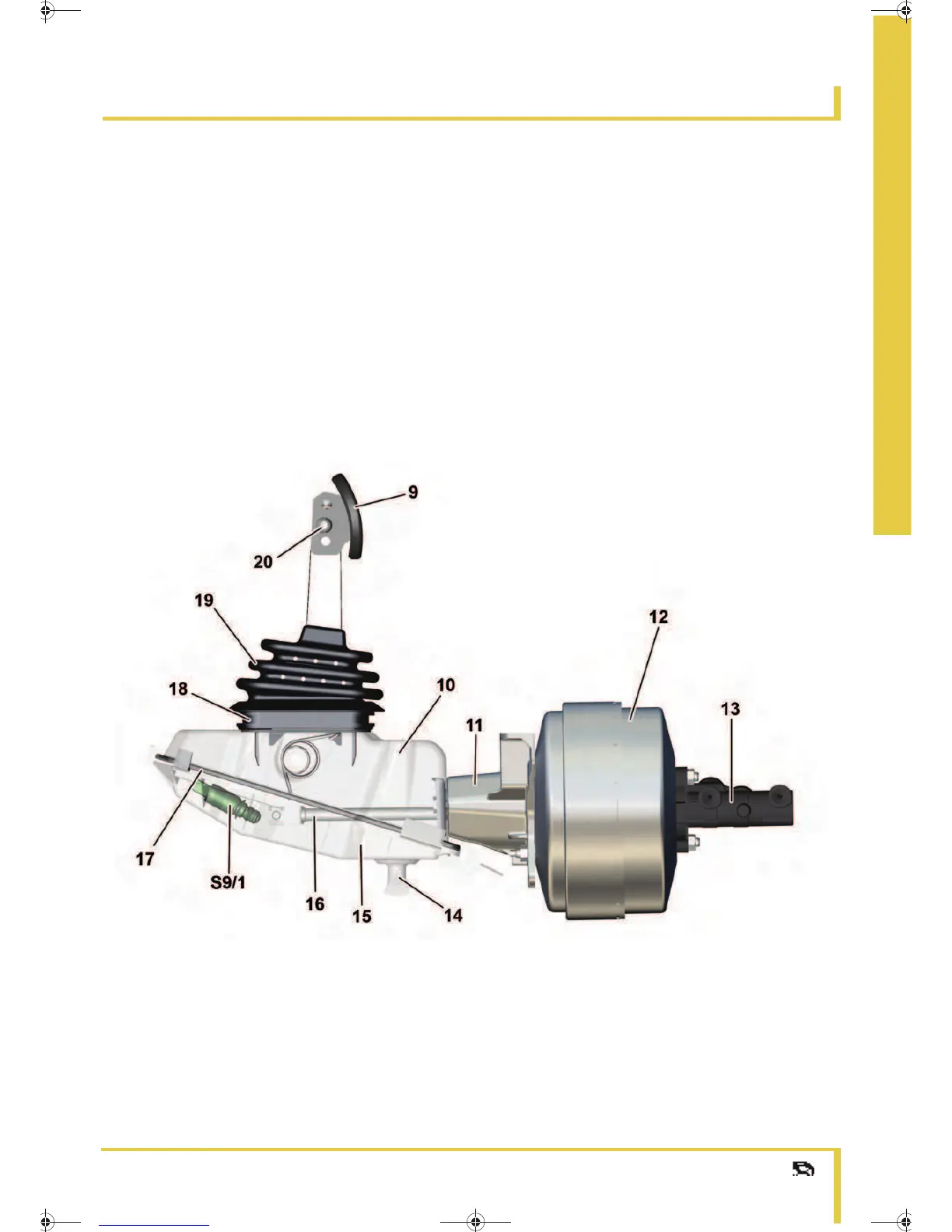

P42.10-2712-00
Brake pedal module
9 Pedal head
10 Housing
11 Carrier
12 Brake booster
13 Master brake cylinder
14 Grommet
15 Brake pedal module cover
16 Linkage
17 Seal
18 Pedal assembly seal
19 Perforated boot
20 Bolt
S9/1 Brake light switch
