Doors/flaps
Body
87
Introduction of the smart fortwo, Model Series 451
P72.10-3403-00

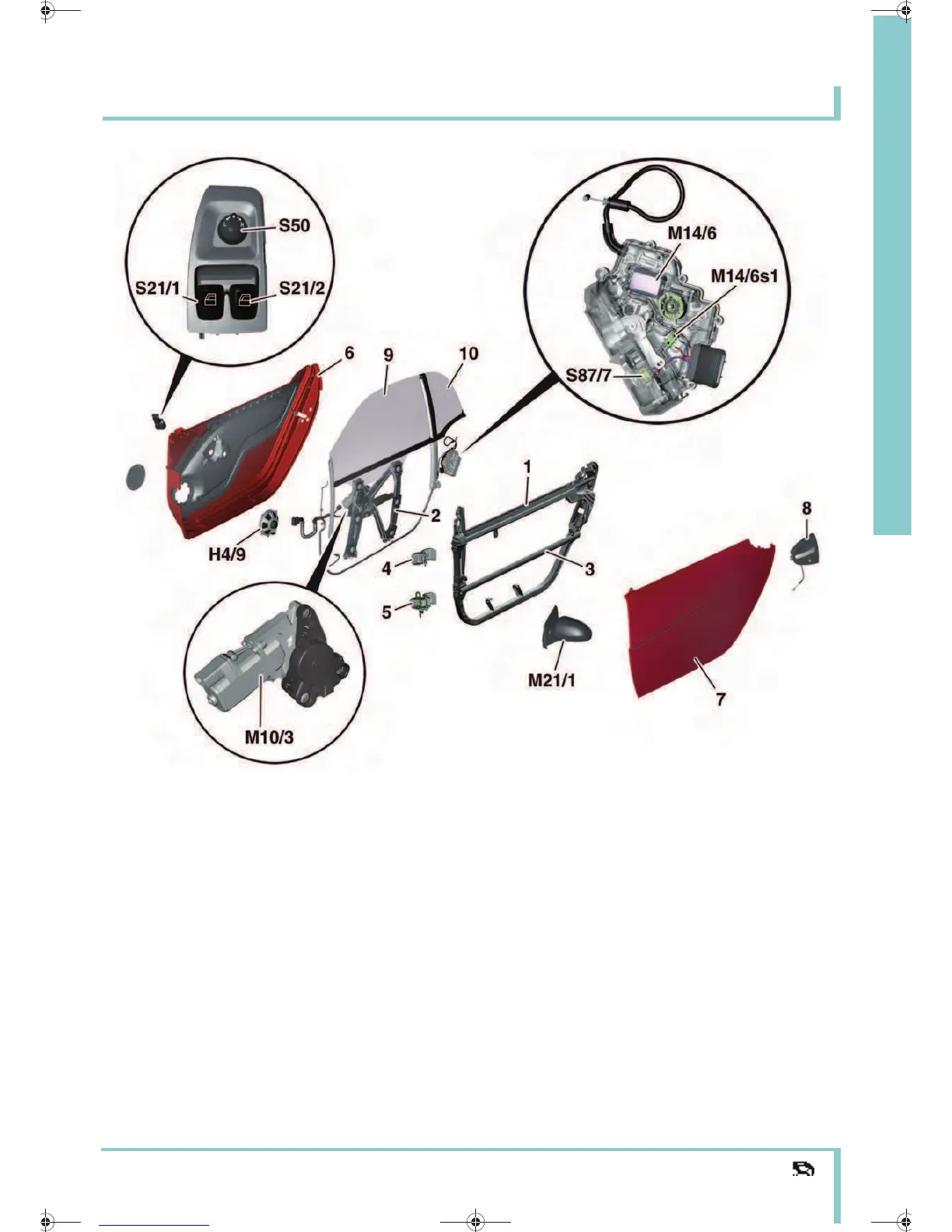

Design of driver door with power window and electric outside mirror
1 Door carrier module
2 Window lifter mechanism
3 Diagonal strut
4 Top door hinge assembly
5 Bottom door hinge assembly
6 Inner door lining
7 CBS door paneling
8 Curved handle
9 Side window
10 Triangular window
H4/9 Left front speaker
M10/3 Left power window motor
M14/6 Left door CL [ZV] motor
M14/6s1 Left door CL [ZV] microswitch
M21/1 Left electrically adjustable and heated out-
side mirror
S21/1 Left power window switch
S21/2 Right power window switch
S50 Outside mirror adjustment switch
S87/7 Left door rotary tumbler microswitch
