Doors/flaps
88
Body
Introduction of the smart fortwo, Model Series 451
Rear-end door
P72.20-2599-00

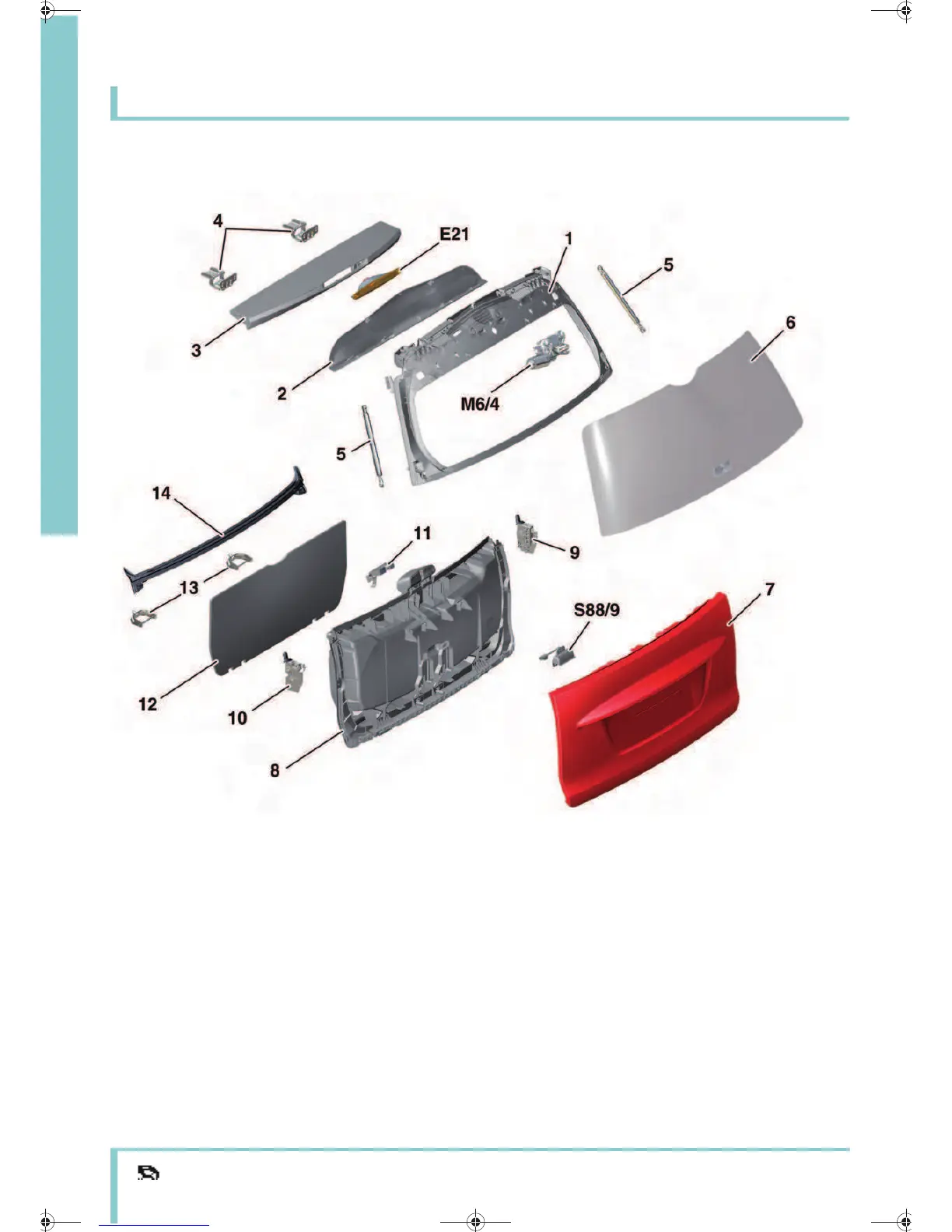

Design of rear-end door shown on the smart fortwo coupé
1 Upper rear-end door
2 Upper rear-end door paneling
3 Rear spoiler
4 Upper rear-end door hinges
5 Gas-operated strut
6 Rear window
7 CBS rear-end door paneling
8 Lower rear-end door
9 Right door lock of lower rear-end door
10 Left door lock of lower rear-end door
11 Door lock of upper rear-end door
12 Door panel lining
13 Lower rear-end door hinges
14 Seal
E21 Center high-mounted brake lamp
M6/4 Rear-end door wiper motor
S88/9 Rear-end door handle switch
