COMMISSIONING
Commissioning,
electrical connection

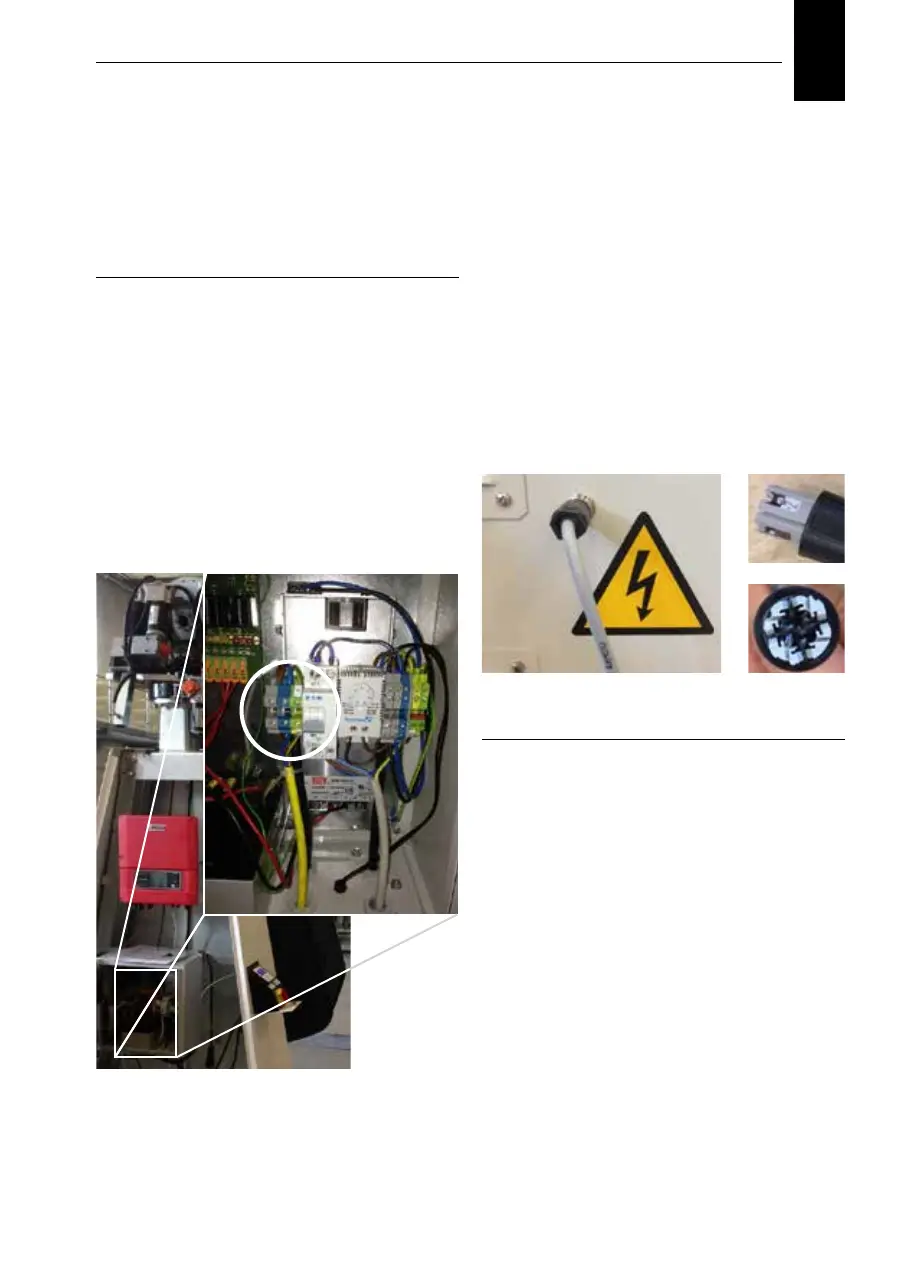

CONNECT POWER CABLES IN THE DEVICE
Connect the power cable for home
connection inside the main control
cabinet after cover removal.
Use the empty PG – gland on bottom side
to insert electrical connecting cable and
connect it to the clamp (left end of cap
rail).
Loosen the screws and wire according to
the connection plan and position identi-
fication.
Installation of anemometer is done by
connecting the anemometer-plug to the
control cabinet. If it is necessary to re-
move the plug (i.e. due to cable mounting)
it is possible to unscrew the plug, remove
it and attach it again after the cable is laid
properly. The pins at the plug as well as
each cable end are numbered from 1 to 4.
CONNECTION ORDER AND NECESSARY
SUPPLY SECURITY:
The power line has to be laid from power
attachment point (typically house site) to
the product till the connector terminal
inside control cabinet. First connect to
the product side. Only when everything is
finished here, make the connection to the
line protection switch at the distribution
side in the house and start the system.
A main switch and a fuse with 16 A for
2.5 mm
2
must be provided in the house.
Country-specific provisions must be
followed.
