1. Gear Adjustment
Adjust the cable tension Adjustment Bolt to align
guide pulley with the centre of the cogs (setting this
in gear 3 or 4 is easiest). Low adjustment: In 1st
gear check and if necessary, turn the L adjustment
screw so that the guide pulley moves to a position
directly in line with the largest (1st gear) sprocket.
High adjustment: turn the crank arm while gear
shifting the derailleur to move the derailleur to the
top gear position, and then check and if necessary,
turn the H adjustment screw to adjust so that the
guide pulley is in line with the outer line of the
smallest sprocket when looking from the rear.
Turn the crank arm to set the derailleur to the low
position.
4. Maintenance & Adjustment
2. Lubrication
1.1 Once a month lubricate all pivot points
on your derailleur and the derailleur pulleys with
suitable chain lube.
1.2 Every three months lubricate the brake
lever pivots, gears and chain with suitable oil.
3. Cleaning your electric bike
Warm soapy water and a cloth can be used to clean
the frame of your bike, but care must be taken not
to immerse any of the electrical components; they
are rainproof but cannot be immersed in water. The
motor can be cleaned with a soapy cloth, but also
must not be immersed in water. The battery can be
cleaned with a damp cloth, then dried afterwards.
Note: in salty conditions it is essential to clean and
lube your bike regularly.
4. Other Maintenance
Your bicycle must be returned to your servicing
dealer or bicycle/motorcycle mechanic after one
month or 200km of riding (which ever comes rst)
to re-tension the spokes. Then every six months
or 1000km (which ever comes rst) for a general
service and thorough inspection. Failure to do this
can void your warranty due to unnecessary wear
and tear.
Excluding the electric drive side of things, your
SmartMotion bicycle is a normal bicycle, with
normal components. Your dealer will be able to
explain to you the general care and maintenance of
the normal bicycle components. You should pop
your bike in for a check-up after about a month’s
use as new gear and brake cables will stretch, then
every 6 months after that.
The electric drive system is maintenance free and
has self-diagnostic codes that will be displayed on
the LCD console (detailed later in this user guide)
should anything go wrong. Again, speak to your
dealer should any issues arise.
4. Maintenance & Adjustment

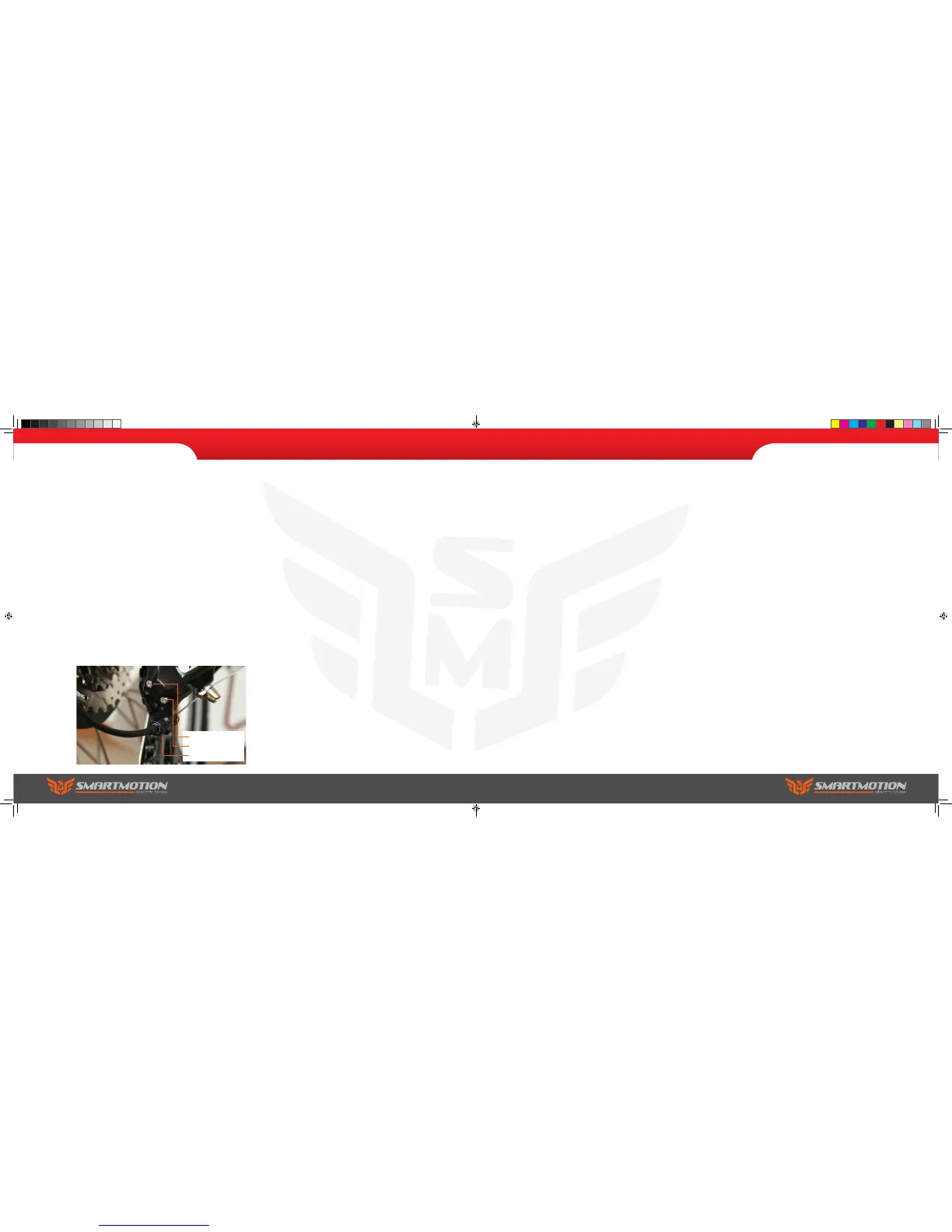

H adjustment screw
L adjustment screw
Adjustment Bolt
