27

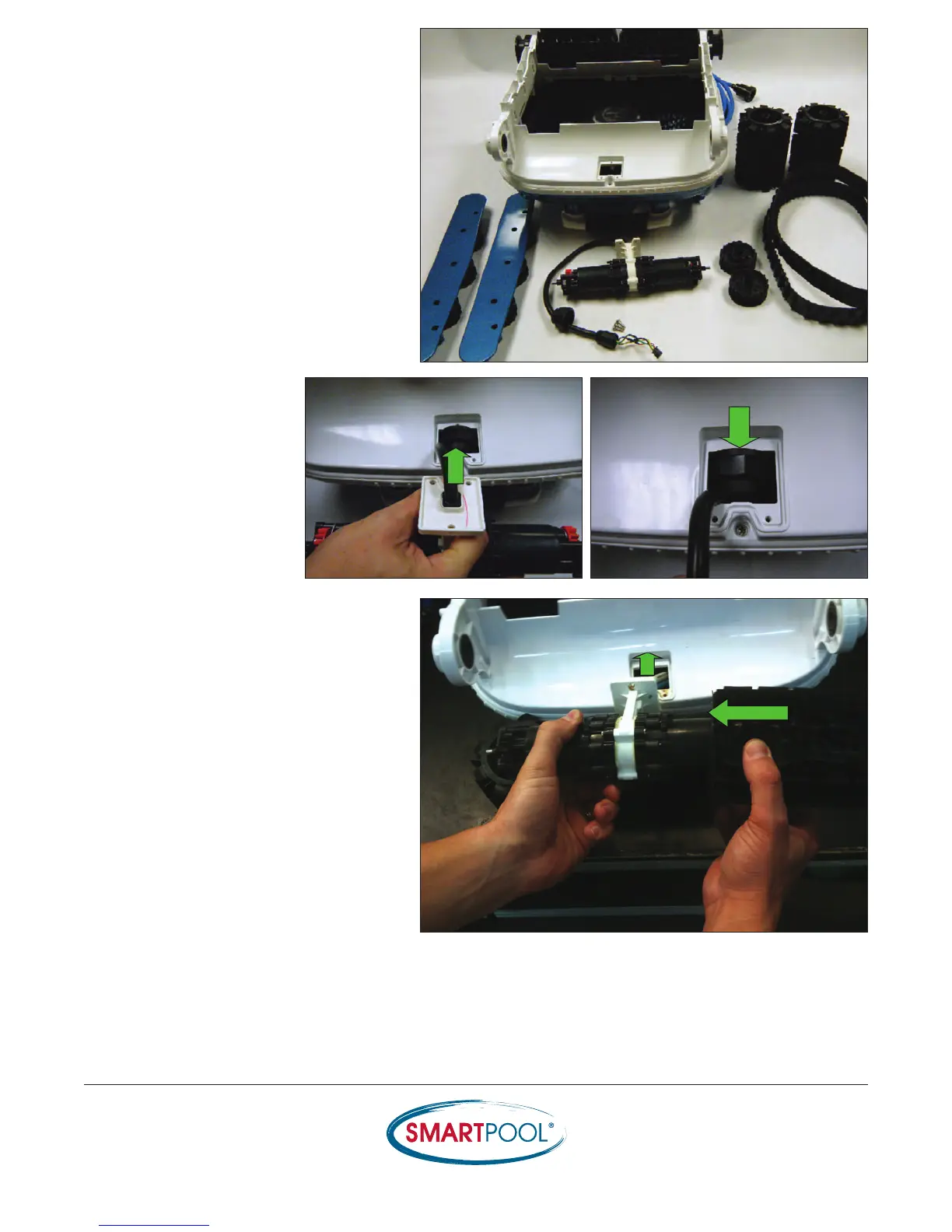

The cleaner is fully disassembled and ready
to be reassembled with the new Drive
Motor.
10) Feed the cable of the new
Drive Motor through the
hole in the shell. Make
sure the fitting is in a
vertical position to pass it
through the shell.
11) Slide the new Drive Tubes onto the Drive
Motor and fit the Motor Mount back on
the casing.
