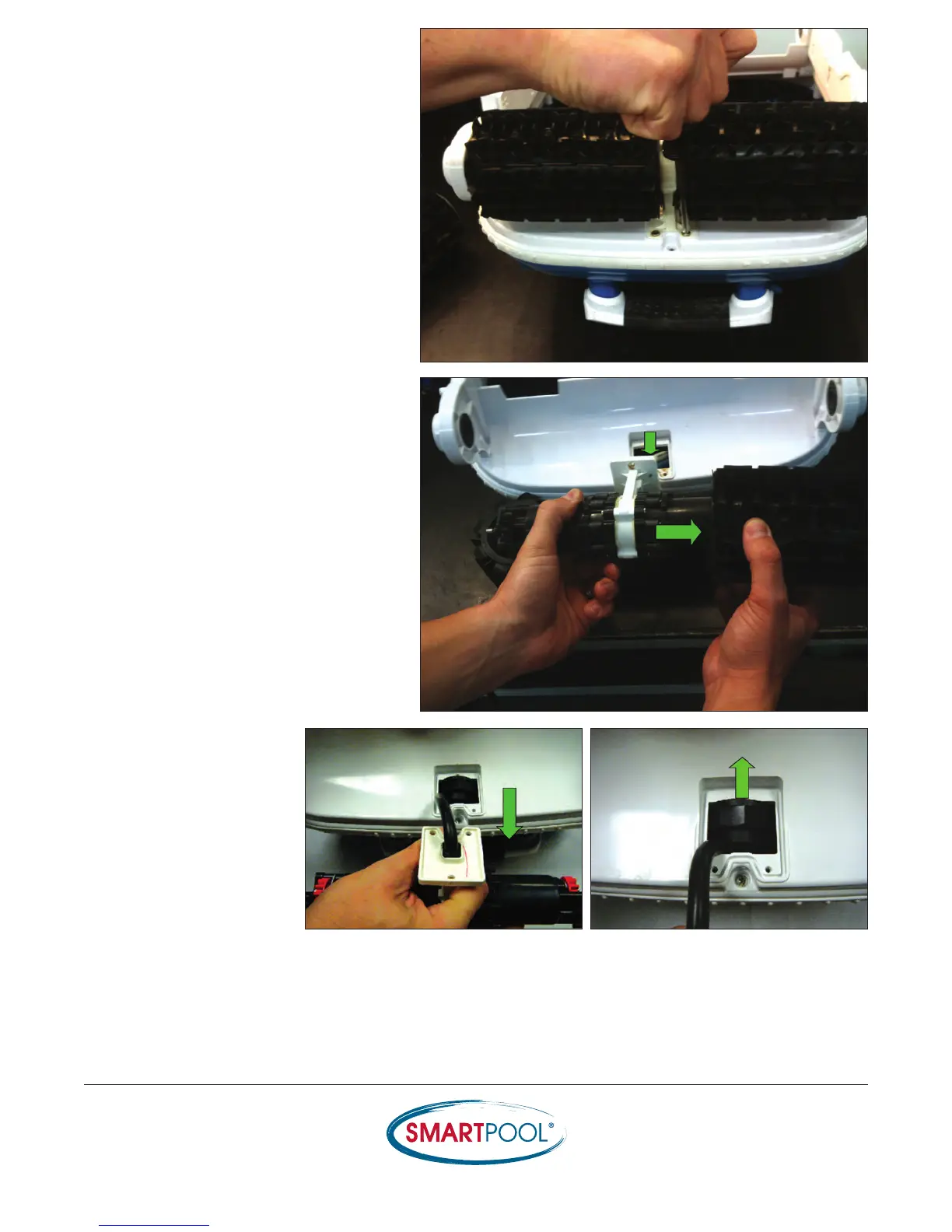

7) Remove the (3) Motor Mount screws
using a Phillips Head screwdriver on the
Drive Motor side.
8) Gently pull on the Drive Motor to
remove it from the shell and slide the
Drive Tubes from the Drive Motor.
9) Pull the cable to the Drive
Motor through the hole
in the shell. Make sure
the fitting is in a vertical
position to pass it
through the shell.
