ADJUSTING THE ALARM SENSITIVITY
NOTE: Alarm is factory-set to the highest sensitivity level.
1) Loosen the screws on the bottom of the sensor tube
(Fig 15).
2) Slide the adjustment switch from the high
sensitivity position (H) to the low sensitivity
position (L) (Fig 16).
3) Tighten the screws on the bottom of the sensor
tube to complete the adjustment.
4) Test the alarm to ensure it is performing properly.
ADJUSTMENT SWITCH
DEFLECTOR SHIELD
The deflector shield can be used to lower the sensitivity
of the alarm in cases where the water flow from the
return is setting off the alarm.
1) Snap the shield onto the sensor cage facing the
direction of water flow (Fig 17).
2) Retest the alarm to ensure it is performing properly.
WINTERIZATION
1. Remove the alarm from the pool.
2. Dry the alarm thoroughly.
3. Remove the battery.
4. Store in a dry location that is above the freezing point.
TROUBLESHOOTING

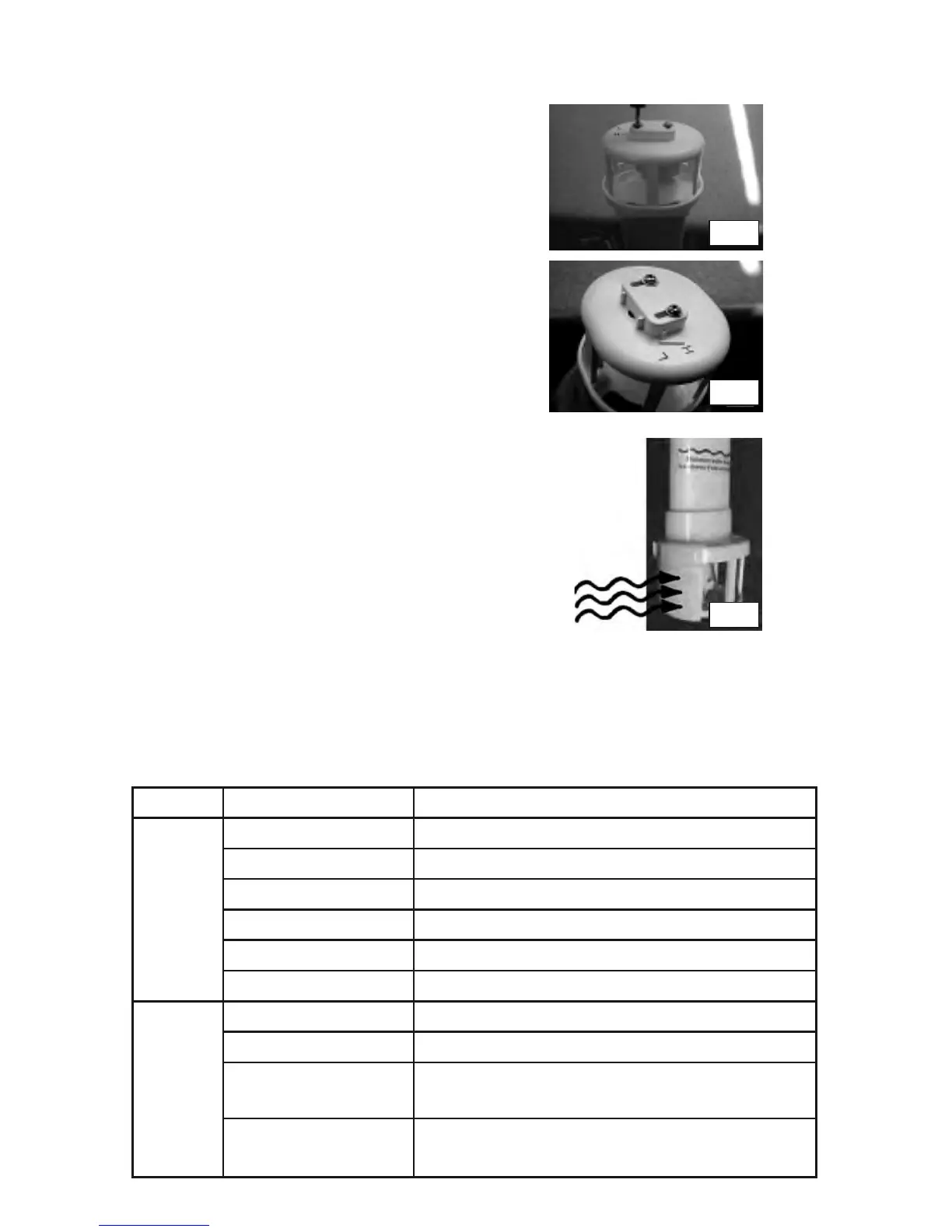

Fig 15
Fig 16
Fig 17
SYMPTOM REASON SOLUTION
Alarm Not
Sounding
Low Battery Install new batteries
Alarm not activated Ensure the main switch is turned to the ON position
Connection not secure Ensure the connection between the siren and alarm body is secure
Sensitivity is set on L or Low Ensure the sensitivity is set to H or High
Sensor shield blocking wave Remove sensor shield from sensor cage
Alarm too deep Raise the floating sensor closer to the surface of the water
Alarm
Constantly
Sounding
Alarm too shallow Lower the floating sensor further into the water
Sensitivity is set on H or High Adjust the sensitivity to L or Low
Connection lost after alarm
turned ON
Ensure the connection between the siren and alarm body is secure
Return water flow setting off
alarm
Adjust the return eyeball to face down or away from the alarm
