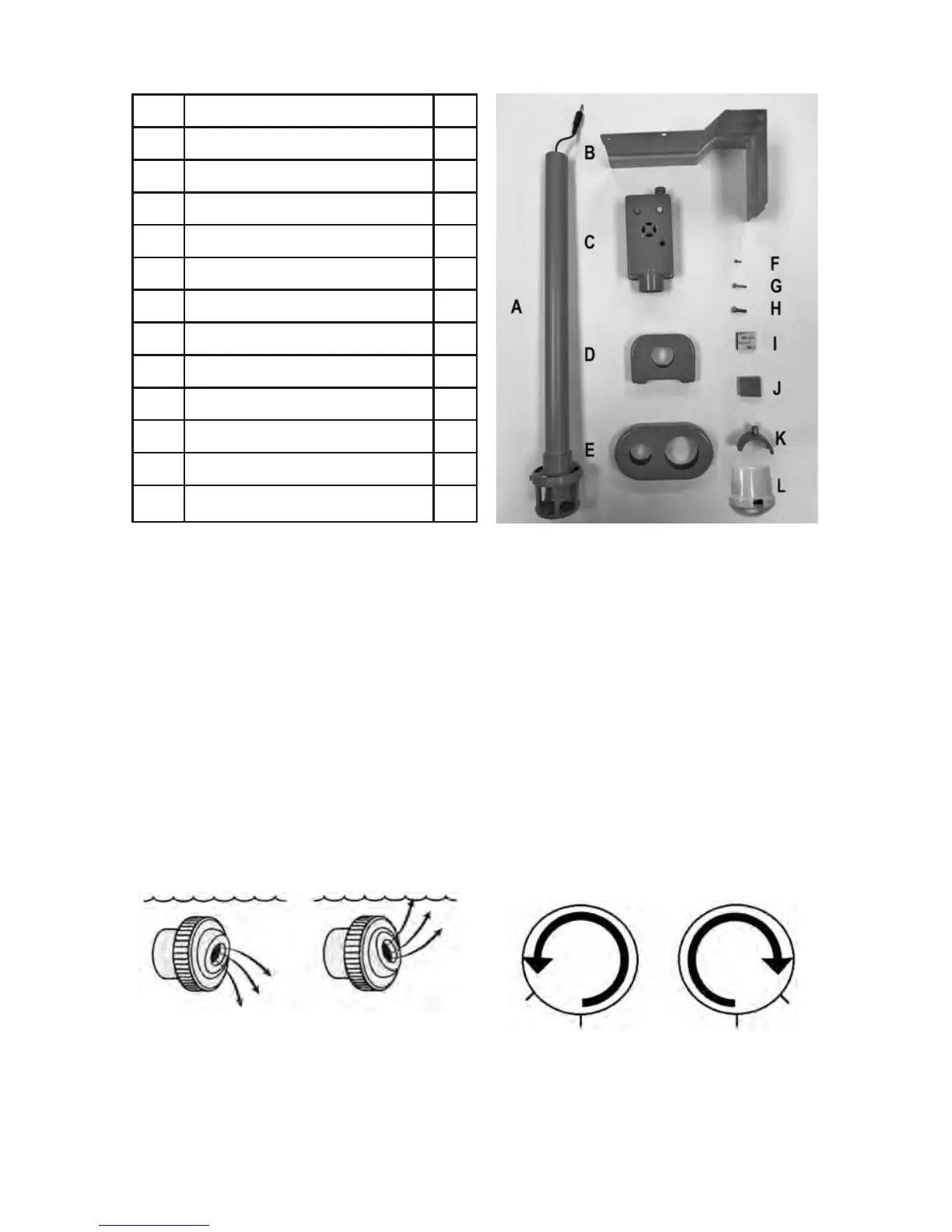

LIST OF COMPONENTS
ITEM DESCRIPTION QTY
A Alarm Body 1
B Mounting Plate 1
C Siren 1
D Plate Bracket 2
E Ladder Mount Clamp 2
F Plate Shim Screw 2
G Self Tapping Screw (Ladder Mount) 6
H Machine Threaded Screw (Deck Mount) 4
I Adhesive Pad (sets) 4
J Plate Shim 2
K Ladder Shim 4
L Deflector Shield 1
REQUIRED TOOLS/MATERIALS
• Phillips Head Screwdriver (#2)
• (1) 9 VDC Battery
• Concrete Sealant/Paint (optional)
• Wood Deck Screws (optional)
INSTALLATION
POSITIONING OF THE ALARM
Key factors for proper alarm positioning:
1) Direction of the return line water flow.
2) Distance of the alarm from all points of the pool.
• The eyeball of the return line must be facing a
downward direction as to not disturb the
surface of the water.
CORRECT INCORRECT
• Ensure that the eyeball of the return is not facing the
center of pool but is either creating a clockwise or
counterclockwise water flow.
IMPORTANT: Larger pool sizes and/or pool shapes may require the use of more than one alarm. Testing the alarm
from all areas of the pool is essential to ensure the alarm will activate regardless of the entry point.
RETURN RETURN
ALARMALARM
Round Shaped Pools
• Ensure the alarm is centrally located for the
shortest distance to all points of the pool.
To Next Page
