Doc. no. AMX-OMU0058-C
-20-

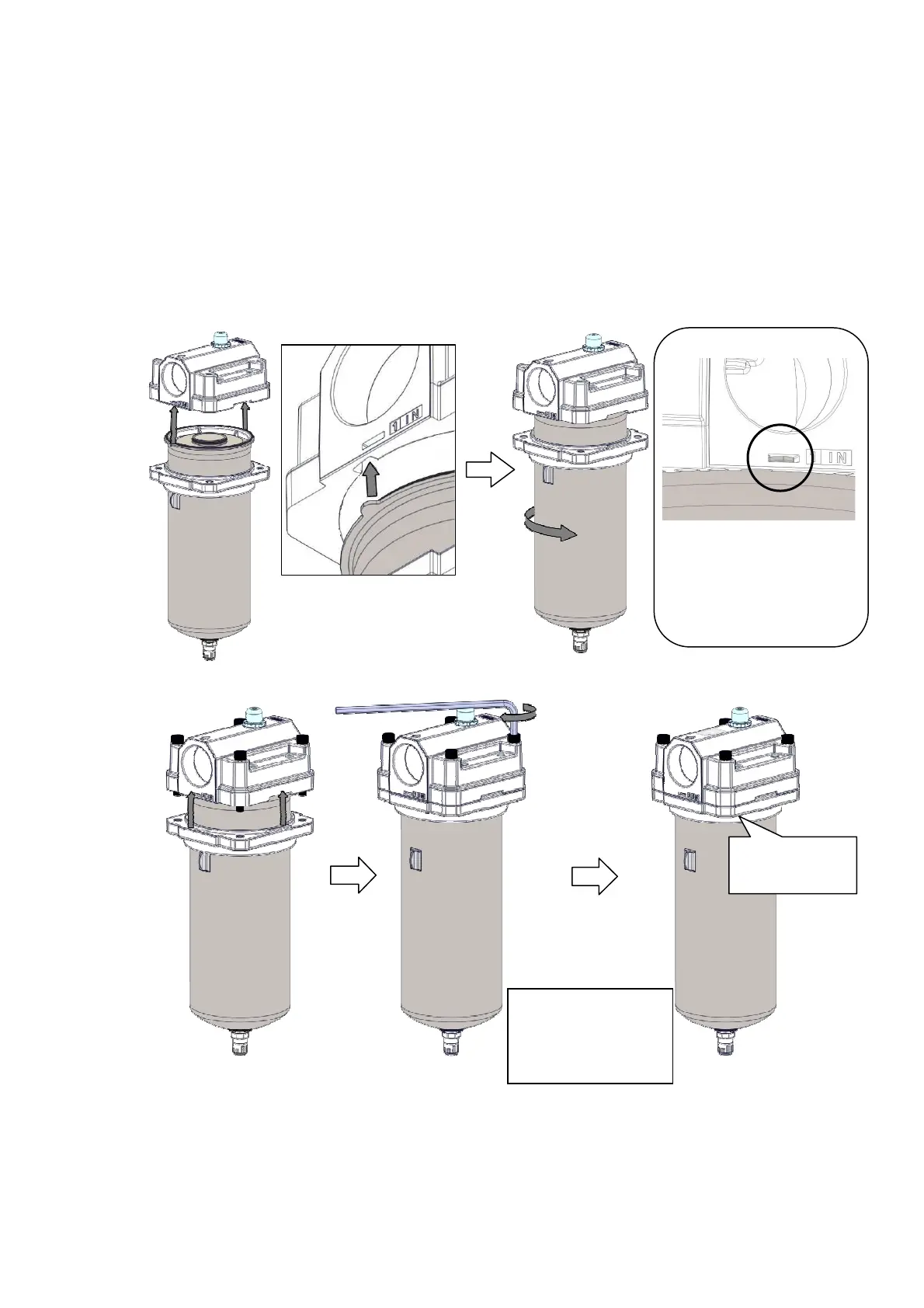

L) Insert the bowl locating tabs (2 parts) into the slots (2 parts) of the body, and rotate the bowl in the
direction shown by the arrow below by approximately 10 degrees.
Note: Check that the tabs of the bowl are visible from the square opening at the lower part of
the piping port.
M) Pull up the flange and tighten the hexagon socket head cap screws with a hexagon wrench.
Tightening torque is 12.5N･m for 70D, and 24.5 N･m for 80D and 90D.
Although there will be a slight gap between the body and flange even after tightening with the
tightening torque above, this is normal.
～Point～
L)
Check that the tabs of the
bowl are visible from the
square opening (IN side
and OUT side).
Rotate
approxi
mately
10°.
M)
【Tightening torque】
70D 12.5N
･m
80D 24.5N
･m
90D 24.5N
･m
There is a slight
gap, but this is
normal.
To Next Page
