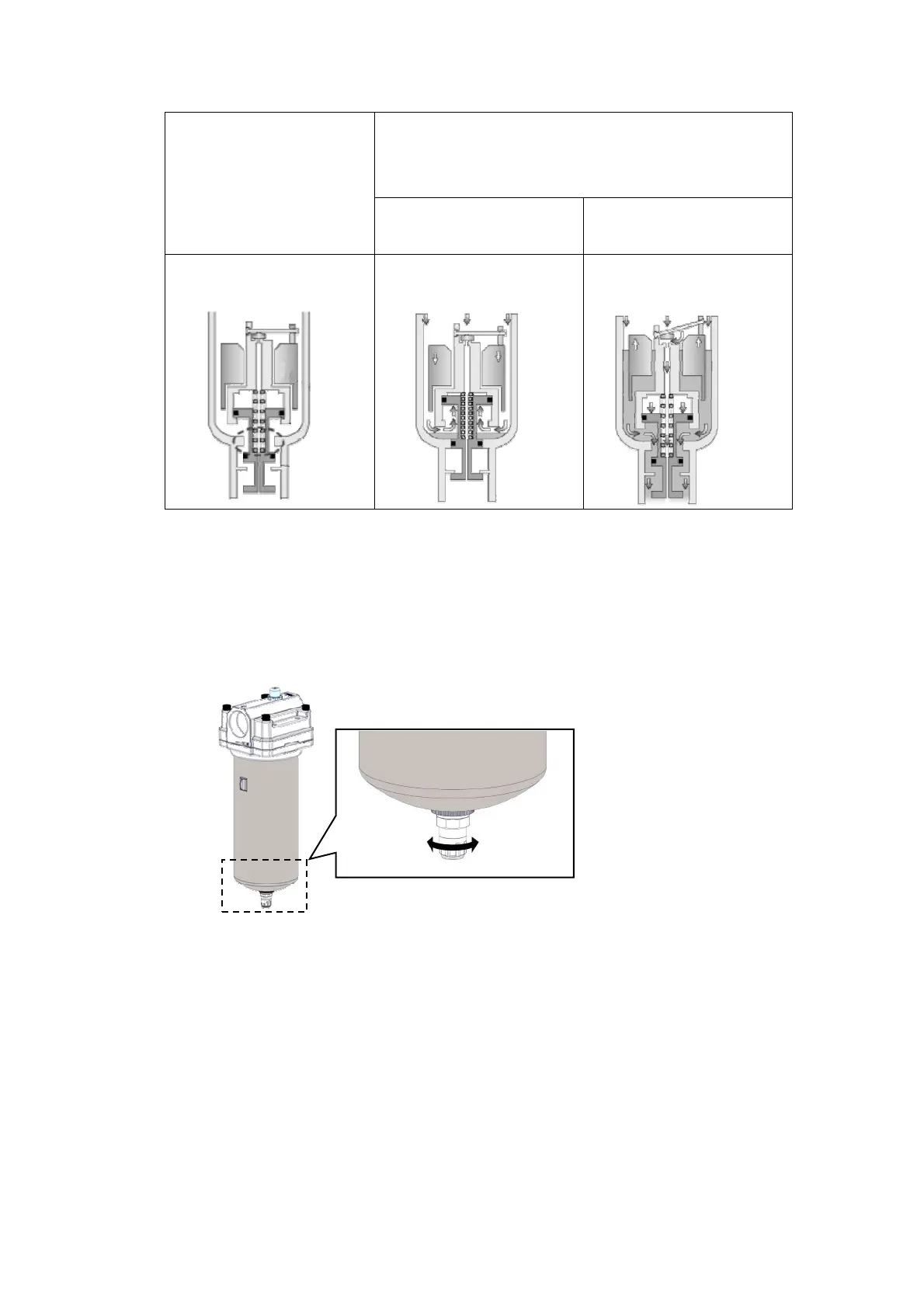

Auto drain
Not pressurized
(After releasing residual
pressure)
Pressurized
(Pressure in the product: 0.1MPa or more)
Before drainage is
accumulated.
When drainage is
accumulated.
Drainage is released.
(Open)
Drainage is not released.
(Closed)
Drainage is released.
(Open)
<Manual release>
The drain cock is usually tightened to the "S" side, but when it is rotated to the "O" side,
drainage can be released manually.
If the drainage is released while pressure is left in the filter, drainage blows out from the
drain port abruptly.
Note) Manual release is not available with the auto drain with 1.6MPa specification.
The workpiece will be contaminated if ambient air enters the product.
When compressed air is used for air blow, the compressed air blowing out of the blow nozzle
may contain airborne floating foreign matter (solid particles, liquid particles) and blow it to
workpiece. In that case, airborne floating foreign mater may stick to the workpiece.
Do not put a heavy object on the product, or step on it.
It may cause damage and dropping of the product, and injury or an accident.
“O”
(Open)
“S”
(Closed)
