SMC Networks AV2000-02-1 User Manual

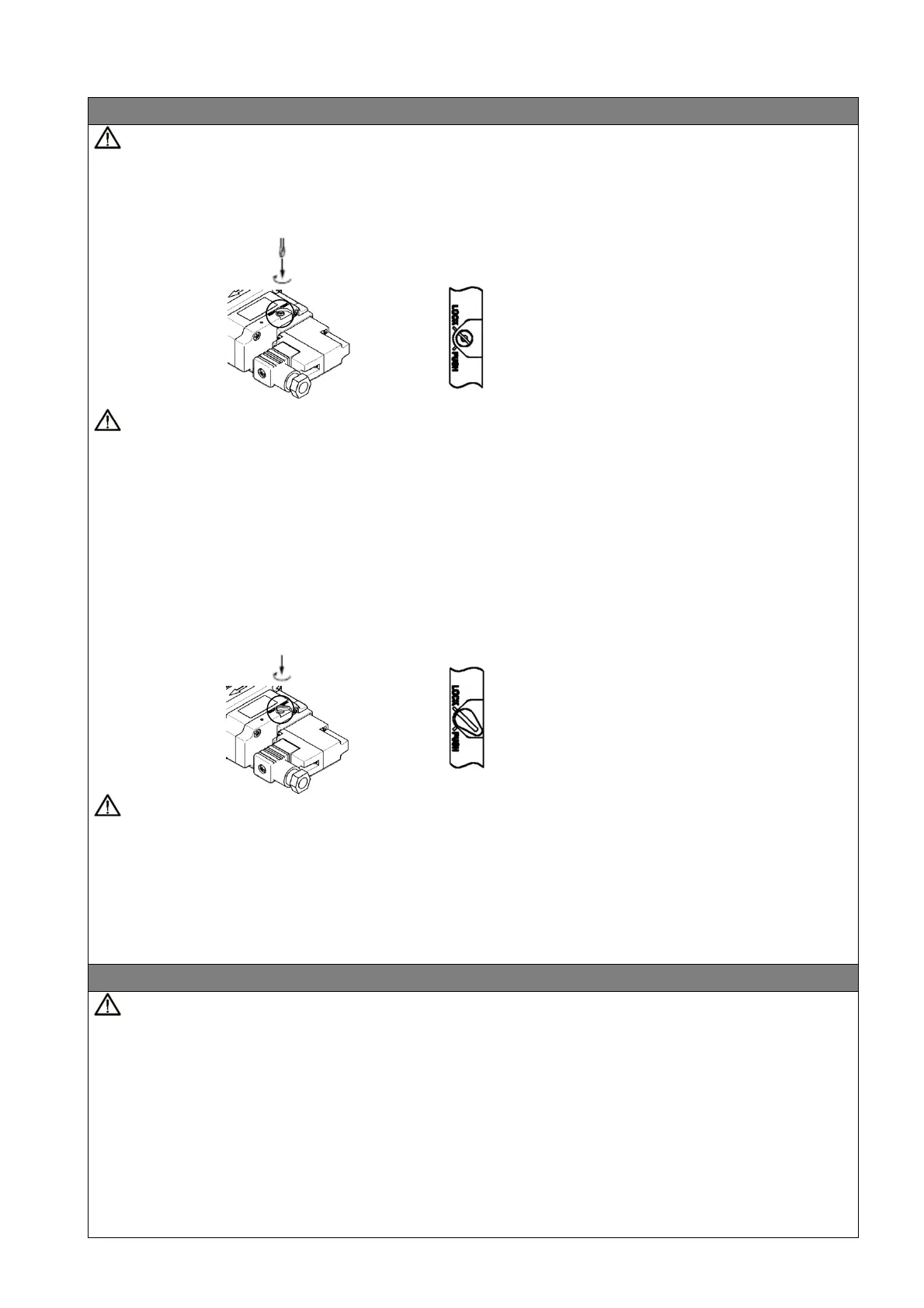

Manual Override Operation
Warning
■ Push-turn locking slotted type [Type B]
While pressing, turn it the direction of the arrow.
It it is not turned, it can be operated the same way as the non-locking type.
Caution
When operating the locking type B with a screwdriver, turn it gently using a
watchmaker’s screwdriver.
[Torque : Less than 0.1N･m]
■ Push-turn locking lever type [Type C]
While pressing, turn it the direction of the arrow.
If it is not turned, it can be operated the same way as the non-locking type.
Caution
When locking the manual override on the push-turn locking types (B, C), be sure to
push it down before turning.
Turning without first pushing it down can cause damage to the manual override and trouble
such as air leakage etc.
Solenoid Valve for 200/220 VAC Specification
Warning
AC specification solenoid valves with grommet have a built-in rectifier circuit in the pilot
section to operate the DC coil.
With 200/220 VAC specification pilot valves, this built-in rectifier generates heat when
energized. The surface may become hot depending on the energized condition;
therefore, do not touch the solenoid valves.
Locked position
Locked position
-10-
