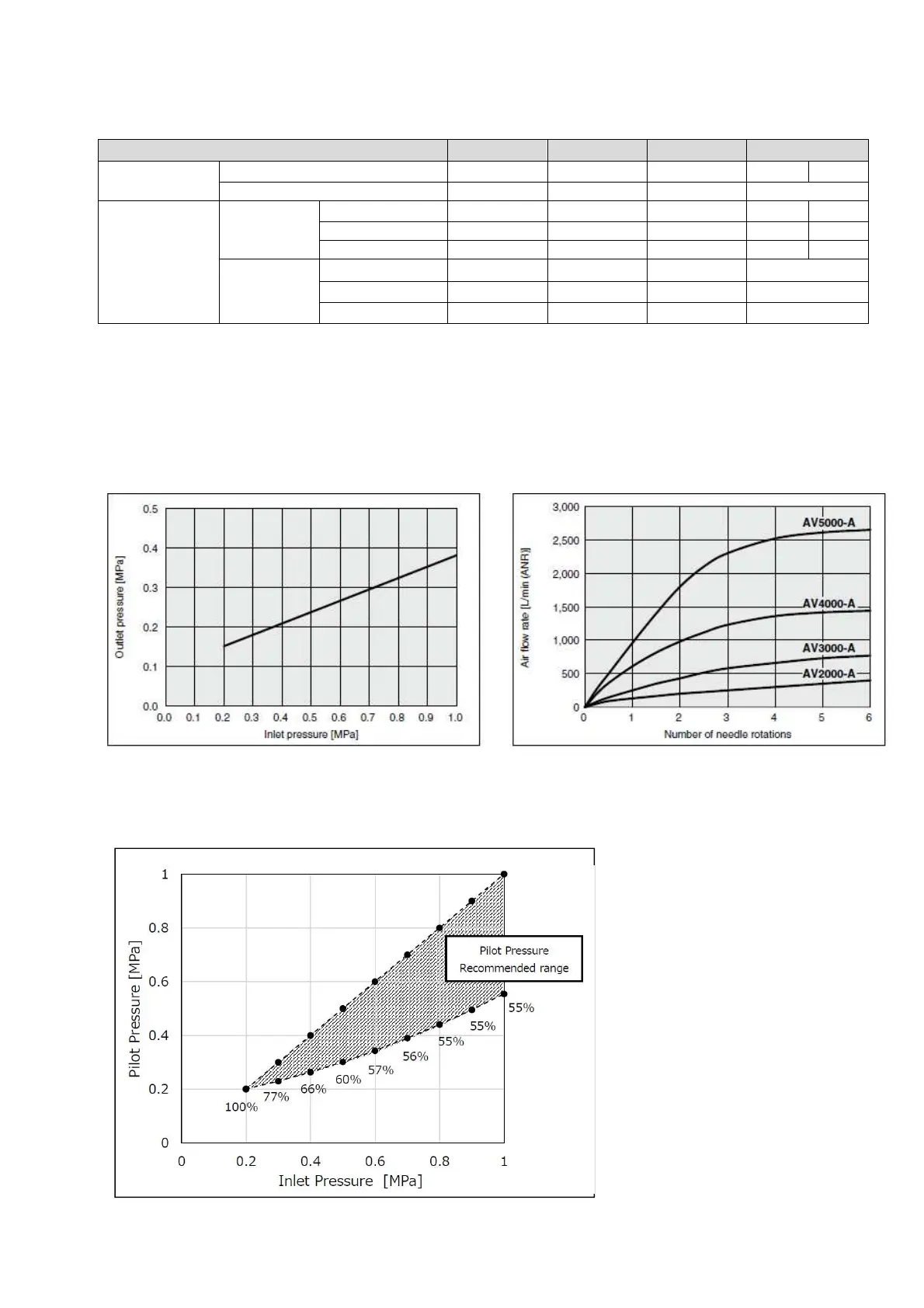

Flow Rate Characteristics
Series AV2000-A AV3000-A AV4000-A AV5000-A
Port size
1(P)・2(A)
1/4 3/8 1/2 3/4 1
3(R) 1/4 3/8 1/2 3/4
Flow rate
characteristics
1(P)→2(A)
C [dm
3
/(s・bar)]
9.2 13.1 19.2 34.8 41.3
b 0.36 0.27 0.32 0.66 0.34
Cv 2.4 3.1 5.1 12.6 13.7
2(A)→3(R)
C [dm
3
/(s・bar)]
8.8 9.2 10.1 23.7
b 0.46 0.48 0.55 0.67
Cv 2.5 2.6 3.2 9.2
Pressure for switching from low speed
air supply to rapid air supply
Needle flow characteristics at low speed air supply
Inlet pressure: 0.5MPa
* Representative values
Pilot Pressure range
(for Air operated type)
-16-
