SMC Networks D-M9 Series User Manual

-13-
No.D-※S-OMJ0004-E

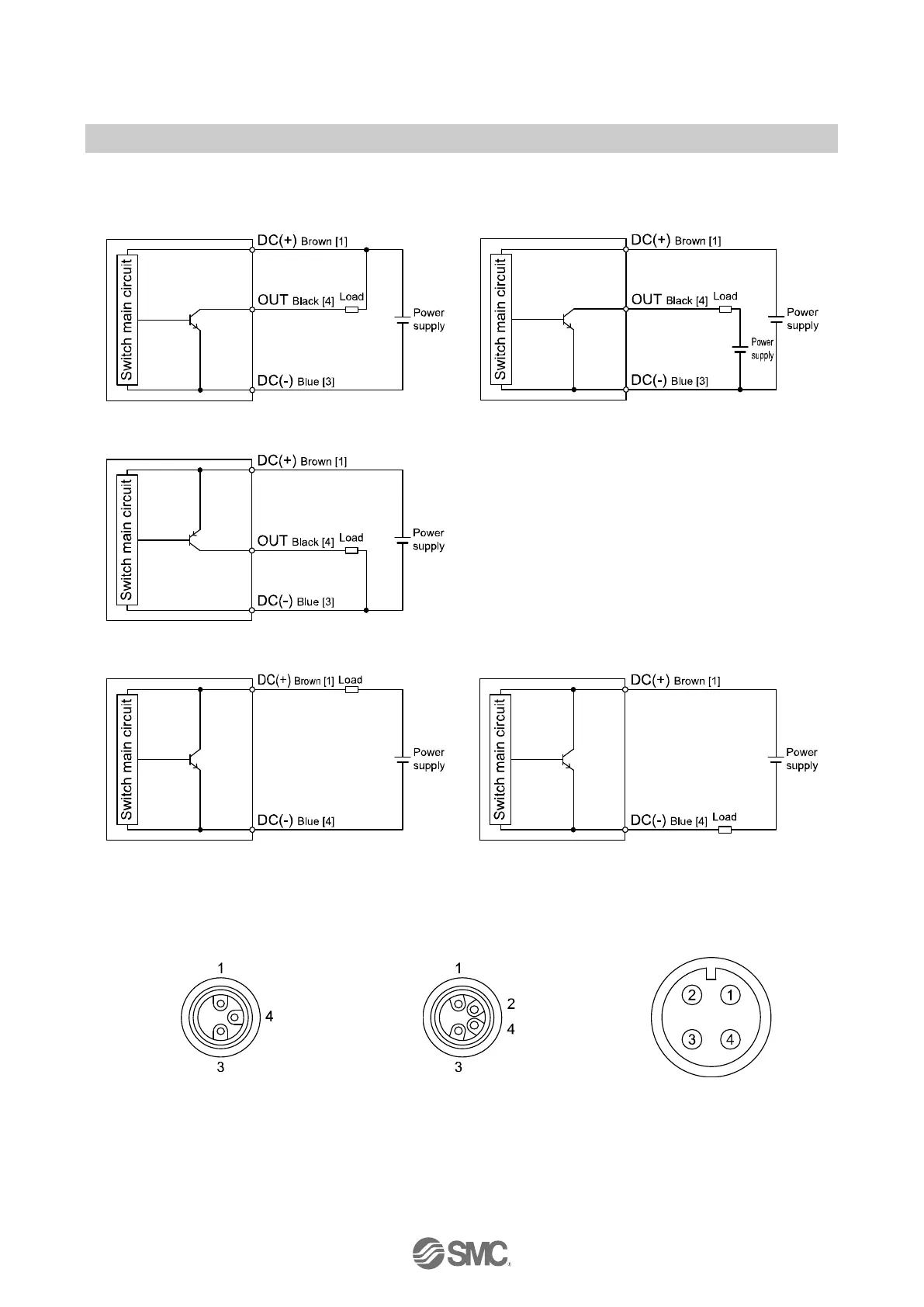

•Internal circuit
D-M9N(W/E)(V)
(When switch power supply and load power supply
are separated.)
D-M9P(W/E)(V)
D-M9B(W/E)(V)
: The number marked on each lead wire color shows the pin number of pre-wired connector.
•Connection with PLC (sequence controller)
M8-3 pin connector
M8-4 pin connector
M12-4 pin connector
