Assembly
•Composing the unit as a manifold
: If the unit was purchased as a manifold, the work described in this section is not necessary.

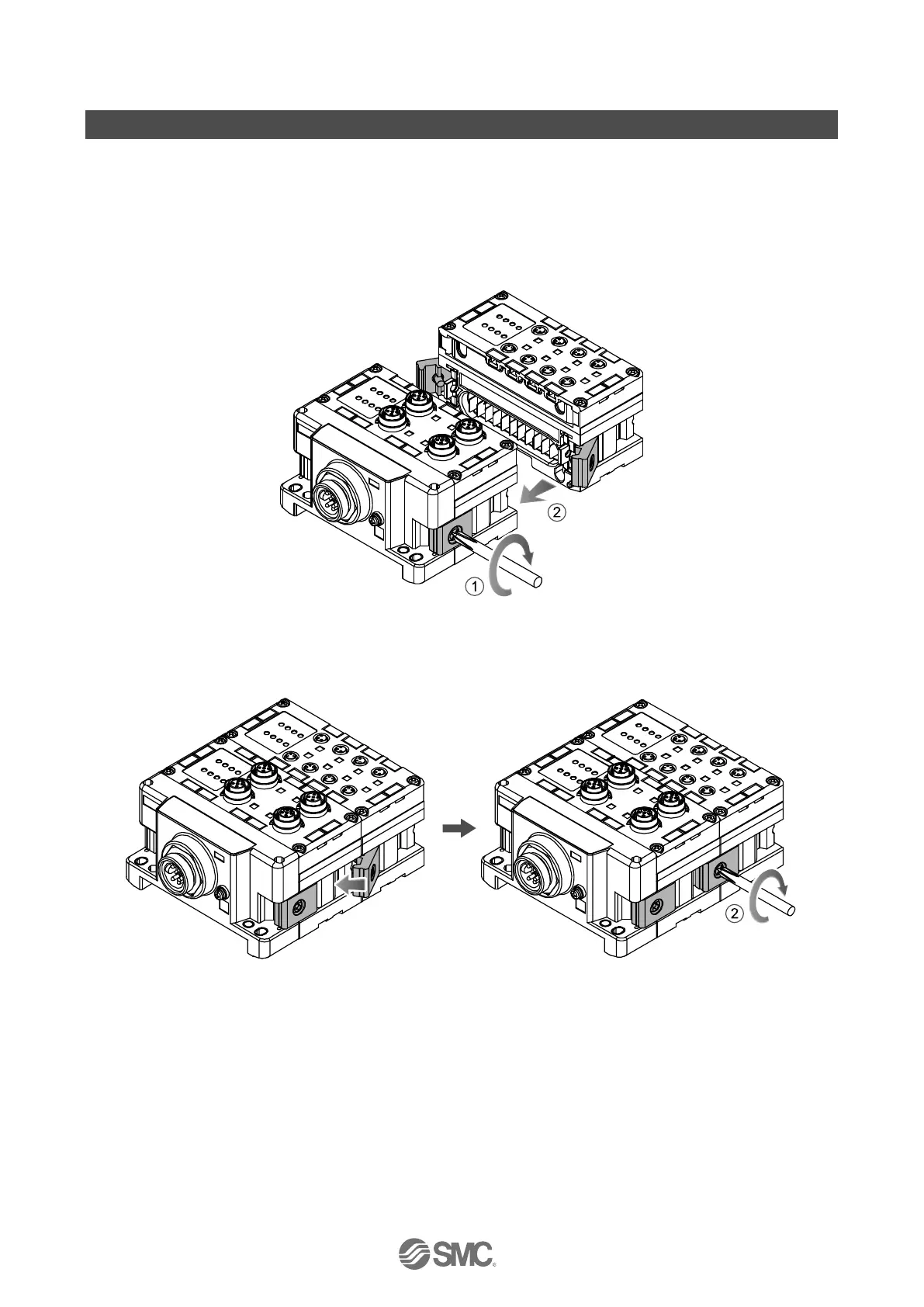

(1) Connect the unit to the end plate.
Digital units, Analogue units, or IO-Link master units can be connected in any order.
(Tightening torque: 1.5 to 1.6 Nm)
(2) Add more units.
Up to 9 units (including the SI unit) can be connected to one manifold.
(3) Connecting the SI unit.
After connecting the necessary I/O units, connect the SI unit.
Connecting method is the same as preceding (1), (2).
