-124-
No. DOC1045423

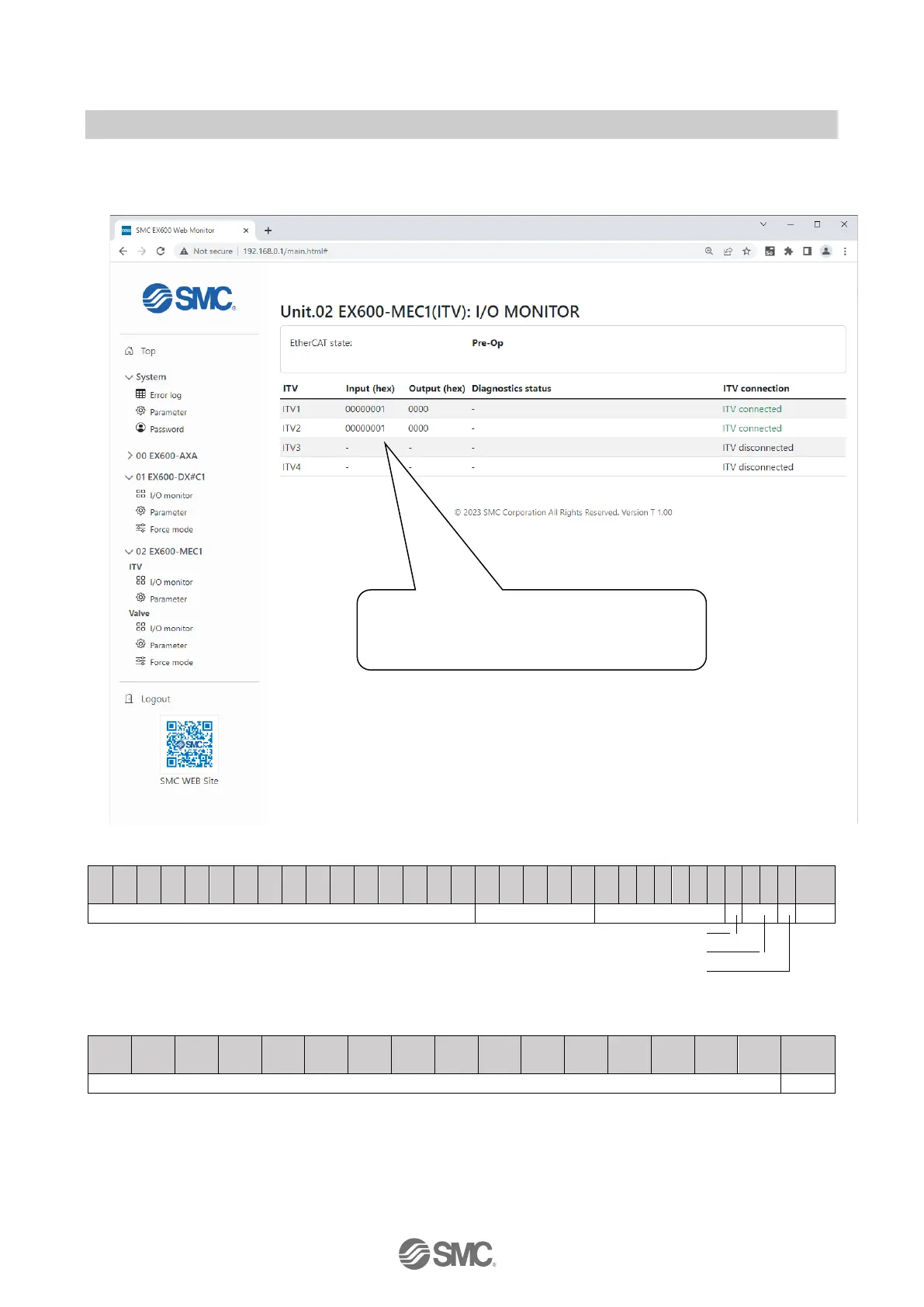

(13) The ITV module’s I/O MONITOR displays process data, diagnostics, and communication
status between the SI unit and the ITV module as shown below.
Input
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
bit
offset
Output pressure value
Abnormal
Warning
Value
Notification
Not used
SSC1
Output
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
bit
offset
Set pressure value
value
Note: For details on ITV module process data, refer to the ITV module operation manual. (DIY-60L00-OM002)
The meanings of the bytes displayed are as follows.
This display does not change depending on the
“system parameter (Byte order)”.
