SMC Networks EX600-ED Series User Manual

-29-
No. DOC1045423

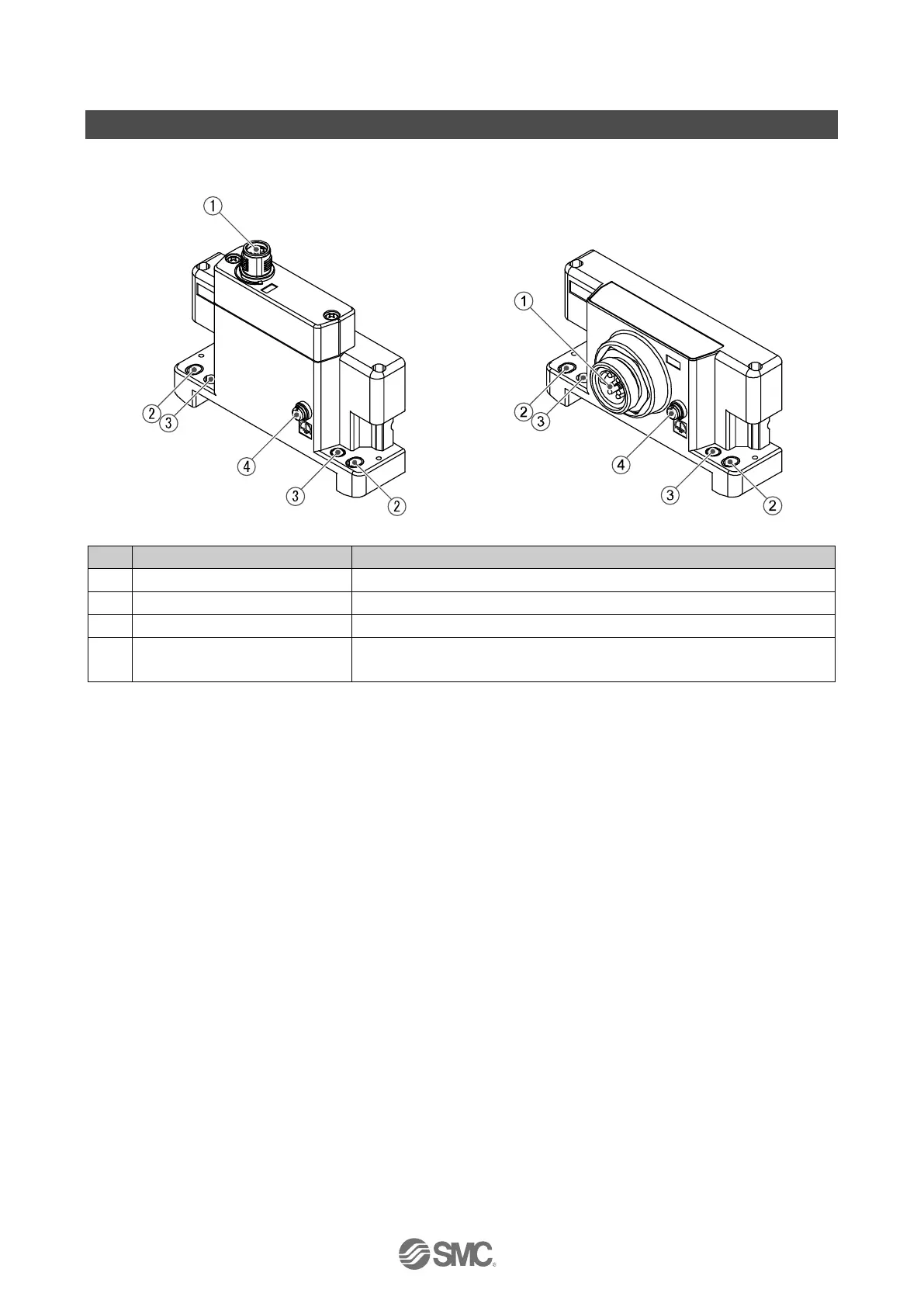

Summary of Product parts
•EX600-ED2-#
•EX600-ED3-#
No.
Description
Function
1
Power connector (PWR IN)
Connector for power supply to SI unit and I/O unit.
2
Fixing hole for direct mounting
Holes for direct mounting.
3
DIN rail fixing hole
Holes for fix DIN rail mounting.
4
F.E. terminal (M3)

Functional Earth terminal - must be connected directly to system earth
(ground).
: Individual grounding should be provided close to the product with a short cable.
