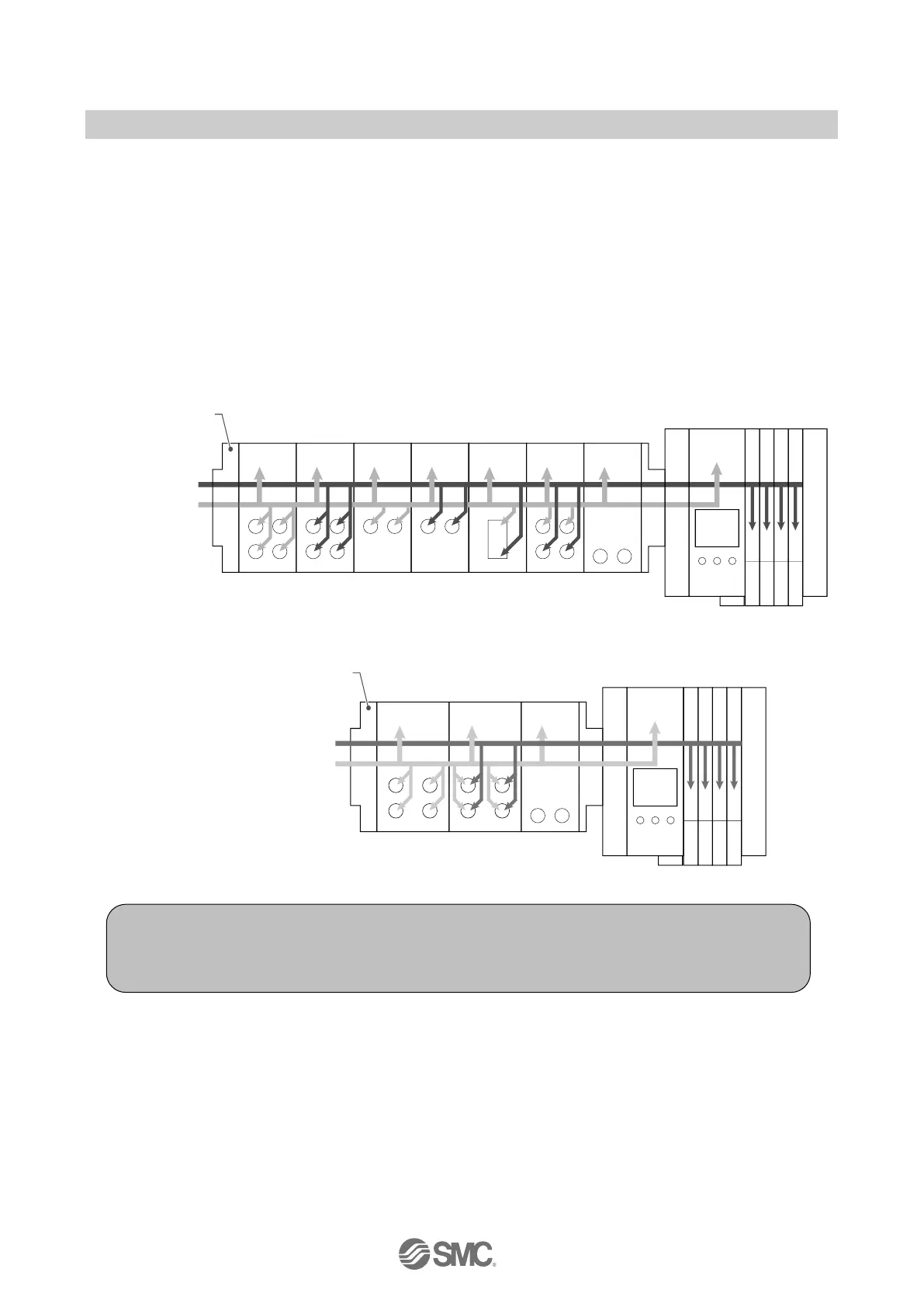

■Regarding the 2 types of power supply
The power supply consists of two power supply systems as follows:
•Power supply for control and input (US1): Supplying power for control of each I/O unit, SI unit, and ITV
module. This also supplies power to device connected to the
input port of digital unit, analogue unit, and IO-Link master unit
(L+).
•Power supply for output (US2): Supplying power for solenoid valve manifold. This also supplies power to
equipment connected to the output port of digital unit, analogue unit, and
IO-Link master unit (P24).
End plate
Digital
input
unit
Digital
output
unit
Analogue
input
unit
Analogue
output
unit
Digital
I/O
unit
Analogue
I/O
unit
SI
unit
Solenoid valve
manifold
Power supply
for output (US2)
Power supply
for control and
input (US1)
ITV
module
Control Control Control Control Control Control Control
Control
End plate
IO-Link
master
(class A)
SI
unit
Solenoid valve
manifold
Power supply of output (US2)
Power supply for control and input (US1)
ITV
module
Control
Control
IO-Link
master
(class B)
P24
L+
ControlControl
●Precautions for handling
Be sure to fit a seal cap on any unused connectors. Proper use of the seal cap enables the
enclosure to achieve IP67 specification.
