○Mounting with panel mount adapter

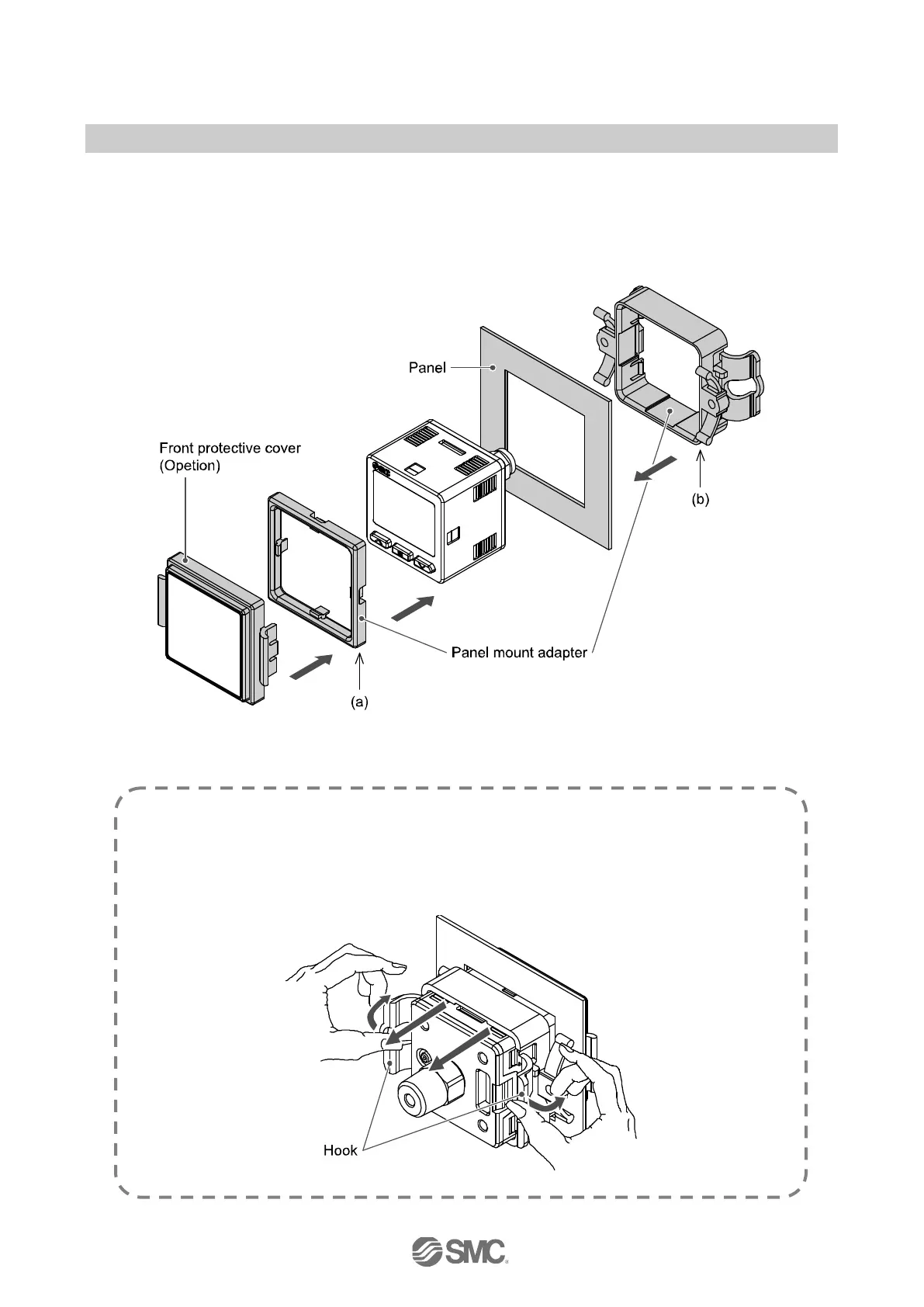

●Mount part (a) to the front of the body and fix it. Then insert the body with (a) into the panel until (a)
comes into contact with the panel front surface. Next, mount part (b) to the body from the rear and insert
it until (b) comes into contact with the panel for fixing.
•Panel mount adapter (Part No.: ZS-46-B)
Panel mount adapter + Front protective cover (Part No.: ZS-46-D)
∗: The panel mount adapter can be rotated through 90 degrees for mounting.
How to remove the panel mount adapter
●When removing the digital pressure switch with panel mount adapter from the installation,
pull it forward while expanding the hooks on each side as shown below.
If the panel mount adapter is pulled forward with the hook caught, the product and the
adapter may be damaged.
