-34-
No.PS※※-OMV0006-D

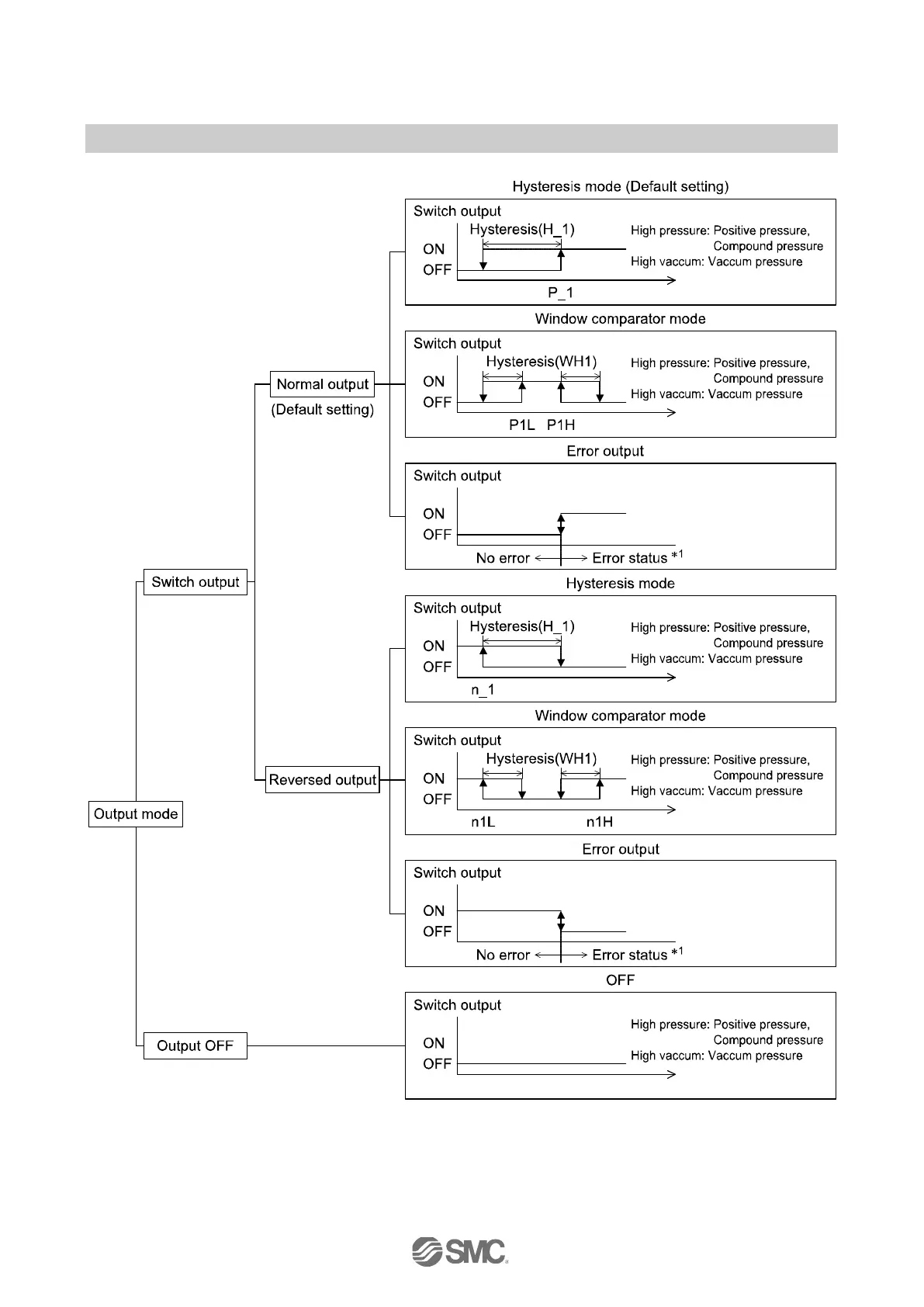

●List of output modes
∗1: The applicable errors are Er6, 8, 9, 15 as well as Er1 (excluding the error output).
∗: The chart above shows the OUT1 operation.
For OUT2, all "1" in the chart will be changed to "2". (example P_1→P_2)
If the point at which the switch output changes is outside of the set pressure range due to the selection
of normal or reversed output, the hysteresis value is automatically adjusted.
