SMC Networks ISE30A Series - List of Output Modes; Normal Output Modes; Reversed Output Modes

-29-
No.PS※※-OML0003-J

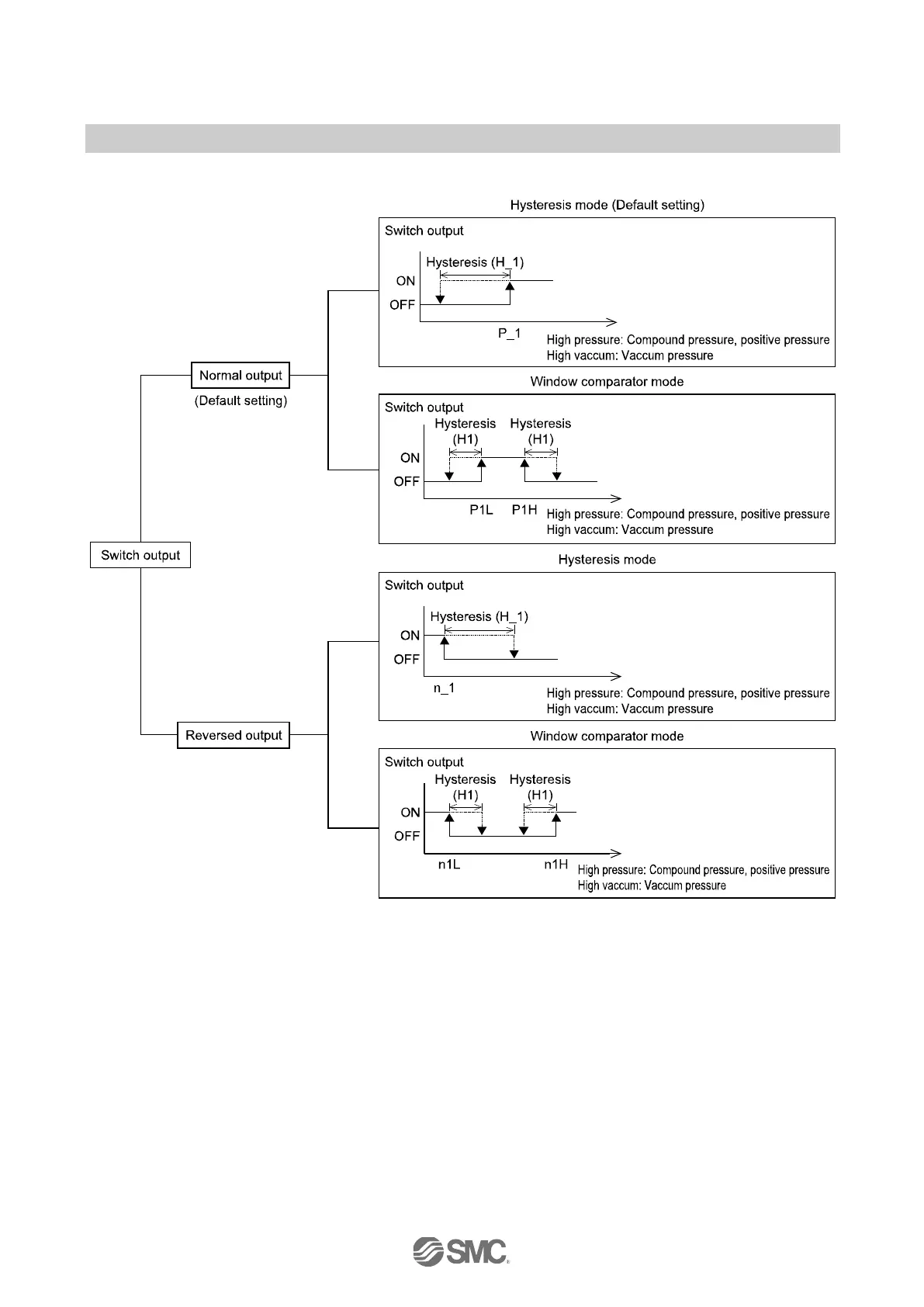

•List of output modes
If the set point when the switch output is changed is outside the set pressure range due to switching
between normal and reversed output, the hysteresis will automatically be compensated.
∗: The above figure shows the operation of OUT1.
For the operation of OUT2, "1" shown in the figure above becomes "2". (Ex) P_1 → P_2
