- 31 - Rev 2
Figure 16 - ITV System Information web page
The “Network” section displays the current ITV network communication settings. Some of these
settings can be changed by logging into the ITV. See the instructions on the Network Page.
The “Manufacturing Information” display the version of SMC firmware. Please make note of this
information if contacting SMC for technical support.
21.2. Network Tab
When Network is selected, the Network page will be displayed to show the communication and
connection status of the ITV. On this page login, network configuration and operating parameters
can be changed.

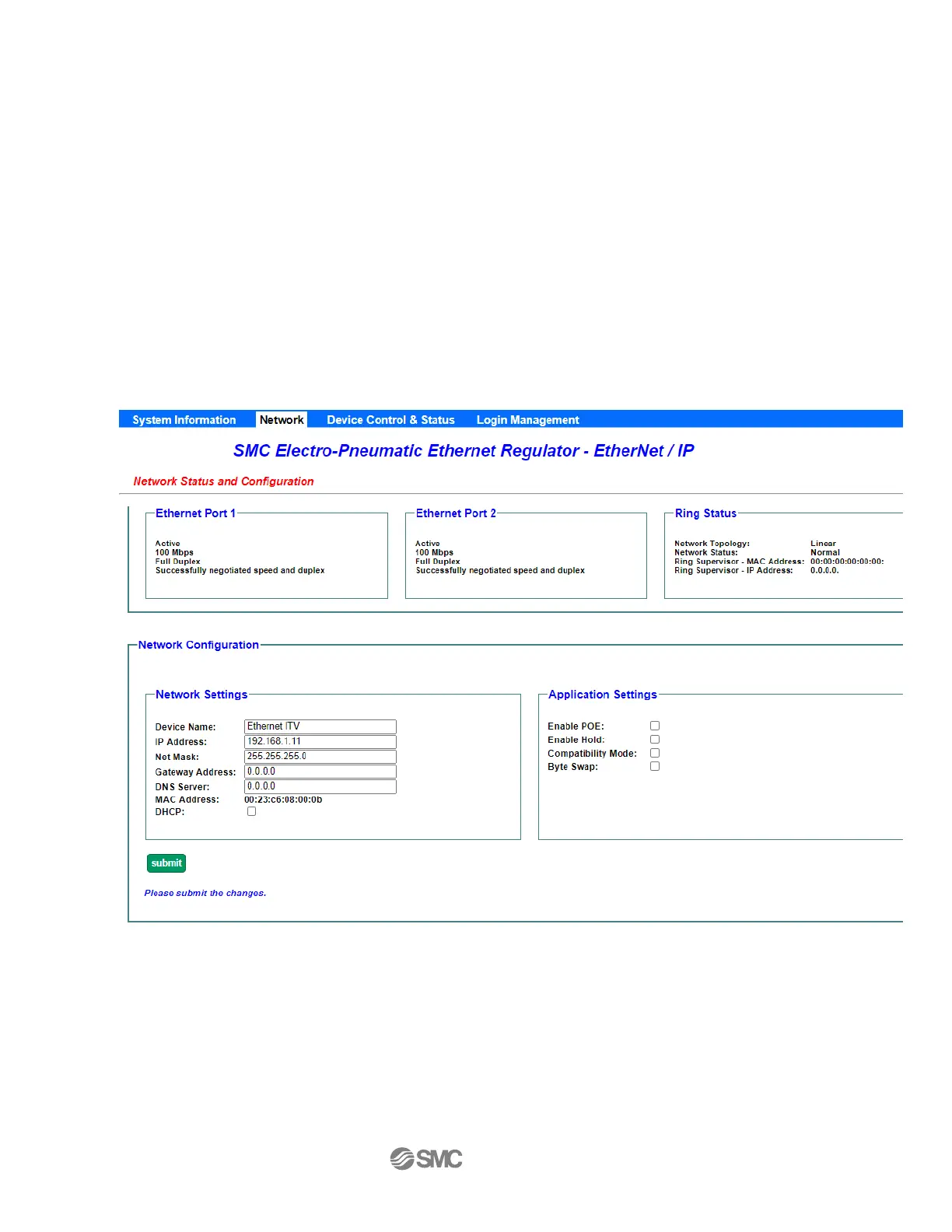

Figure 17 - ITV Network web page
Network Communication Status - displays connection information for Ethernet Port 1, Ethernet
Port 2 and Ring Status. From Figure 17 - ITV Network web page you can see Ethernet Port 1 is active at
100Mbps.
Network Configuration - area allows you to configure the following network related Items. When
all items are modified, press “submit”, or the Enter key for the changes to take effect. These
changes will take effect immediately.
