Doc.No.DIT-69900-OM005-E
1
N/A
Power supply and
communication connector
Power LED
Communication
LED

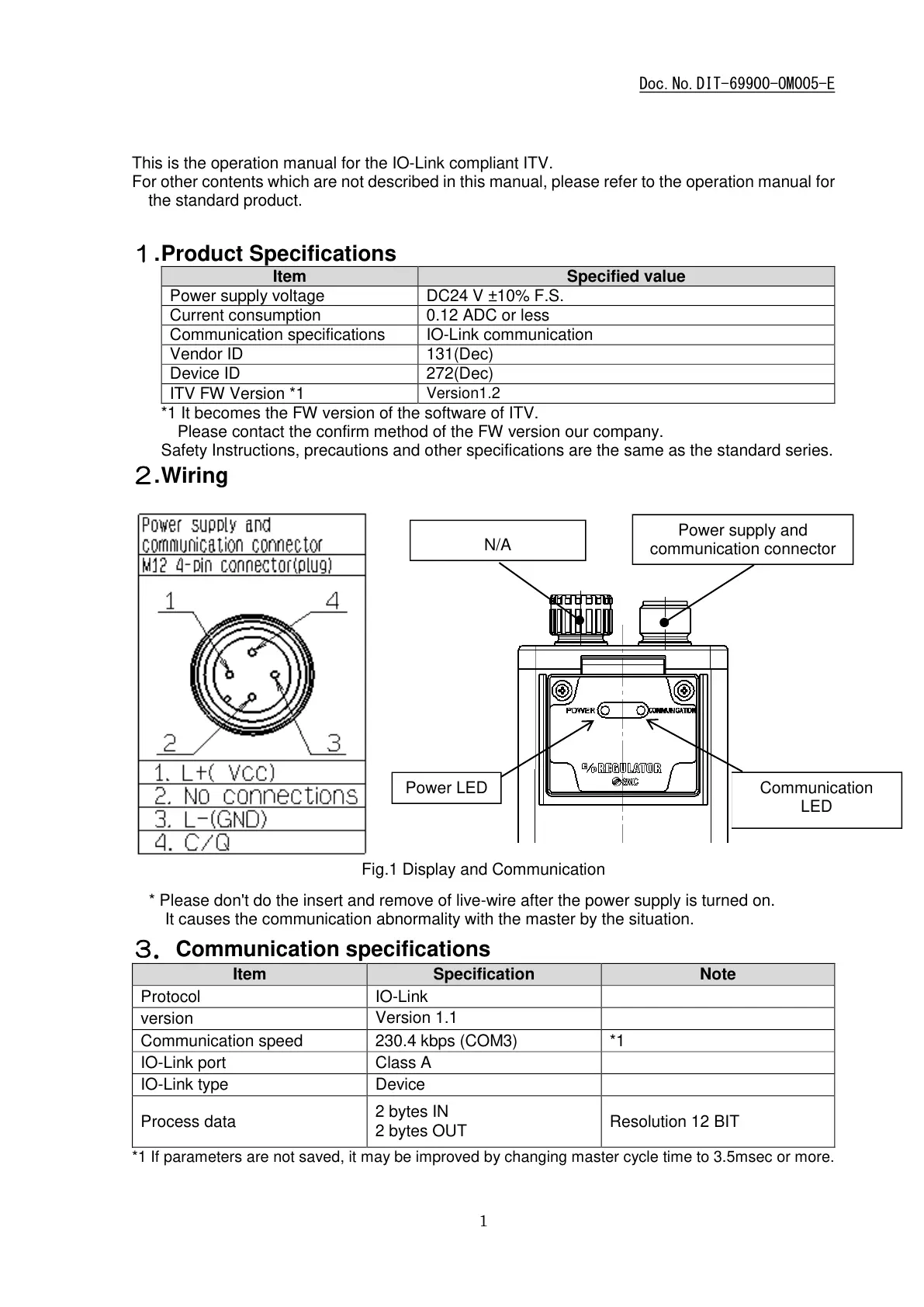

This is the operation manual for the IO-Link compliant ITV.
For other contents which are not described in this manual, please refer to the operation manual for
the standard product.
. Product Specifications
Item
Specified value
Power supply voltage
DC24 V ±10% F.S.
Current consumption
0.12 ADC or less
Communication specifications
IO-Link communication
Vendor ID
131(Dec)
Device ID
272(Dec)
ITV FW Version *1
Version1.2
*1 It becomes the FW version of the software of ITV.
Please contact the confirm method of the FW version our company.
Safety Instructions, precautions and other specifications are the same as the standard series.
. Wiring
Fig.1 Display and Communication
3.Communication specifications
Specification
Note
IO-Link
Version 1.1
230.4 kbps (COM3)
*1
Class A
Device
2 bytes IN
2 bytes OUT
Resolution 12 BIT
*1 If parameters are not saved, it may be improved by changing master cycle time to 3.5msec or more.
* Please don't do the insert and remove of live-wire after the power supply is turned on.
It causes the communication abnormality with the master by the situation.
2020-11-0216:16
DI156249
