3.5 Signal

The Controller uses:

• Two Ampseal connectors:

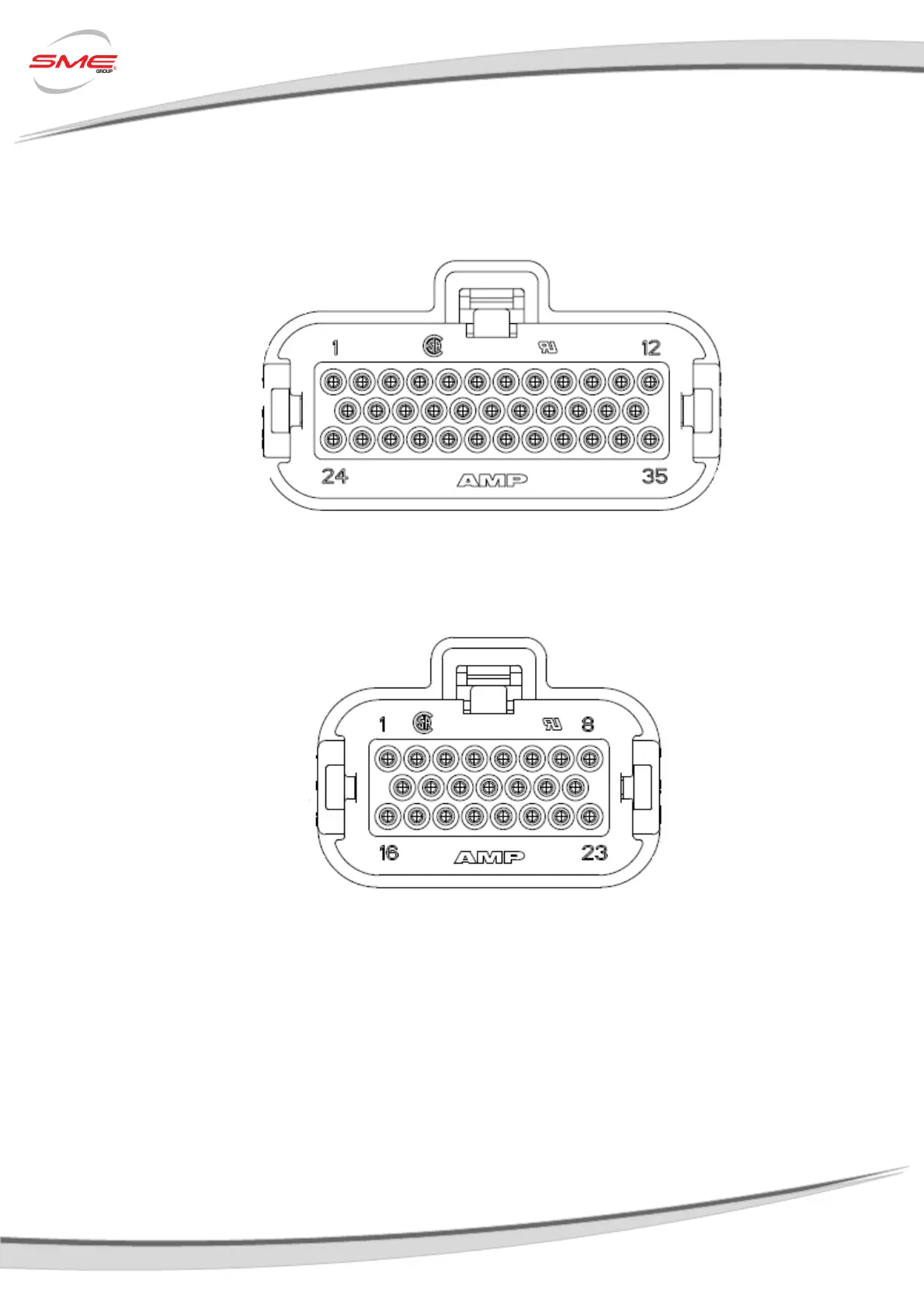

Figure 9 - Ampseal Connector K1

Figure 10 - Ampseal Connector K2

Refer to the following specifications for these connectors:

• Number of Positions: 35 and 23 Positions

• Mounting Style: Wire

• Termination Style: Crimp

• Contact Type: Plug

• Current Rating: 17 A

• Housing Material: Thermoplastic
