3.5.3 Driver Outputs (PWM)
Driver Outputs on Controller
Pin Meaning Pin Meaning
K1 - 10 +12V Out K1 - 28 Driver Output 3 (Max 2A)
K1 - 25 Coil Return K1 - 29 Driver Output 4 (Max 2A)
K1 - 26 Driver Output 1 (Max 2A) K1 - 35 +5V Out
K1 - 27 Driver Output 2 (Max 3A)
Wiring
The Driver Output (low side output) is the negative reference applied to the load. The positive
reference is given by the other pin connected:

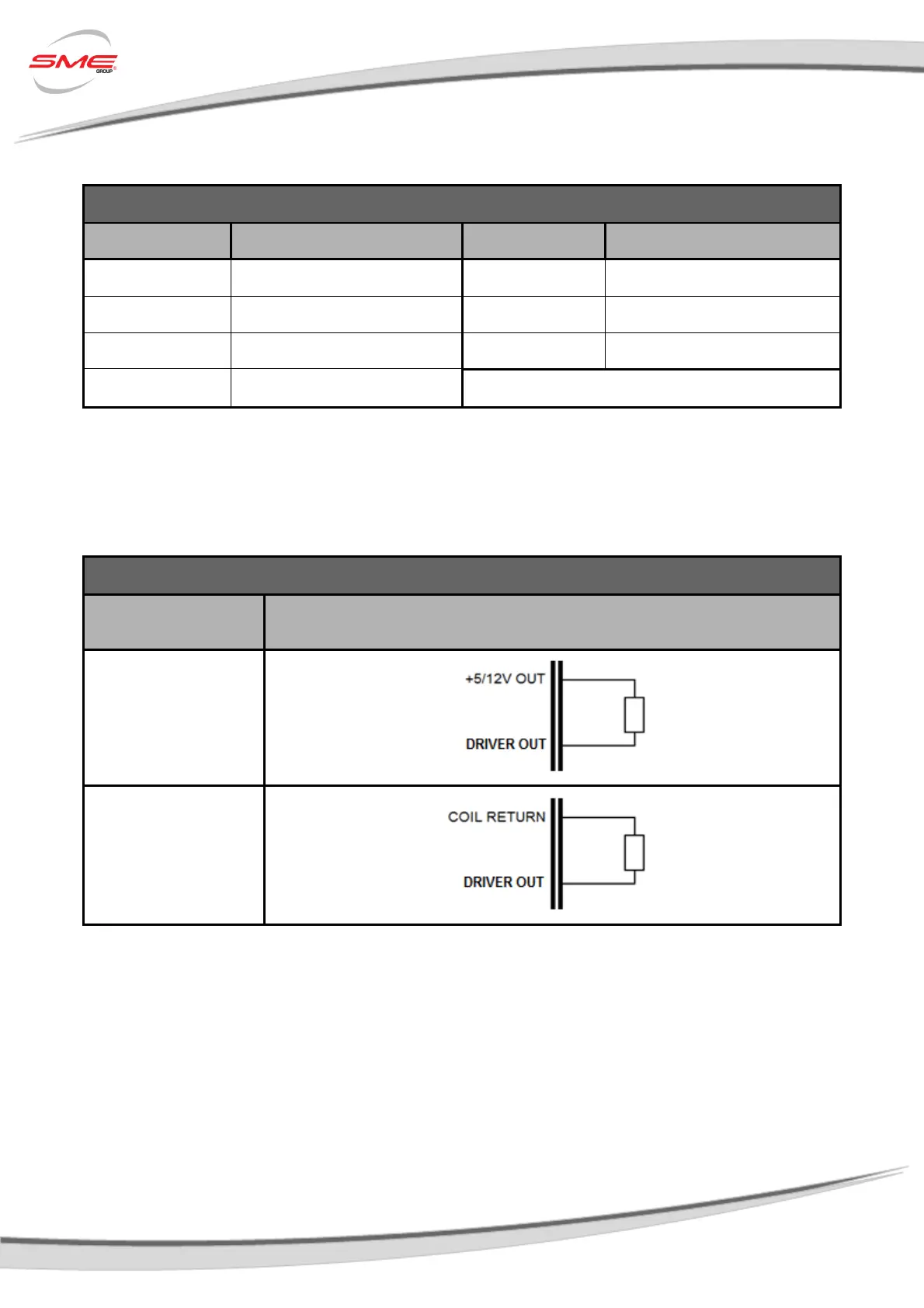

Driver Outputs Wiring on Controller
Positive Reference How to wire
Controller +5/12V
Battery Voltage
