12
10. Cartridge Replacement, Removal / Installation
Please note:
The Tonearm and Cartridge are pre-installed and aligned
at the factory. It is advised that if a digital cartridge scale
is available to check that the playing weight has remained set at 2.30 grams during
transit.
1. Before removal and installation of the cartridge, see that its stylus guard is in position as a
precaution against accidental damage.
The Siltech silver cartridge leads have 1mm diameter receptacles for the headshell and
standard 1.25mm for the cartridge. The latter may require adjustment with pliers or a
screwdriver blade for a snug fit on non-standard terminals.
Connections to the cartridge must never be made by direct soldering.
The tonearm colour coding is as follows:
Red - right channel Green - right channel ground
White - left channel Blue - left channel ground
2. The Siltech silver cartridge leads, Part No. 5899TK1 can be replaced and may be obtained
from your dealer or SME Ltd..

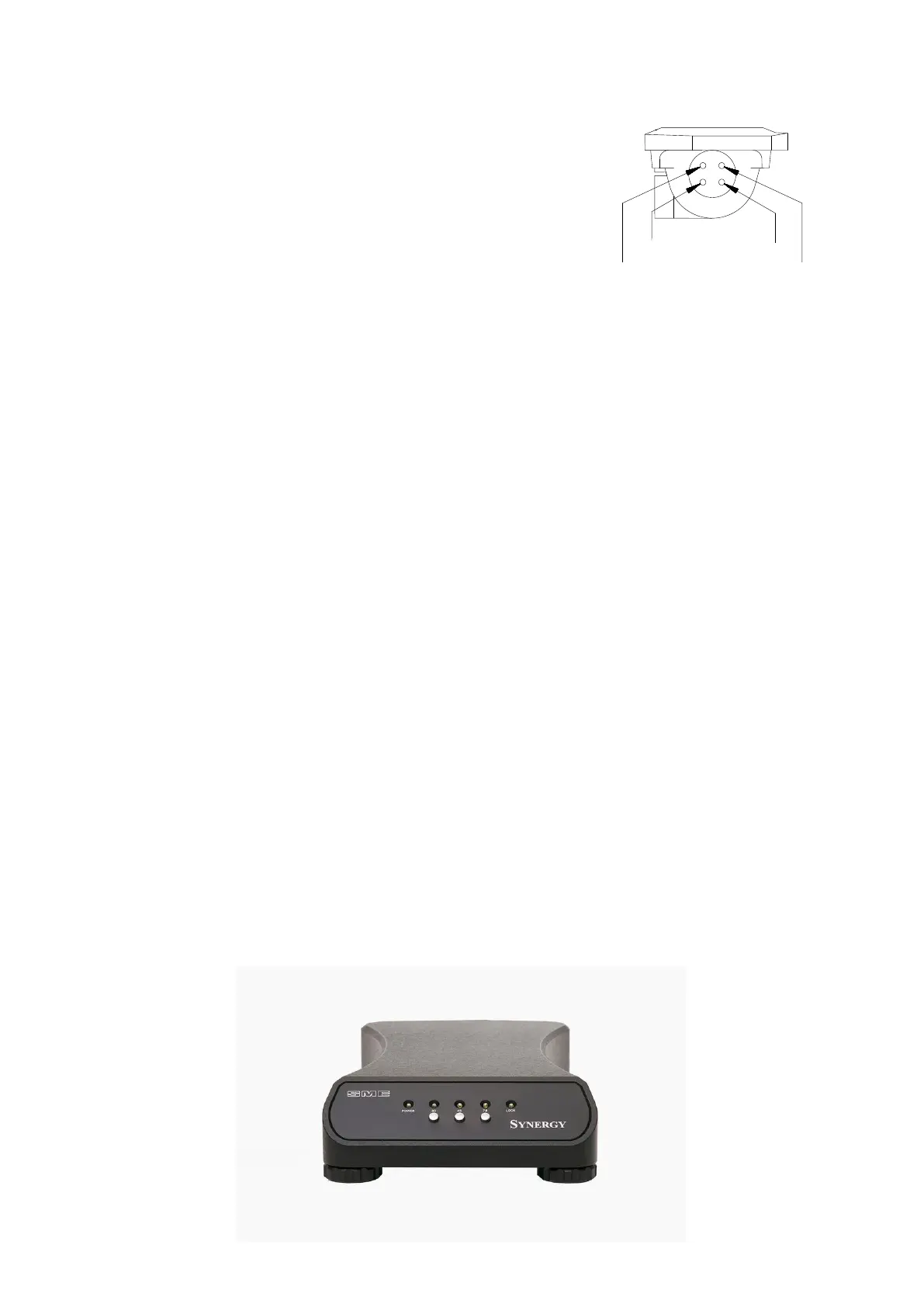

11. Operation - Turntable Speed Adjustment
The SYNERGY precision integrated turntable is extensively run-in and it’s speeds set
before leaving the factory. If you should wish to check the speed settings and make your
own adjustments, the procedure is as follows:
1. Place the Stroboscopic Disc (1087) on the platter. Re-check the drive belt for centrality on
the motor pulley.
2. Press button marked 33 once to start the turntable rotating, the LOCK LED blinks until the
speed stabilises (for up to 25 seconds) and then becomes constant indicating that the
selected speed is locked.
