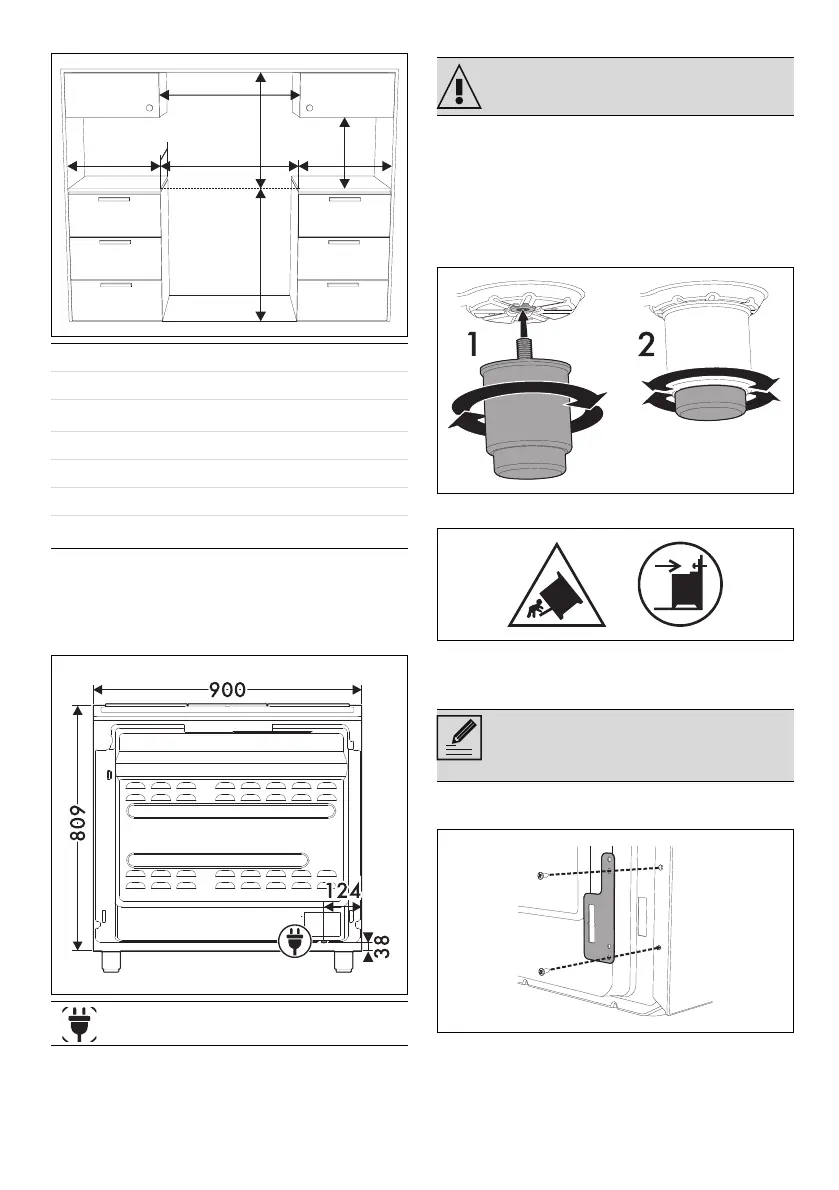

INSTALLATION - 6391477A441/D
Appliance overall dimensions
1
Minimum distance from side walls or other
flammable material.
2
Minimum cabinet width (=A)
Appliance dimensions
Levelling the appliance
The appliance must be level on the floor in order
to ensure greater stability.
After making the gas and electrical connections,
screw on the four legs supplied with the
appliance (1). Screw or unscrew the feet at the
bottom until the appliance is stable and level on
the floor (2).
Fastening to the wall
The symbols above indicate the danger if the
anti-tip are not installed devices and the
importance of their correct installation.
1. Screw the wall fastening plate to the rear of
the appliance.
2. Adjust the height of the 4 legs.
A 900 mm
B 600 mm
C
1
min. 150 mm
D 879 ÷ 919 mm
H 750 mm
I 450 mm
L
2
900 mm
Position of electrical connection
See General safety instructions.
The anti-tip devices must be installed in
order to prevent the appliance from
tipping over.
