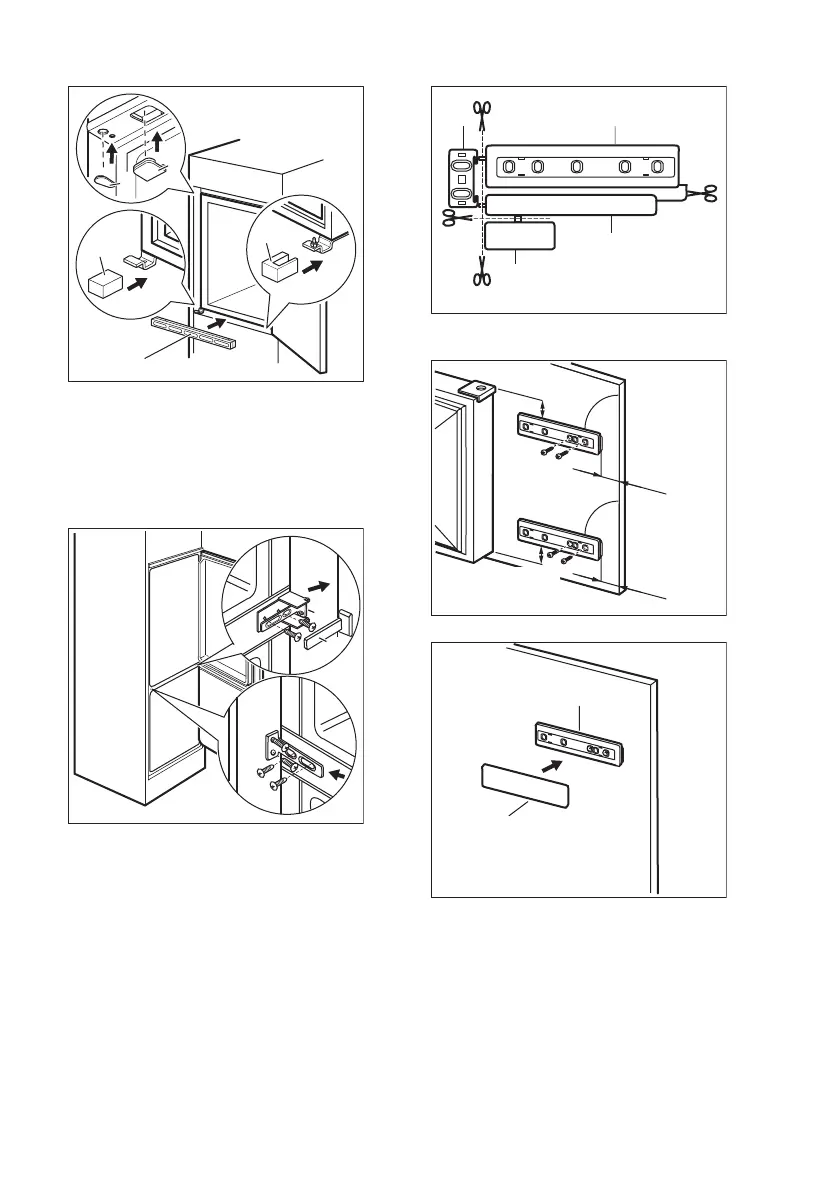

Install the vent grille (B).
11.
Attach the hinge covers (E) to the hinge.
12.
Connect the appliance laterally to the
kitchen furniture sidewall.
13.
Loosen the screws of the part (G) and
move the part (G) till the furniture
sidewall.
G
H
14. Tighten the screws of the part (G) again.
15. Attach the part (H) to the part (G).
16. Disconnect the parts (Ha), (Hb), (Hc)
and (Hd).
Hb Ha
Hc
Hd
17.
Install the part (Ha) on the inner side of
the kitchen furniture.
ca. 50 mm
ca. 50 mm
21 mm
90°
90°
21 mm
18. Push the part (Hc) on the part (Ha).
Ha
Hc
19. Open the appliance door and the
kitchen furniture door at an angle of
90°.
20. Insert the small square (Hb) into guide
(Ha).
21. Put together the appliance door and the
furniture door and mark the holes.
