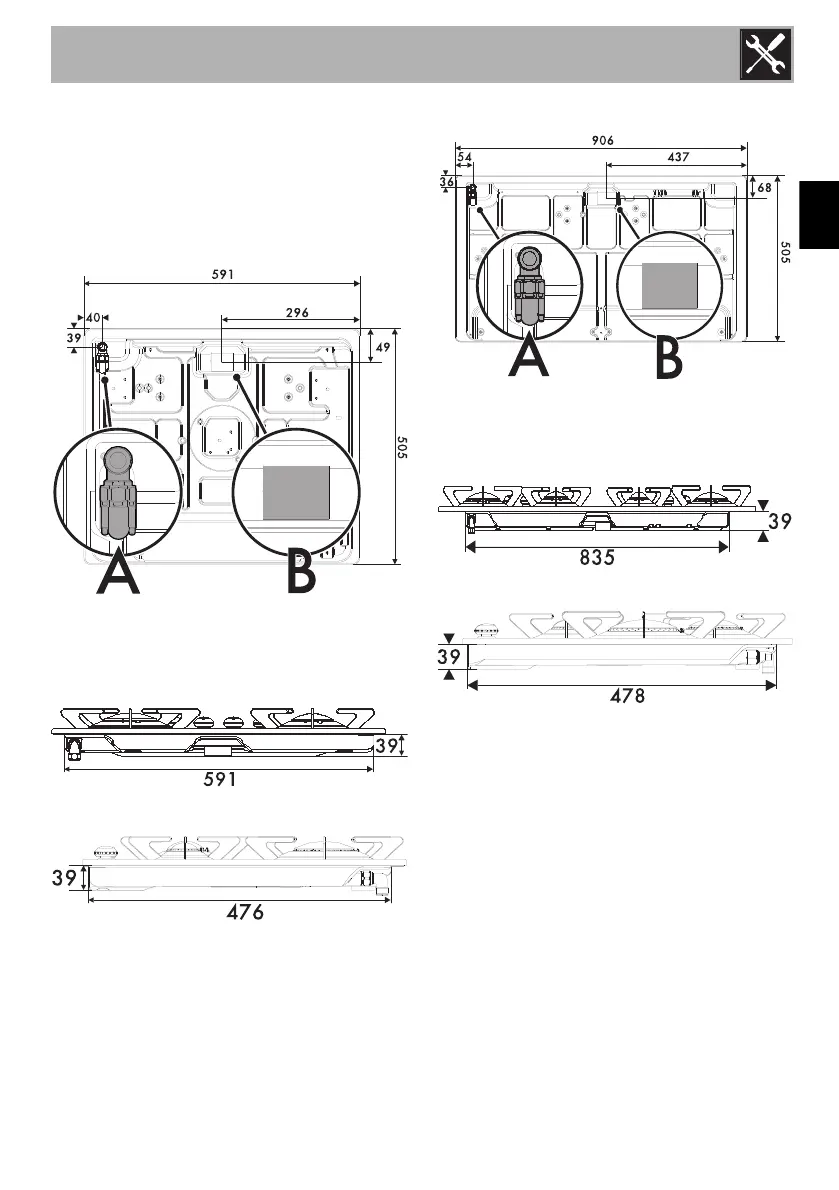

Dimensions: Location of gas and electrical
connections (measurements in mm)
60 and 72 cm models:
View from underneath
A Gas connection
B Electrical connection
View from the back
View from the right
100 cm models:
View from underneath
A Gas connection
B Electrical connection
View from the back
View from the right
