Instructions for the Installer
22
2.2 Fitting the gasket

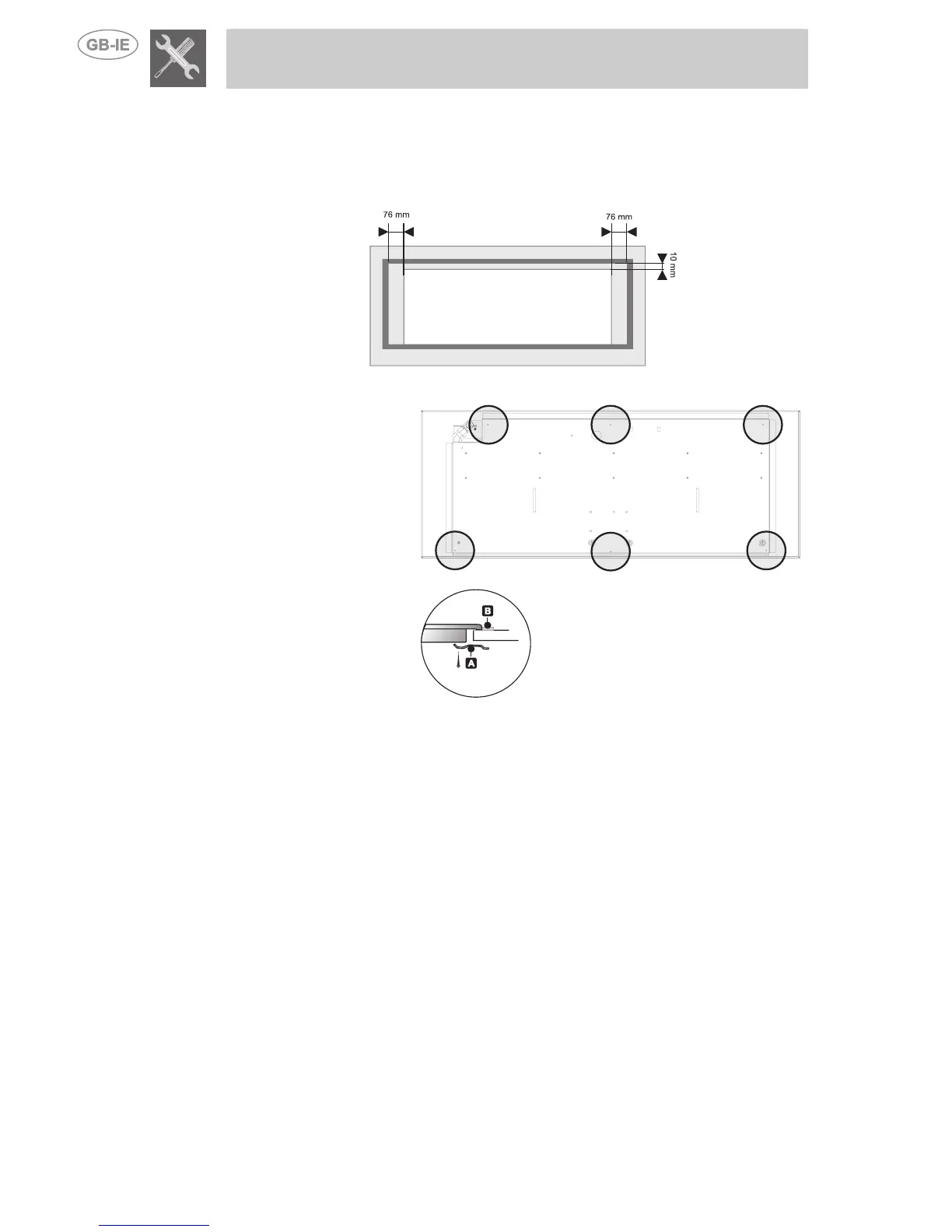

Fit the insulating gasket provided carefully around the outside edge of the hole made
in the top as shown below, pressing it down with your hands so that its entire surface
fits snugly. Follow the dimensions shown, bearing in mind that the long front edge
must be flush with the hole.
2.3 Fixing using brackets
Fix the hob to the
structure using the
brackets A provided.
Carefully trim off the
excess edge of the
gasket B. The
dimensions in the
drawing below refer to
the hole on the inside
edge of the gasket.
See right for the precise
holes to be used when
securing the hob to the
top correctly using the
brackets.
