Instructions for the Installer
26

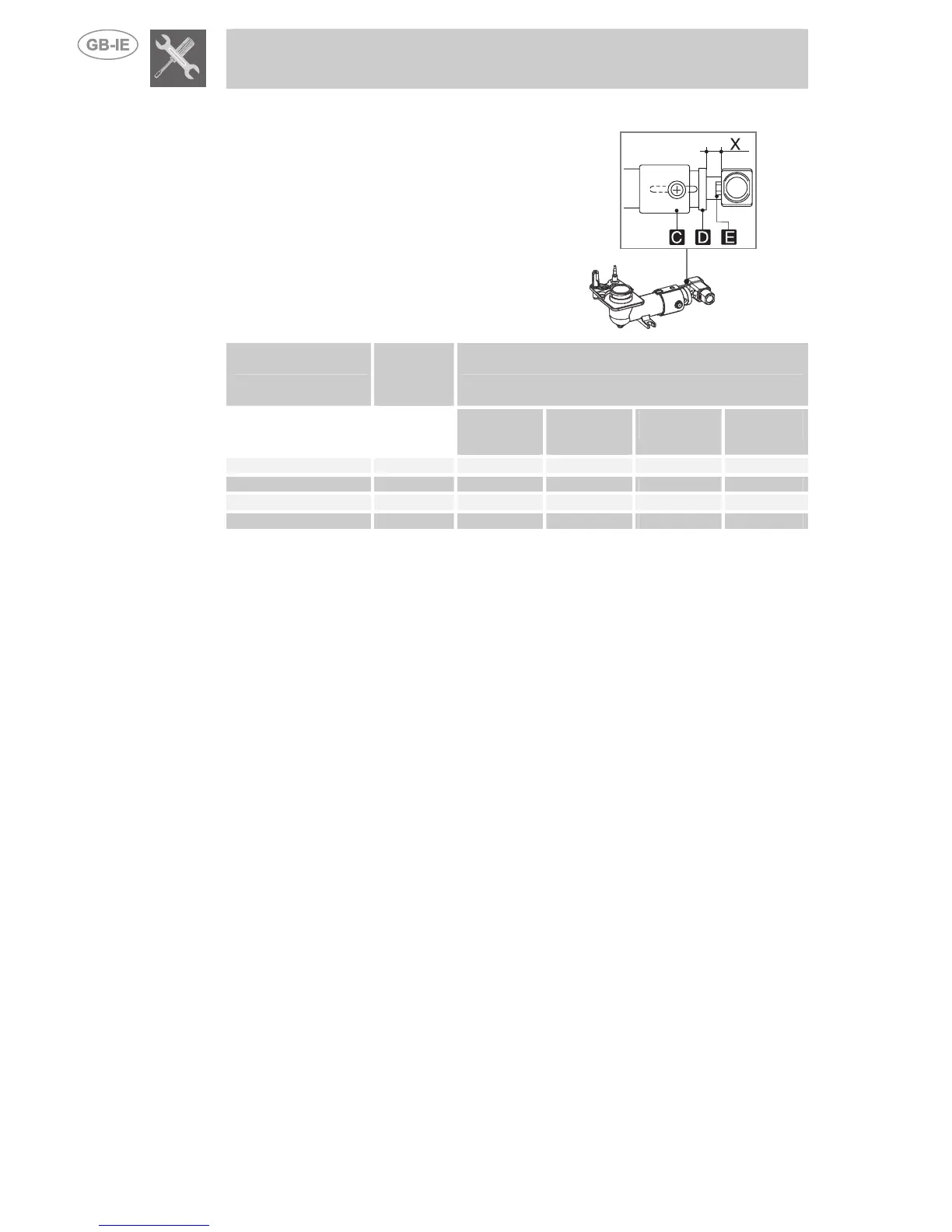

5.2 Adjusting for bottled gas
Undo the screw C and push the air regulator
D fully down.
Remove the nozzle E with a 7 mm spanner
and fit the suitable one, following the
instructions in the tables referring to the type
of gas to be used. The nozzle must not be
tightened with a torque of more than 3 Nm.
Regulate the air flow by sliding the
regulator D along until the distance
“X” stated in point "
0
Adjusting the primary air flow” is obtained.
Fix the regulator D by tightening the screw C.
Burner
Rated
heat
capacity
(kW)
Bottled gas – G30/G31 30/37 mbar
Nozzle
diameter
1/100 mm
Reduced heat
capacity
(W)
Flow rate g/h
G30
Flow rate
g/h G31
Auxiliary 1.05 48 400 76 75
Semi rapid 1.7 62 450 124 121
Rapid 3.0 82 1050 218 214
Ultra Rapid 4.2 98 1600 305 300
