Smeg SC445MX - Microwave Oven Description; Oven Components Overview; Control Panel and Indicators Explained

9
EN

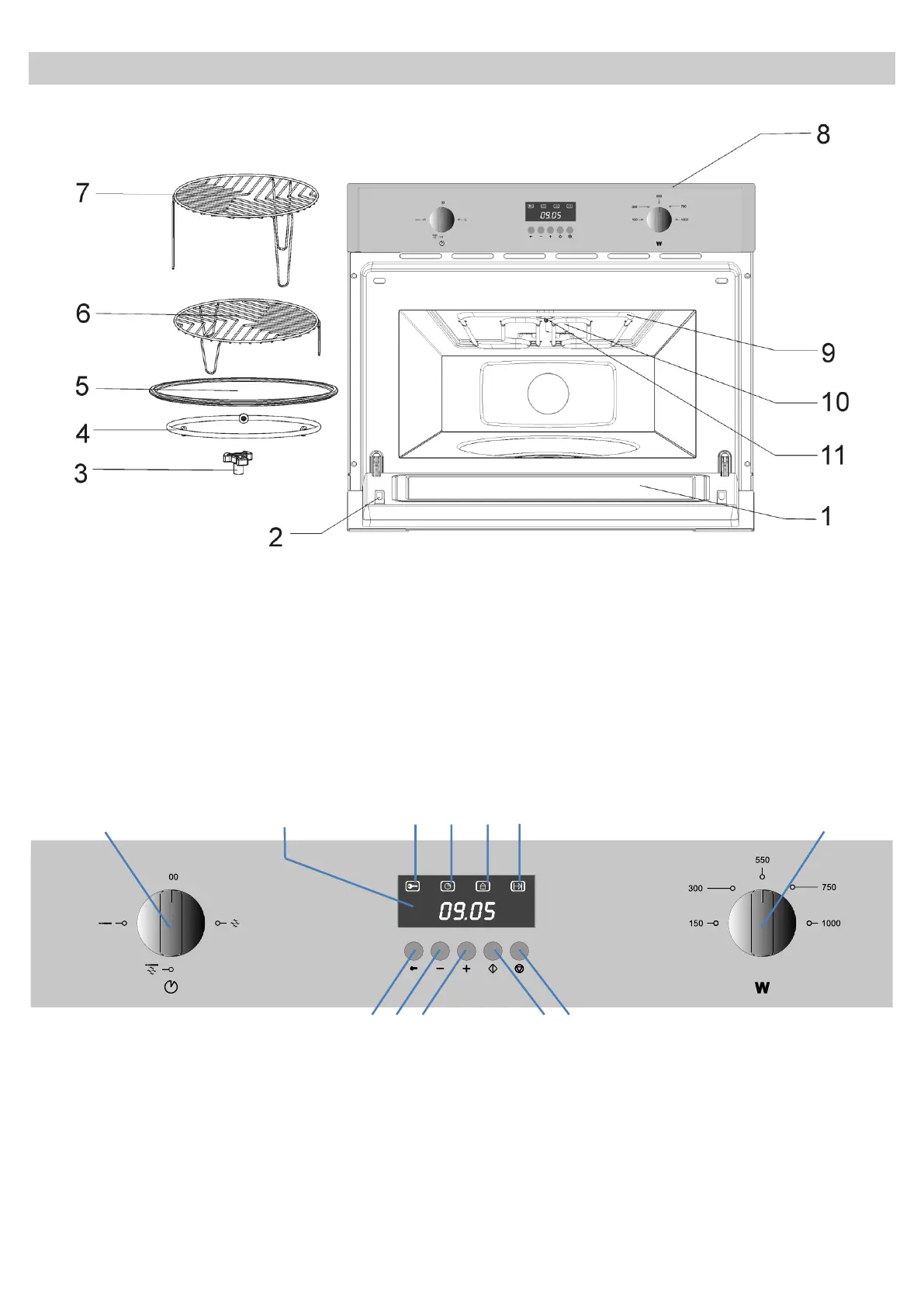

Description of microwave oven
1. – Door window glass
7. – High grille
2. – Catches
8. – Control panel
3. – Turntable support
9. – Grill
4. – Turntable ring
10. – Mica cover
5. – Turntable plate
11. – Lamp
6. – Low grille
2
3
1
75 864
a b
c
d
1. – Function selector
5. – ”-” key
a. – Child lock indicator light
2. – Display
6. – “+“ key
b. – Clock indicator light
3. – Microwave power level selector
7. – Start key
c. – Timer indicator light
4. – Child lock key
8. – Stop key
d. – Operating time indicator light
