INSTALLATION

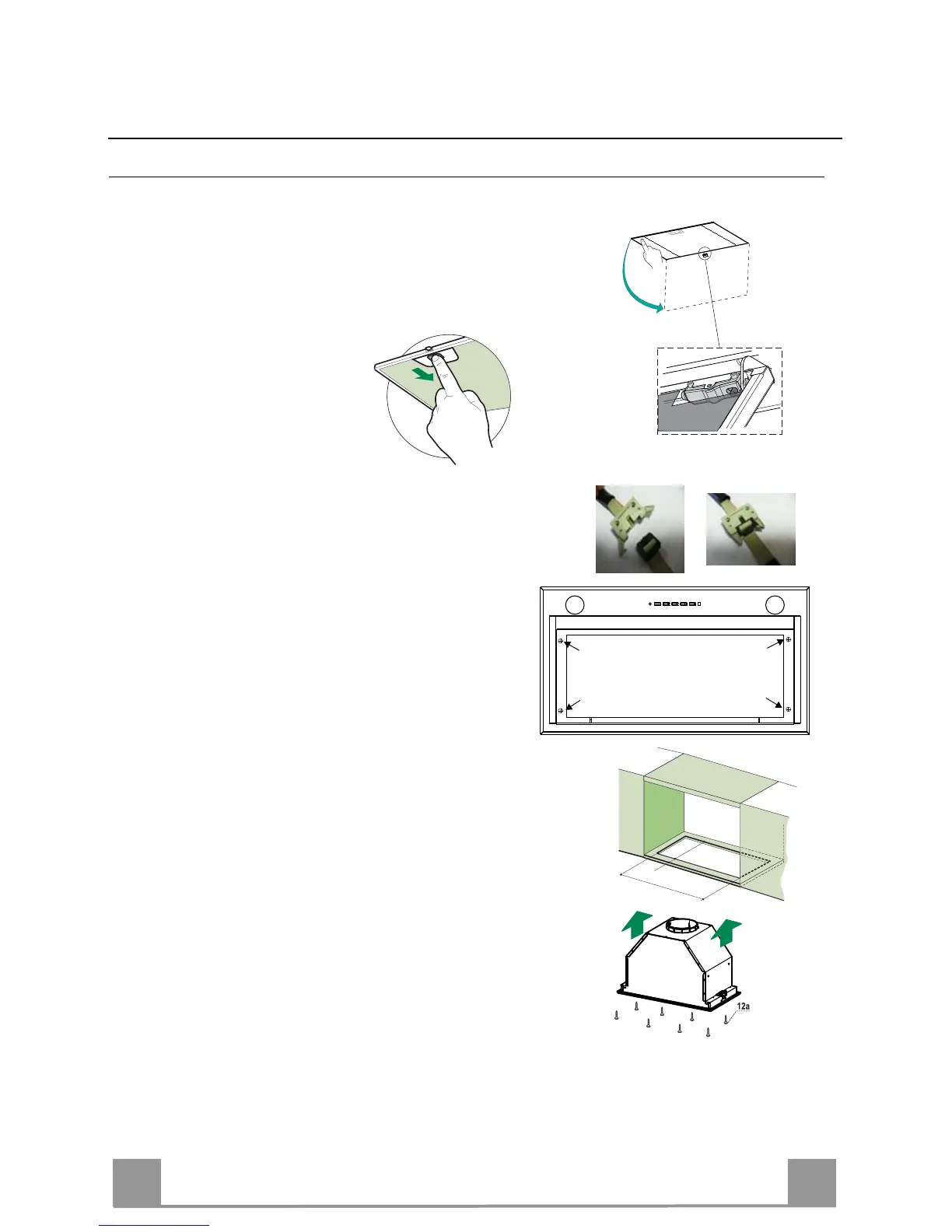

Fitting the Hood canopy
BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS:
• Open the Panel by pulling it.
• Remove grease filters.
• Disconnect the wires to the Commands at the connectors.
• Remove the frame by unfastening the 4 screws (2
on the right and 2 on the left).
• The Hood can be installed directly on the underside of the
wall unit (Minimum 650 mm from the Cooker Hob).
• Create an opening in the bottom of the wall unit, as shown.
• Fasten using the 8 screws 12a provided.
• Screw the Frame back into place using the 4 screws removed
as described above, re-connect the wires to the Commands,
replace the metal grease filter and close the Panel.
260
13
500 - 680
