Installation
46

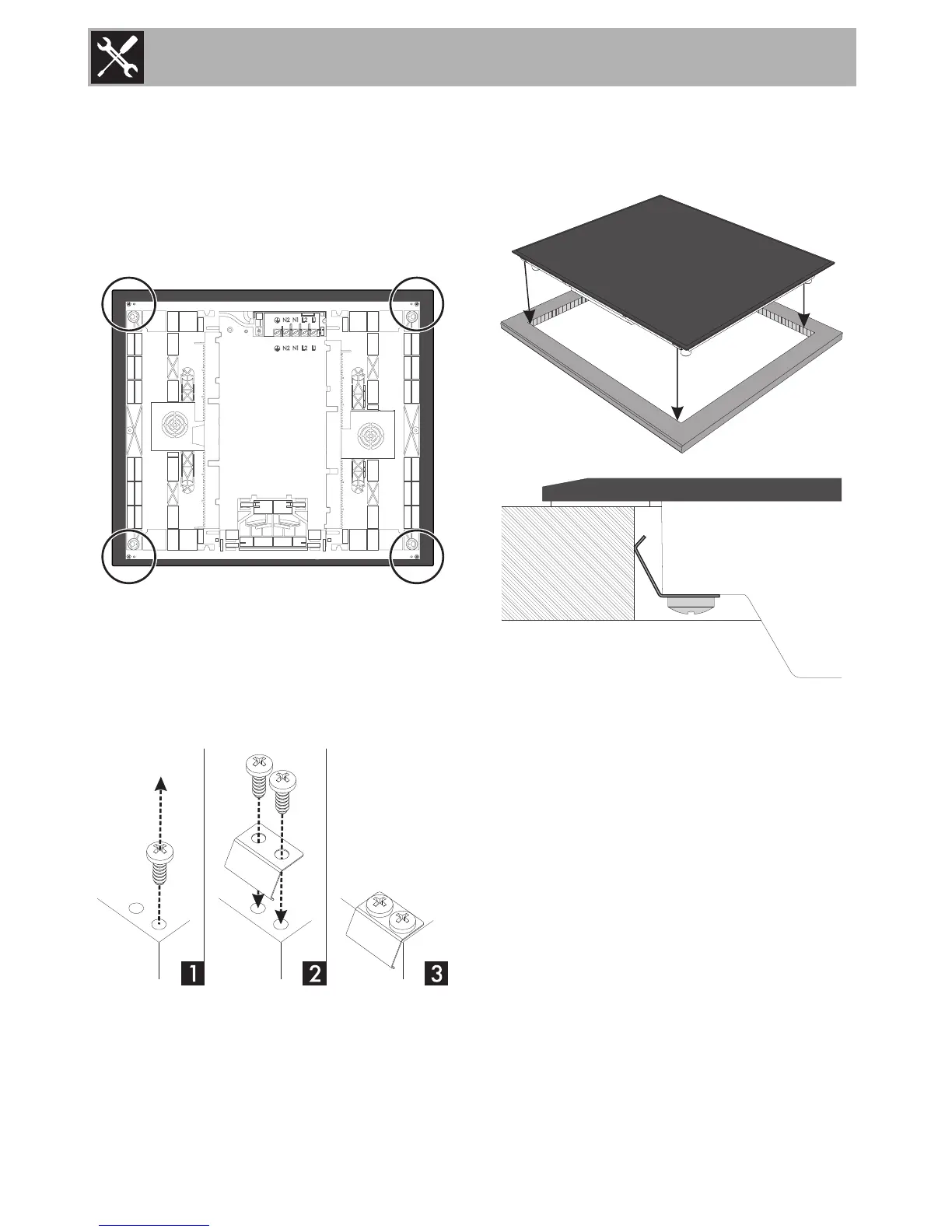

Fixing brackets
1. Before installing the appliance in the unit,
turn it upside down. Place the appliance
on a newspaper or soft surface to
protect the glass from damage and
scratches.
2. Remove the 4 screws from the corners of
the appliance (1), position the supplied
clips (2) and fasten them in place with
the 4 previously removed screws and the
4 supplied screws (3).
3. Carefully turn the appliance over again
and slide it into the hole in the unit until it
is correctly fixed in position.
