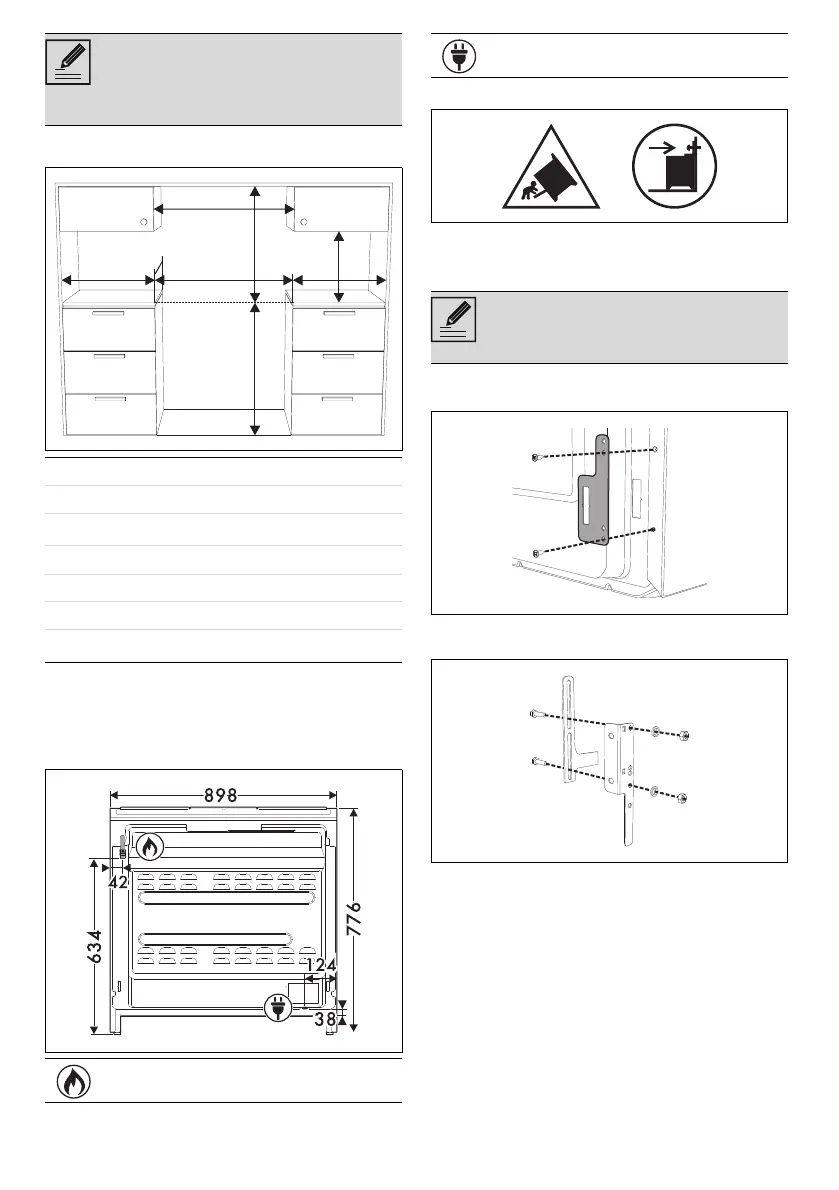

26 - INSTALLATION 91477A887/A
Appliance overall dimensions
1
Minimum distance from side walls or other
flammable material.
2
Minimum cabinet width (=A)
Appliance dimensions
Fastening to the wall
The symbols above indicate the danger if the
anti-tip are not installed devices and the
importance of their correct installation.
1. Screw the wall fastening plate to the rear of
the appliance.
2. Adjust the height of the 4 legs.
3. Assemble the fastening bracket.
If a hood is installed above the
appliance, refer to the hood instructions
manual to make sure the correct
clearance is left.
A 900 mm
B 600 mm
C
1
min. 150 mm
D 900 ÷ 915 mm
H 750 mm
I 450 mm
L
2
900 mm
Position of gas connection
Position of electrical connection
The anti-tip devices must be installed in
order to prevent the appliance from
tipping over.
