protection device (e.g. MCB or fuses on each phase, rated for the electrical specifications given
above).

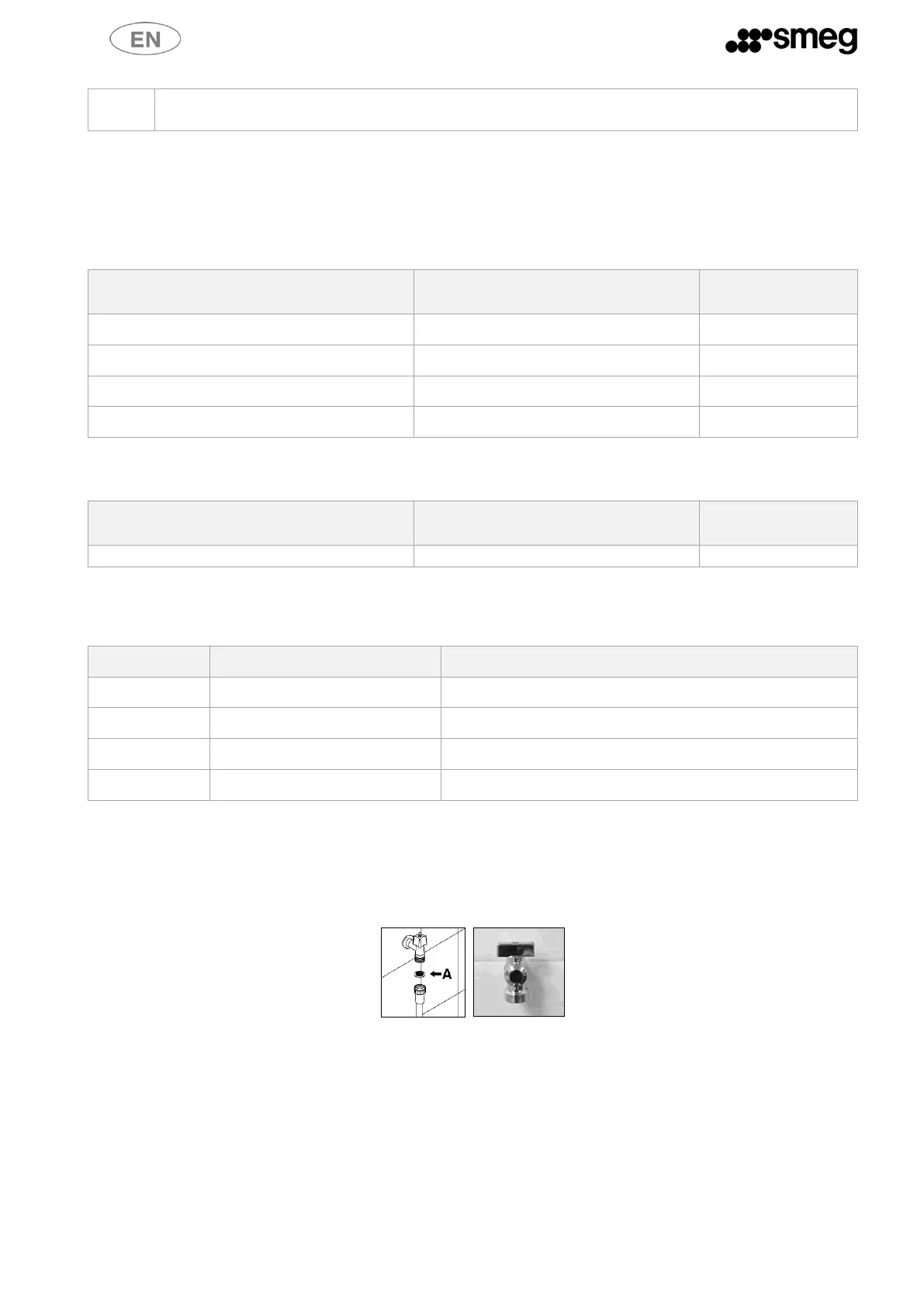

3.3 Technical characteristics (power, plumbing)
Electrical connections (see technical data plate)
Abbreviations used for the electrical connections.
Three phase/single phase version models:
POWER SUPPLY
SPECIFICATIONS
CIRCUIT BREAKER
POWER CABLE
400V 3N~ / 50Hz / 12A / 7000W
3P+N, 16A, 230/400V, 6kA
5 x 2.5mm²
230V 3~ / 50Hz / 19A / 7000W
3P, 20A, 230/400V, 6kA
4 x 2.5mm²
230V 1N~ / 50Hz / 16A / 3500W
1P+N, 20A, 230/400V, 6kA
3 x 2.5mm²
230V 1N~ / 50Hz / 12A / 2800W
1P+N, 16A, 230/400V, 4.5kA
3 x 2.5mm²
Models: SWT262 M/ SW262M (single phase versions)
POWER SUPPLY
SPECIFICATIONS
CIRCUIT BREAKER
POWER CABLE
230V 3~ / 50Hz / 30A / 7000W
1P+N, 32A, 230/400V, 6kA
3 x 6mm²
Plumbing connections
Abbreviations used for the plumbing connections.
ABBREVIATION
Type: FILL/DRAIN
WATER TYPE
CW
FILL CYCLE
Cold water hose – CW – Temperature >5°C <30°C
DW
FILL CYCLE
Hot water hose – DW – Max. temperature 60°C
d
DRAIN
Dishwasher drain hose – d
cd
DRAIN
Steam condenser drain hose - cd (where applicable)
FILL CYCLE - WATER SUPPLY FITTINGS
The dishwasher has two water supply hoses, one for the mains water supply and one for hot water.
The hoses are designed for connection to 3/4’’ BSPP threaded fittings.
Use the supplied filter, A in the figure, when connecting the end of the fill hose.
Fig. 4 – Fit the provided filters when connecting the hose
POSITION OF FILL WATER
The fill taps must be located next to the appliance, in an easily accessible position. With reference to the
following figure, the recommended dimensions are:
N.B.: to prevent blockages and damage, if the water line is new or has not been used for a long time, make sure
that the water is pure and clear before making the hookup.
