Smeg TRA90BL9 - Positioning

Installation
40
Burner and nozzle characteristics table

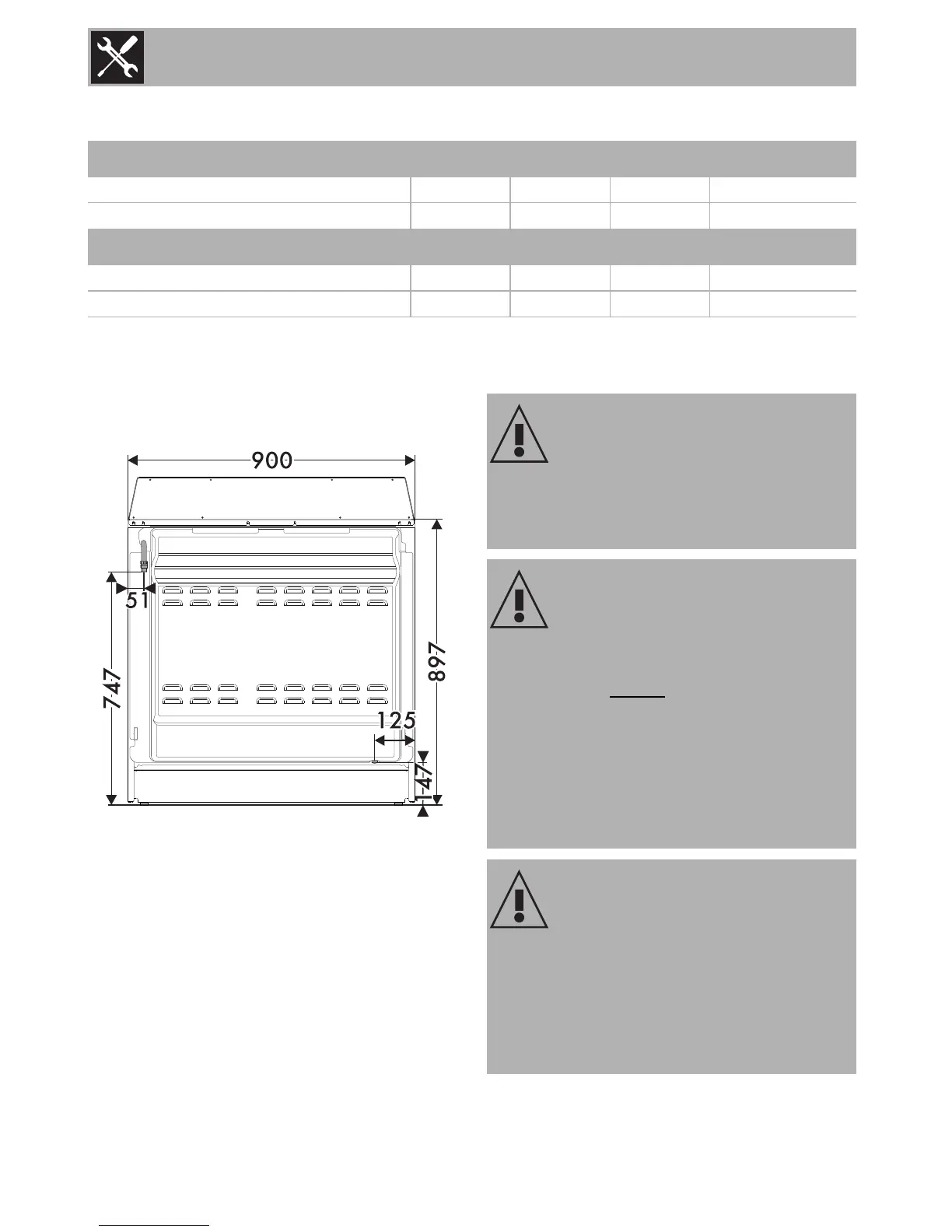

Appliance dimensions (mm)
Location of gas and electrical connection
points.
5.4 Positioning
NG 1.0 kPA AUX SR R DUAL (int + ext)
Nominal gas consumption (MJ/h)
3.9 7.5 12 18.0
Injector (1/100 mm)
90 120 155 90 + 175
ULPG 2.75 kPa AUX SR R DUAL (int + ext)
Nominal gas consumption (MJ/h)
3.9 6.3 10.8 18.0
Injector (1/100 mm)
54 68 88 50 + 100
Heavy appliance
Danger of crush injuries
• Place the appliance into the piece of
furniture with the aid of a second person.
Pressure on the open door
Risk of damages to the appliance
• When positioning the appliance during
installation,
do not use the door handle
to lift up or move this appliance.
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
Heat production during appliance
operation
Risk of fire
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (no less than
90°C).
