Smith Meter UPT - Encoder and Terminal Block Inspection

Issue/Rev. 0.7 (11/17) MN01045 • Page 5

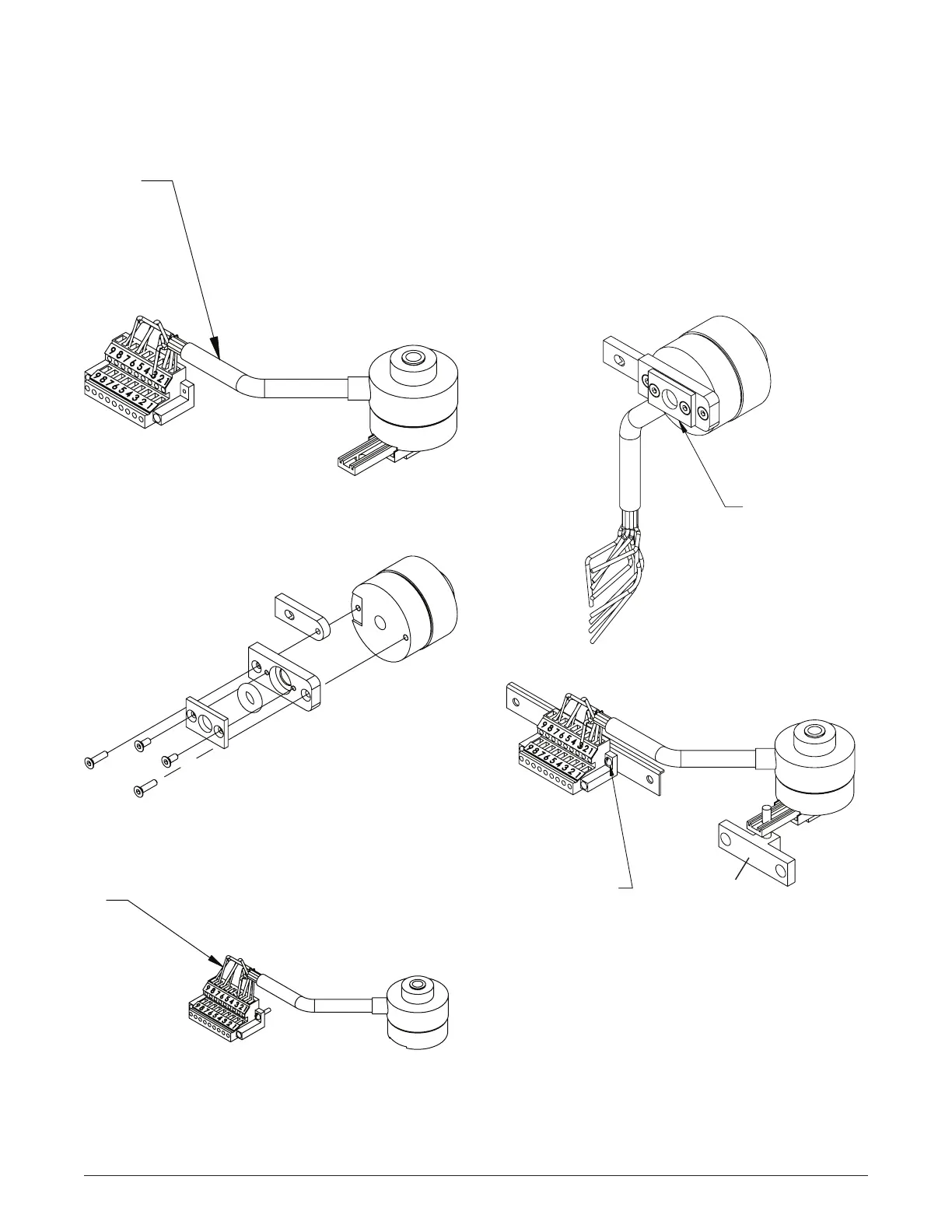

Step 5. a. Remove encoder from housing.
b. Remove longer inside screws followed
by shorter inside screws to expose the
o-ring. Inspect o-ring, replace if damaged
or cracked.
Step 5a
Step 5b
Step 6. Remove encoder wires from terminal block.
Step 7. Inspect terminal block and encoder for
damage, corrosion or wear and replace if
needed.
Step 6
Step 8. a. Re-insert o-ring, tighten cover over
o-ring, and then tighten aluminum piece
with the torque arm attached to the
encoder.
b. Connect wires to specied terminal
block numbers (see wiring diagram table
and Figure 1).
c. Insert T-Bar pin through the torque arm.
Note: Apply grease to all o-rings prior to re-installation.
Step 8a
Step 8b
Step 8c
